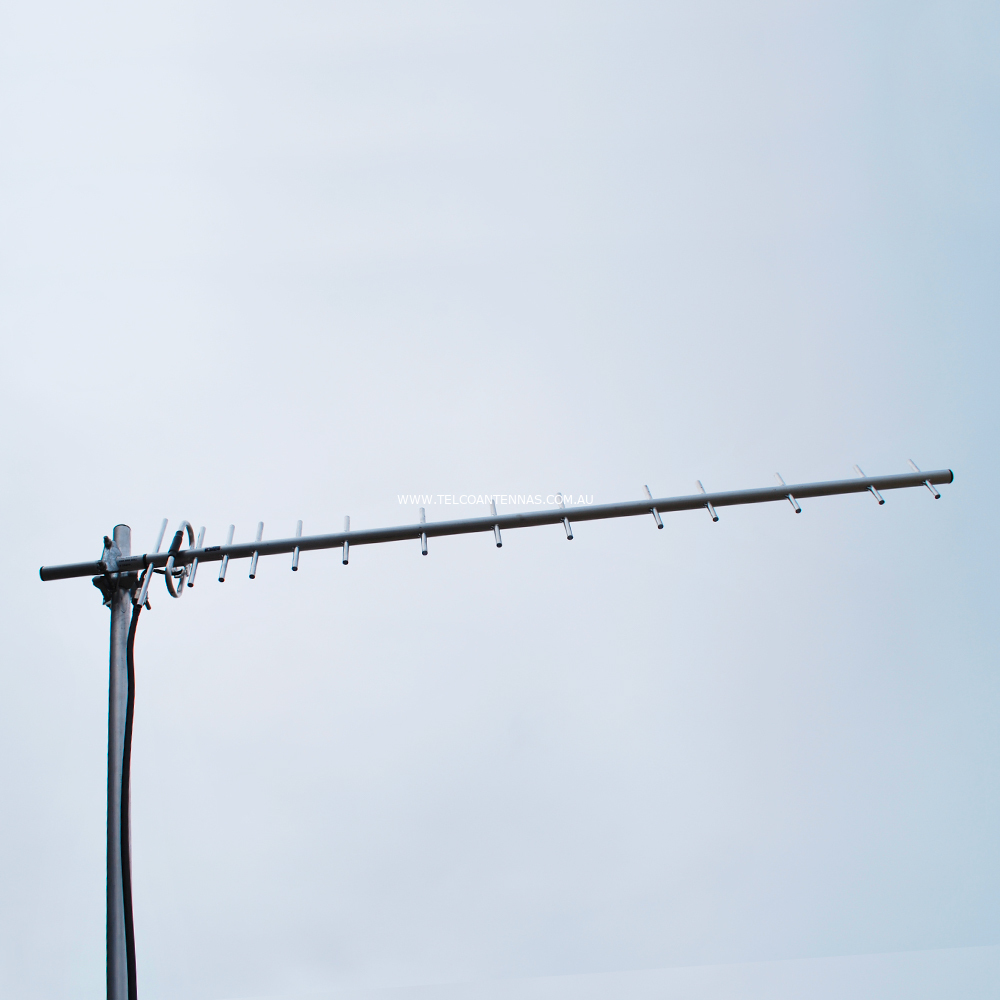

Telco 700-850MHz 14dBi Yagi Directional Antenna



Key Features



  • Covers both Telstra Next-G and 4GX

  • Fully welded construction for maximum performance and reliability

  • Narrow beamwidth & high front to back ratios effective in reducing interference

  • Short low loss cable tail with N-female connector

  • Australian manufactured and warrantied.



Usage



  • Ideal with Cel-Fi repeater systems in rural and remote areas

  • Can be configured in stacks or bays for higher gain applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
14dBi
Optus 4G+ (700MHz)
compatible
14dBi
Telstra Next-G™ (850MHz)
compatible
14dBi
All other networks
not compatible
-





Electrical Specifications

  • Frequency Range: 698-890MHz

  • Input Impedance: 50Ω

  • VSWR: <1.8:1

  • Vertical Beamwidth: 37°

  • Horisontal Beamwidth: 43°

  • Front to Back Ratio: >17dB

  • Radiation: Directional

  • Maximum Power: 100Watts



Mechanical/Environmental

  • Construction: Fully-welded corrosion resistant round boom aluminium

  • Cable: 500mm RG59

  • Connector: N Female

  • Weight: 750g

  • Dimensions: 1550mm (L)



Specification Sheet

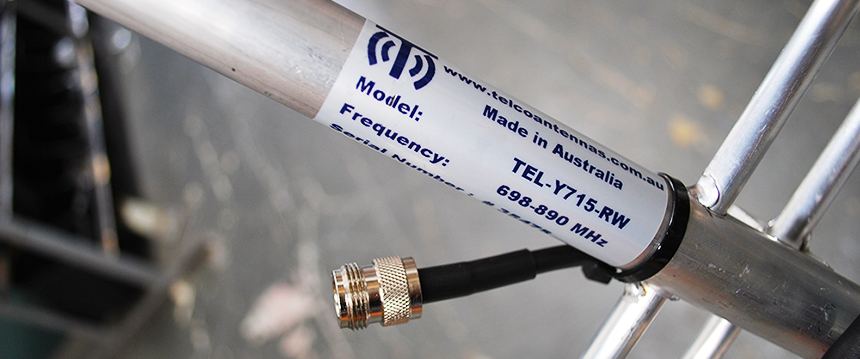

(TEL-Y715-RW)

SKU TEL-Y715-RW
Brand Telco Antennas
Shipping Weight 0.0450kg
Shipping Width 0.230m
Shipping Height 0.900m
Shipping Length 1.560m
Shipping Cubic 0.322920000m3
