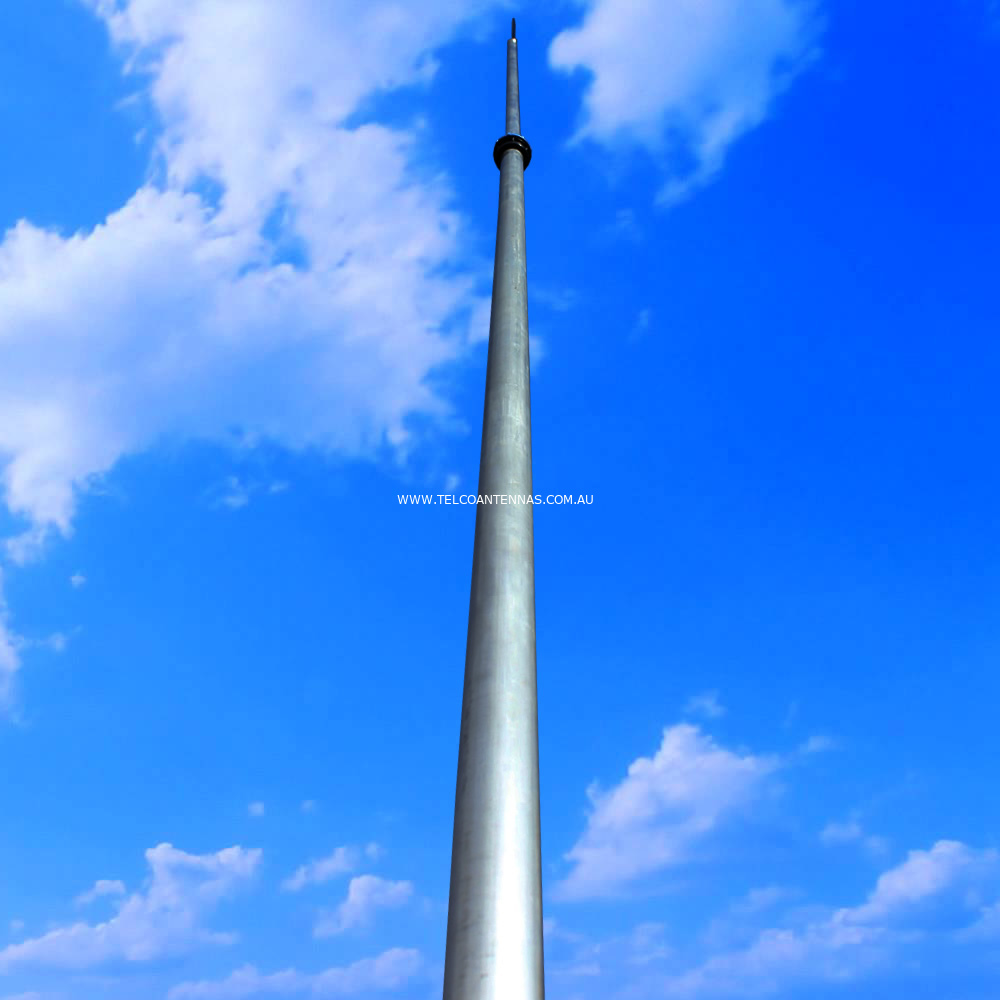

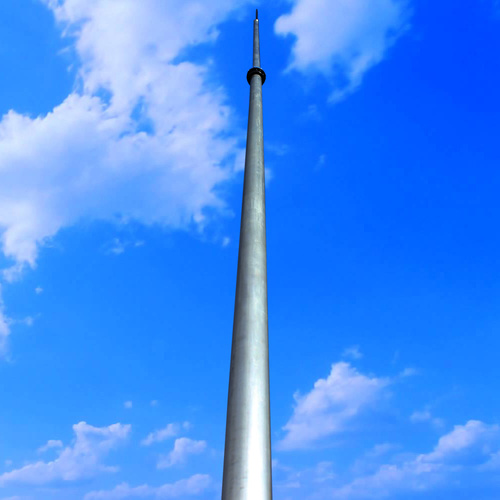

3.8m or 5.7m Light Telescopic Aluminium Mast


Key Features


  • 3mm thick aluminium construction

  • Magnetic mounting brackets available

  • Tripod mount available

  • High quality Australian made product.




  • We specifically designed this telescopic mast system at the request of major mining and energy companies

  • It is incredibly durable and has industrial grade polypropylene screw clamps to secure each telescopic section

  • This mast design is also available in a heavier duty version for a large headload of RF equipment

  • Constructed using larger circular hollow section with thicker walls for improved strength

  • With a choice of 3.8m or 5.7m, our system is suitable for a wide range of installations, ranging from the adventurer to remote communication trailers

  • The mast is comprised of 3 sections:

    • Base - 40 x 3 Aluminium CHS

    • Mid - 32 x 3 Aluminium CHS

    • Top - 25 x 1.5 Aluminium CHS

  • This mast is utilised in a number of our packages including:
  • This mast can also be installed using a set of Upper and Lower magnetic mounts allowing for even more fexibility.


Available in two models


  • You can choose your desired length from the drop-down box at the top of the page.
    • 3.8 meter 2-piece telescopic mast system - collapsed size is 1.8m (base diameter 32mm, top Diameter 25mm)

    • 5.7 meter 3-piece telescopic mast system - collapsed size is 2m (base diameter 40mm, top Diameter 25mm).


A heads up!


Special Delivery Information:

  • This product can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box.

  • Please provide an address where someone will be present to sign for the package.

Please contact us for lead times for masts and towers.


Shipping Weight 6.0000kg
Shipping Width 0.070m
Shipping Height 2.300m
Shipping Length 0.070m
Shipping Cubic 0.011270000m3
