Heavy Duty Serviceable Aluminium Guyed Lattice Tower (400mm Face) up to 30m
Enquire within
SKU: TF-RM-HDALT
Price is indicative only. Request a quote to price your project.

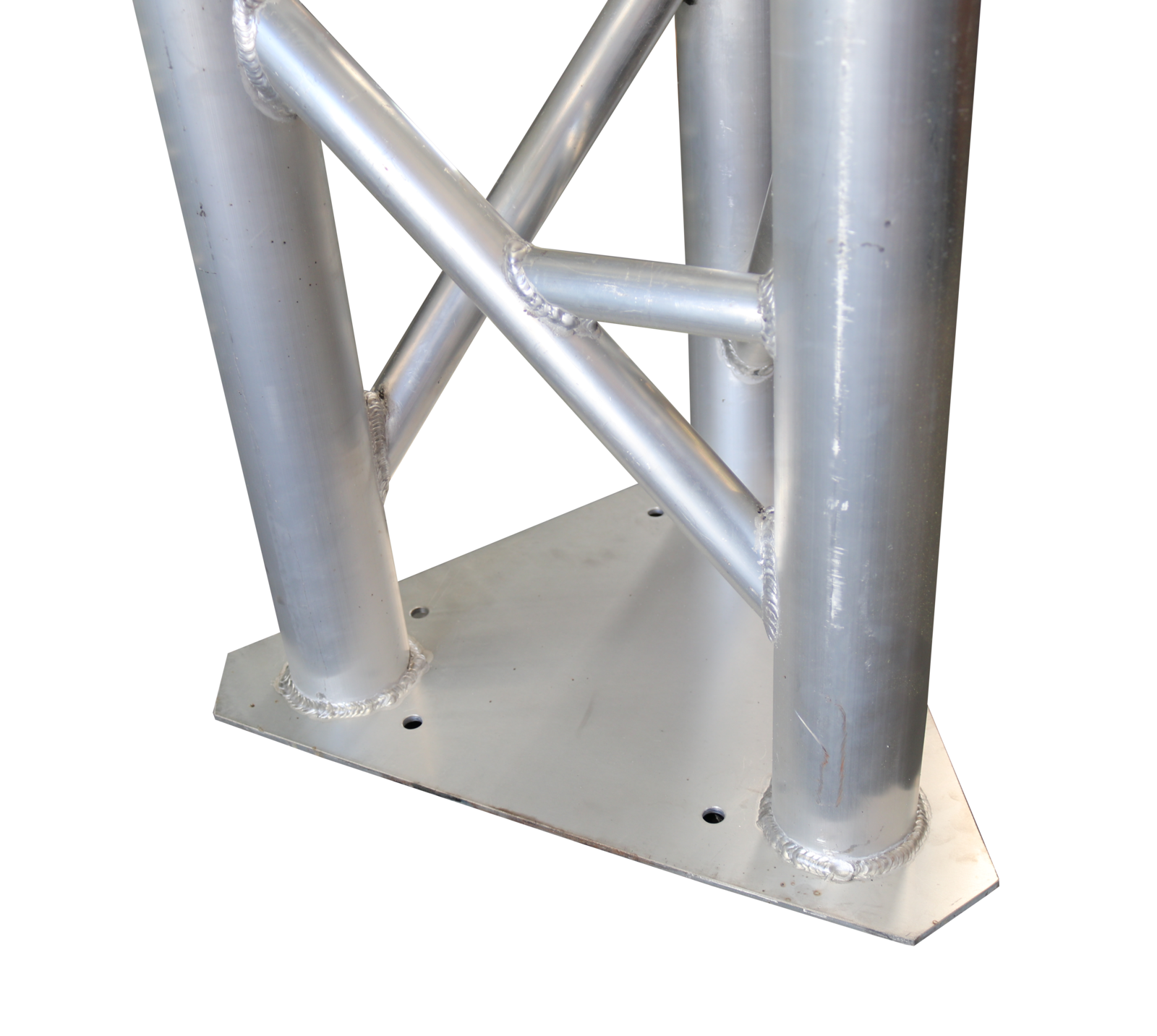

Heavy Duty Guyed Serviceable Aluminium Lattice Tower (400mm Faced) - Modular, 3m Sections up to 30m
Please email sales@telcoantennas.com.au for pricing
Key Features
-
Aluminium lightweight design
-
Pre-designed footings to suit most soil conditions
-

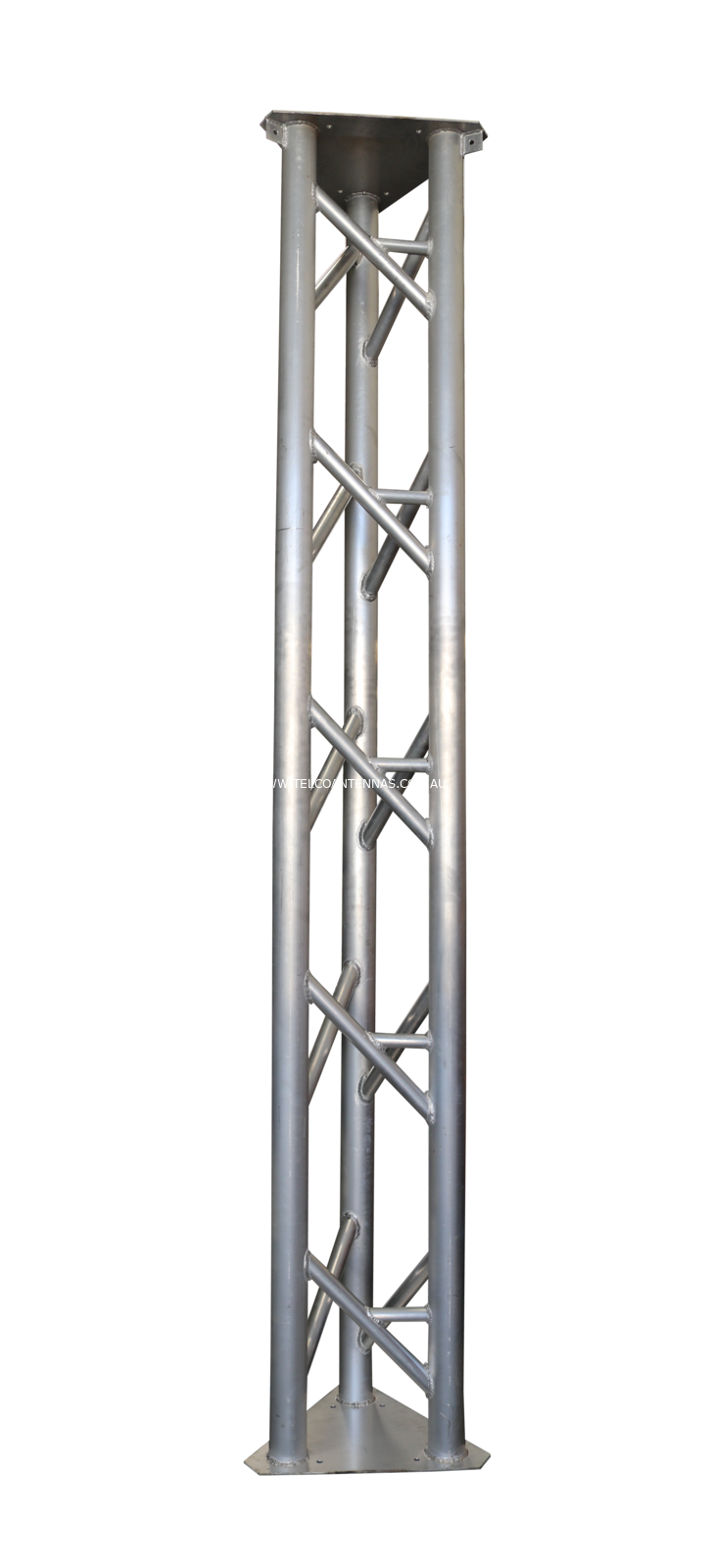

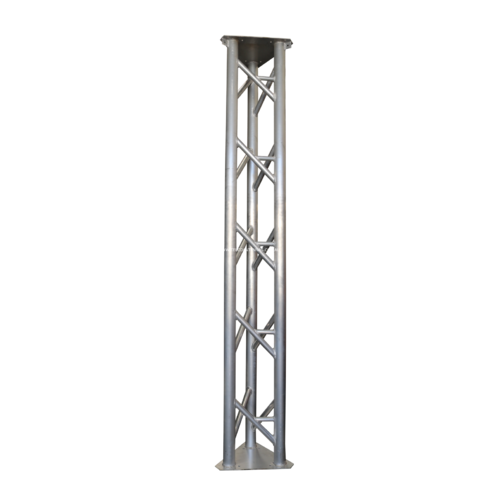

3metre modular sections for easy transport
-
Climbing access to service/install equipment
-
Can be erected with the use of a gin pole system
-
Regular production runs ensure we have a number of sections in stock and are able to supply components quickly
-

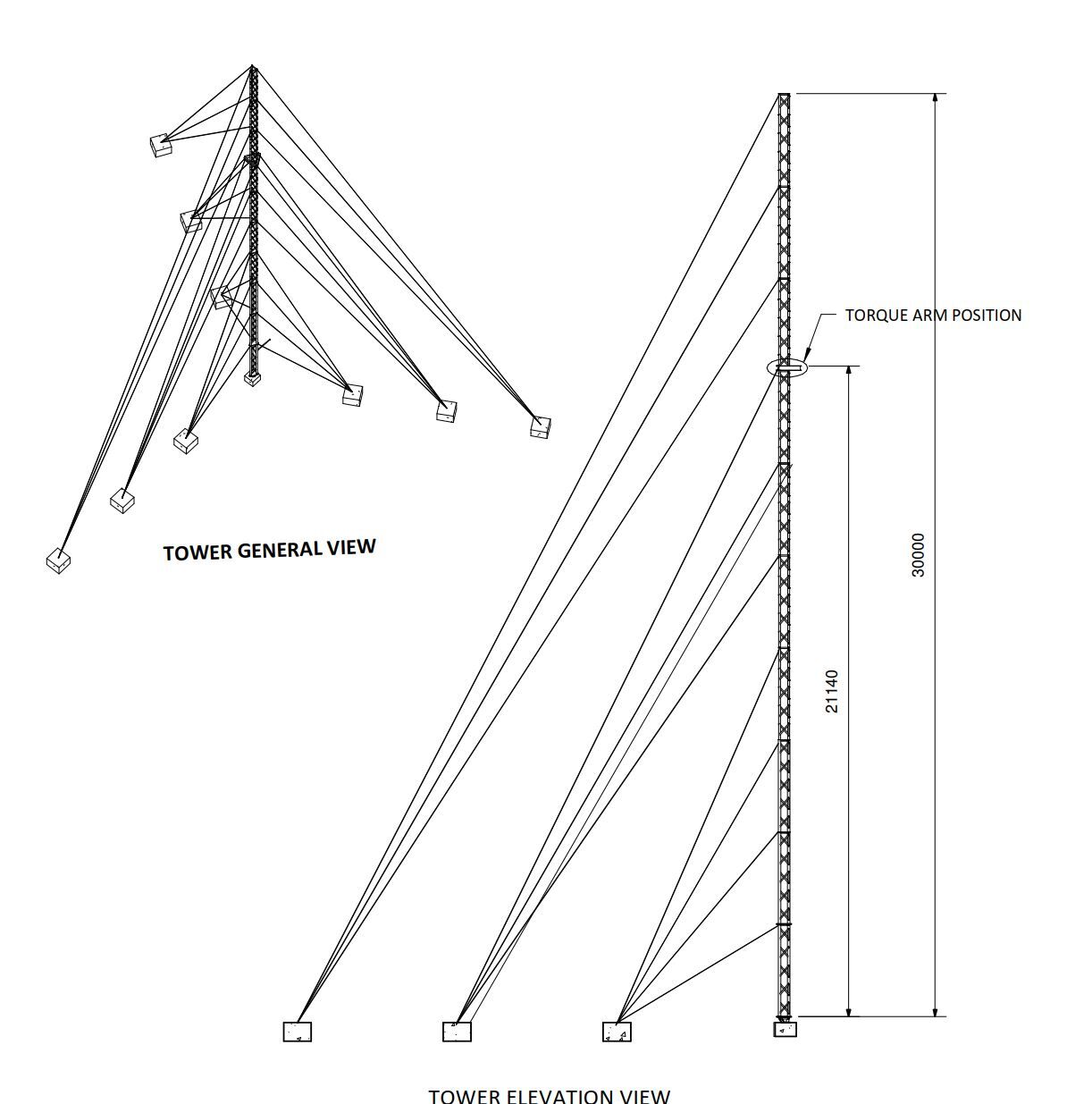

This lattice tower is engineer certified to support directional dish antennas up to 900mm in diameter at 30meters in wind region C.
Usage
- Modular design that is easily adapted to suit applications in regards to height.
Specifications
-
Aluminium fabrication in accordance to AS1664
-
Aluminium welding in accordance to AS1665
-
7/16" Zinc or Stainless Steel bolts in accordance to ISO 3506 U.N.O.
-

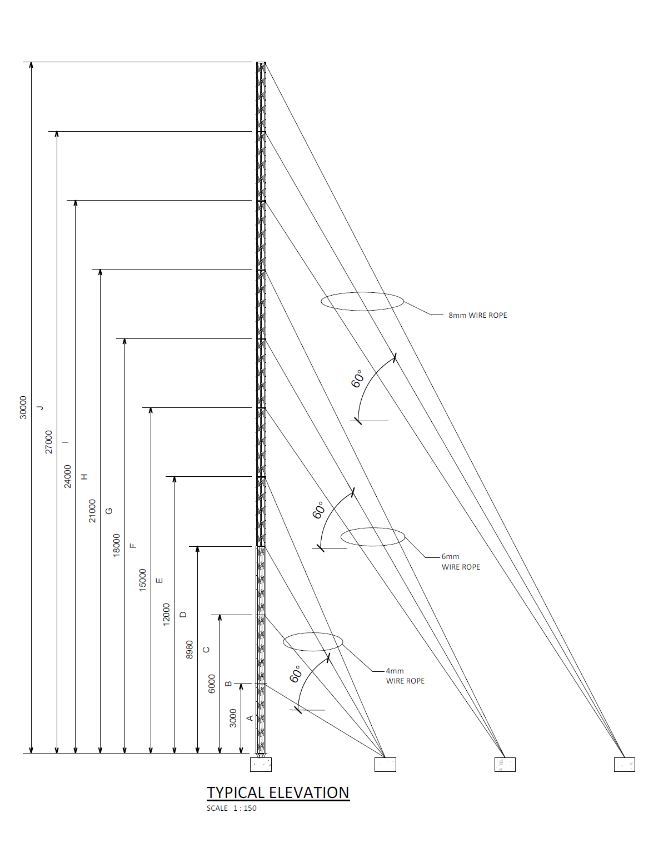

Guy cables in accordance to AS3569, Class 7x19 Grade 2070
-
Guy wire preload tension to 1.0 kN
-
Cable joins and attachments in accordance to AS2579
-
Structure classification per AS3995 is Type II
Engineer approved recommendation
- Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.
-
We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.
Please contact us for:
-
maximum dish size, heights and bracing information for your application
-
orders of multiple towers, trade pricing, lead times, and to discuss customising for a specific project.
(TF-RM-HDALT)
SKU | TF-RM-HDALT |
Brand | 3meters - 30meters |
Shipping Weight | 5.0000kg |
Shipping Width | 0.400m |
Shipping Height | 3.000m |
Shipping Length | 0.400m |
Shipping Cubic | 0.480000000m3 |
