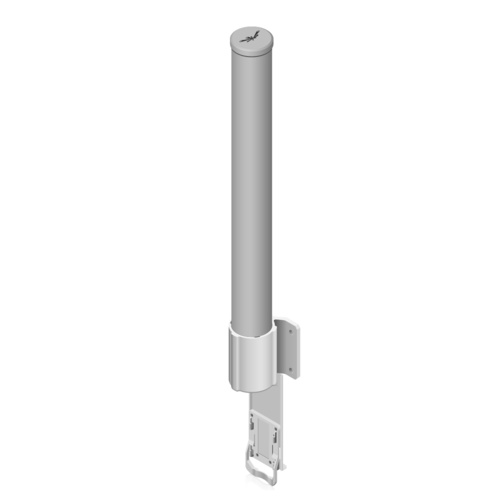

Ubiquiti airMAX 2.4GHz (M2) 10dBi Omnidirectional Antenna


Key Features


  • Carrier class construction

  • Low form factor, low wind-load design

  • 2x2 MIMO 2.4GHz (Nominal, Dual Vertical Pol)

  • Designed specifically for airMAX Rocket M2 and UniFi Outdoor AP.




  • AirMAX Omni is a Carrier Class 2x2 MIMO Omnidirectional Antenna designed to seamlessly integrate with Rocket M2 radios

  • Pair the Rocket M2’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation - this seamless integration gives network architects unparalleled flexibility and convenience

  • AirMAX omnidirectional antennas are most commonly coupled with a Rocket M2 in a PtMP network - connecting to a number of surrounding buildings via their NanoStation M2 or NanoBeam M2 stations

  • See the below diagram for just one of many possibilities - alternatively connect the unit into a UniFi Outdoor Access Point to provide an industrial strength wide-area access point.


rocket m5 omnidirectional point to multipoint building network



Specificatiions / Frequency


Network Compatibility
AirMAX M2 2x2 MIMO (2400MHz)


Electrical Specifications


  • Frequency Range: 2350-2550MHz

  • Input Impedance: 50Ω

  • VSWR: <1.7:1

  • Polarisation: Dual Linear Vertical

  • Vertical Beamwidth: 12°

  • Downtilt: 4°

  • Radiation: Omnidirectional


Mechanical/Environmental Specifications


  • Cable: 2x RP-SMA jumper cables included

  • Connector: 2x RP-SMA Female

  • Wind Rating: 200km/hr

  • Weight: 2.1kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 1030 x 122 x 84mm (L x W x H)

  • EN 302 326 DN2


Read More




Need to order in bulk? Please contact us for an accurate shipping quote.


Brand Ubiquiti
Shipping Weight 4.0000kg
Shipping Width 0.160m
Shipping Height 0.120m
Shipping Length 1.520m
Shipping Cubic 0.029184000m3
