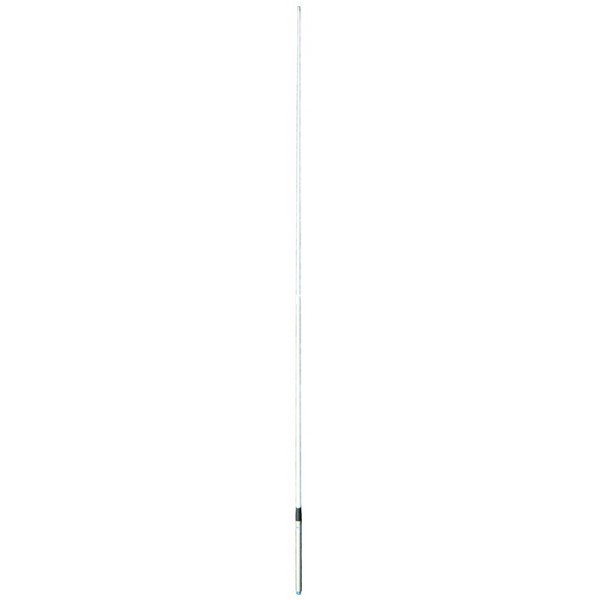

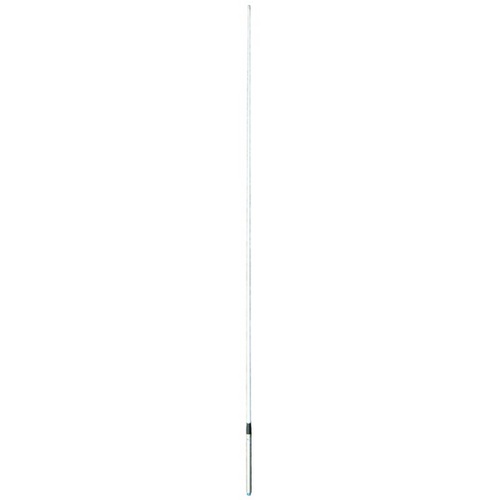

ZCG Scalar ZN2-77-09 UHF CB Radio Base Station Antenna


Key Features


  • All white fiberglass construction

  • Broadcast grade

  • Stainless steel mount tube

  • Australian made.




  • The ZN2-77-09 omnidirectional collinear is perfect for use as a UHF CB radio base station antenna

  • Constructed with precision 1/2 wave transposed elements to achieve its high 12 dBi gain, and is mounted on a marine grade aluminum mounting tube

  • Standing 3.3 metres tall and factory tuned for 477 MHz, the ZN2-77-06 can be mounted to a mast, building or other structure

  • An N-Female connector rated for up to 100 watts input power is located at the base of the mount tube

  • All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments

  • These antennas will deliver reliable performance for many years.

  • Please Note all items over 3m require manual freight calculation


Specifications / Frequency


Network Compatibility
UHF CB (477MHz)


Electrical Specifications


  • Frequency Range: 477MHz (Citizen Band UHF)

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 100Watts


Mechanical/Environmental Specifications


  • Construction: White fibreglass radome, marine grade aluminium mount tube

  • Cable: none supplied

  • Connector: N Female

  • Temperature: -40°C +70°C

  • Weight: 1.75kg

  • Height: 3.3m

  • Mounting: 2 stainless parallel clamps (not supplied)







 N Flange panel mount connector

N Female Connector [pictured]
  • This antenna has an integrated N Female connector at the base of the mounting tube

  • Cable not included.

Please contact us if you would like a shorter length of cable, or a different connector and we will customise this antenna for you.

A heads up!

over-size item symbol sign

  • Special Delivery Information: This product is over 3300mm long and can only be delivered by a courier (not Australia Post) so we cannot accept a PO Box

  • Please provide an address where someone will be present to sign for the package. This item cannot be sent internationally.

Read More

zcg scalar antennas logo






SKU ZN2-77-09-AC
Brand ZCG
Shipping Weight 5.5000kg
Shipping Width 0.200m
Shipping Height 3.500m
Shipping Length 0.200m
Shipping Cubic 0.140000000m3
