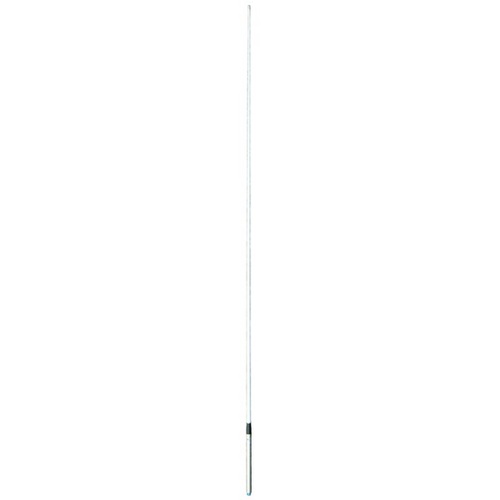

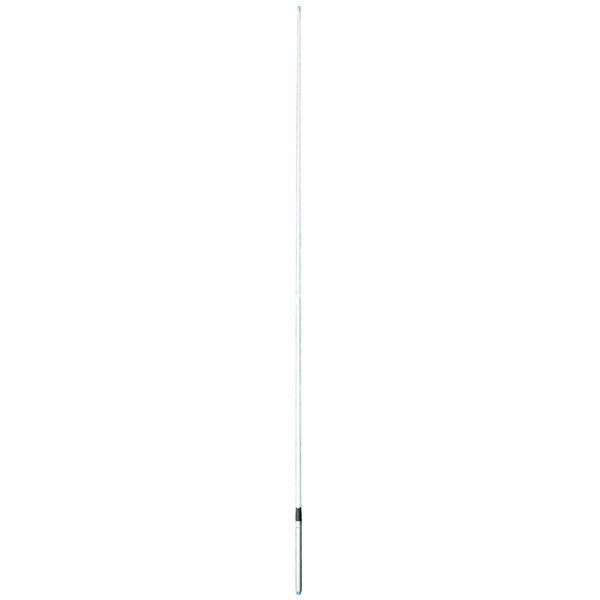

ZCG Scalar ZN2-77-06 UHF CB Radio Base Station Antenna


Key Features


  • All white fiberglass construction

  • Stainless steel mount tube

  • Australian made.




  • The ZN2-77-06 omnidirectional collinear is perfect for use as a UHF CB radio base station antenna

  • Constructed with aluminum internals and a machined marine grade aluminum mounting tube, the antenna delivers high 8.1 dBi gain

  • This antenna is often used as a fixed base-station antenna on machinery, temporary work sites, mining accommodation, and more

  • Standing 2.5 metres tall and factory tuned for 477 MHz, the ZN2-77-06 can be mounted to a mast, building or other structure

  • An N-Female connector rated for up to 100 watts input power is located at the base of the mount tube

  • All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments

  • These antennas will deliver reliable performance for many years.


Specifications / Frequency


Network Compatibility
UHF CB (477MHz)


Electrical Specifications


  • Frequency Range: 477MHz (Citizen Band UHF)

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 100Watts


Mechanical/Environmental Specifications


  • Construction: White fibreglass radome, marine grade aluminium mount tube

  • Cable: none supplied

  • Connector: N Female

  • Temperature: -40°C +70°C

  • Weight: 1.75kg

  • Height: 2.5m

  • Mounting: 2 parallel clamps (not supplied)






 N Flange panel mount connector



N Female Connector [pictured]



  • This antenna has an integrated N Female connector at the base of the mounting tube. There is no cable supplied
  • Please contact us if you would like a shorter length of cable, or a different connector, and we will customise this antenna for you.



A heads up!




  • Special Delivery Information: This product is over 1100mm long and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box

  • Please provide an address where someone will be present to sign for the package.



Read More





zcg scalar antennas logo




SKU ZN2-77-06-AC
Brand ZCG
Shipping Weight 0.0450kg
Shipping Width 0.100m
Shipping Height 2.500m
Shipping Length 0.100m
Shipping Cubic 0.025000000m3
