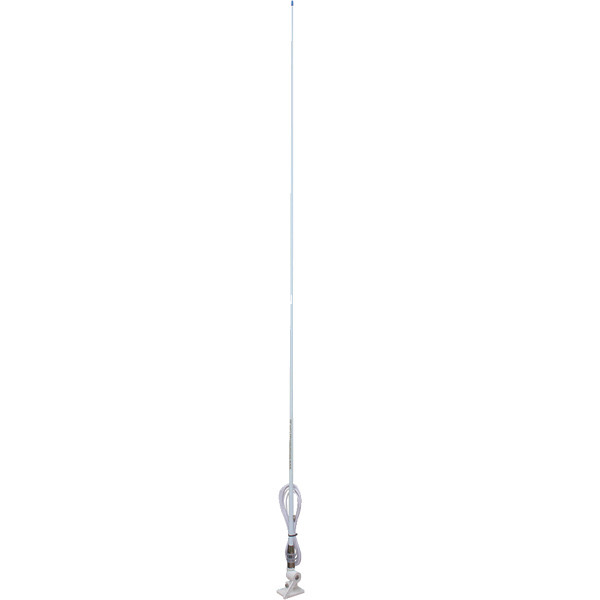

ZCG Scalar 2.2m Marine VHF Antenna



Key Features



  • 156-162MHz

  • 4.5m white RG58 cable

  • 2.1dBi gain

  • Full chromed brass ferrule

  • Supplied with toughened plastic MM1 Marine Deck Mount

  • All white fiberglass construction

  • Tuned to cover the full VHF Marine Band 156 to 162 MHz, these ground independent deck mount antennas are a single piece construction and match the height and appearance of other models in the marine range

  • The MM1 folding deck mount supplied as standard is constructed from toughened plastic

  • This base folds down in two directions and also swivels in the opposite plane by loosening the stainless steel pivot bolt.

  • This versatility allows the antenna to be mounted in a variety of positions on any flat surface and at any angle using four screws or bolts.

  • 100% Australian made.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 156-162MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 50Watts.



Mechanical/Environmental Specifications



  • Construction: Single piece white fibreglass tapered radome, internal copper radiator, chromed brass ferrule with 1"–14 UNS female thread

  • Cable: 4.5m White RG58 coaxial

  • Connector: UHF connector supplied (unterminated)

  • Length: 2200mm

  • Weight: 1kg.



Connection



  • This antenna has a 4.5m cable that has been left unterminated for easy installation

  • The antenna is supplied with a UHF Male (known as a PL259) connector for crimping once the cable has been run during installation.



UHF Plug connector



UHF Male Connector [pictured]



Important



  • This product is over 2m in length and must be sent by specialist freight companies

  • Understandably a 2m long cardboard tube can be easily damaged so this product is shipped in a custom made PVC enclosure

  • Due to the costs incurred, shipping of this item is expensive, irrespective of whether we're shipping it to Sydney metro, or to Canada

  • Please contact us if you'd like a shorter length of cable, or a different connector so we can customise this antenna for you.



Read More





zcg scalar antennas logo































































































































(ZM21-VHF)

SKU ZM21-VHF
Brand ZCG
Shipping Weight 2.4000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 2.200m
Shipping Cubic 0.022000000m3
