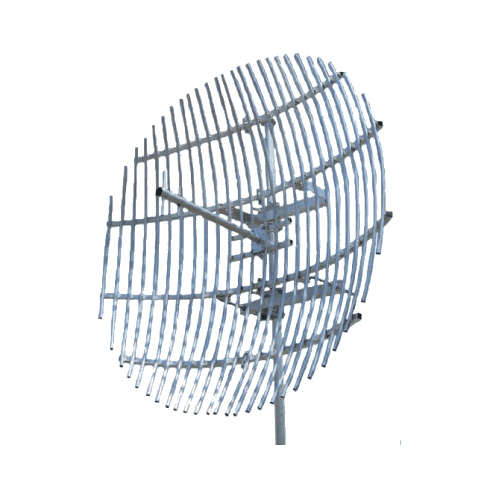

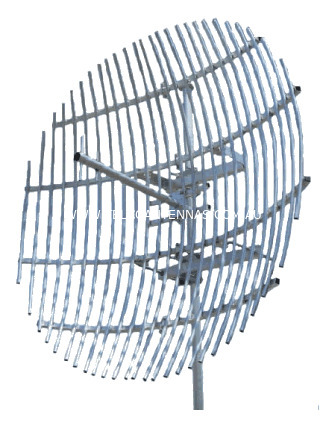

ZCG Scalar MGP-6850N 22dBi Grid Antenna


Key Features


  • Industrial/Carrier/Broadcast grade construction

  • High 28 dB front-to-back ratio

  • 1.8m diameter (shipped in split sections)

  • Meets ACMA antenna specifications for studio to transmitter link (STL) applications

  • ACMA Certified Antenna ID No: 13459

  • Designed and manufactured by ZCG Scalar in Australia.




  • The MGP-6850N grid pack provides a broad bandwidth across the full Telstra Next-G 850MHz and Optus 900MHz frequency range 820 to 960 MHz at better than 1.5:1 VSWR with 22.2 dBi gain at middle of the band

  • The highly directional narrow radiation pattern envelope (RPE) and high side-lobe suppression make this grid pack a perfect choice for use in STL applications

  • Broadcast grade, this antenna is manufactured per application with a typical leadtime of 20 days

  • An N-female connector rated for up to 100 watts input power is located at the base of the end launcher

  • The antenna is supplied in semi-kit form and requires assembly

  • The kit includes U-bolts for mounting the grid pack to a round pole between 75 mm and 115 mm in diameter.


Specifications / Frequency


Network Compatibility
Telstra Next-G™ (850MHz)
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.


Electrical Specifications


  • Frequency Range: 820-960MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (>15dB RL)

  • Vertical Beamwidth: 12 degrees

  • Horizontal Beamwidth: 10 degrees

  • Front to Back Ratio: >28dB

  • Cross Polar XPD: >28dB

  • Maximum Power: 100Watts


Mechanical/Environmental Specifications


  • Construction: Aluminium, hand assembled

  • Cable: None

  • Connector: Integrated N Female

  • Mount: Integrated + U-Bolts 75-115mm OD mast

  • Wind rating: 160km/hr (1.12kN)

  • Weight: 19kg

  • Assembled Dimensions: 1850 x 1850mm

  • Dimensions: 1900 x 1000 x 500mm (L x W x H)


Read More



zcg scalar logo


Brand ZCG
Shipping Weight 25.0000kg
Shipping Width 1.000m
Shipping Height 1.900m
Shipping Length 0.600m
Shipping Cubic 1.140000000m3
