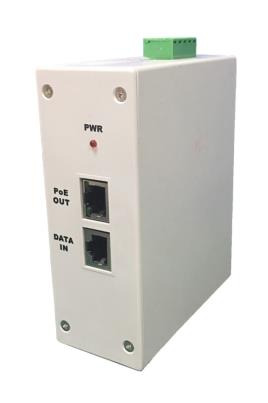

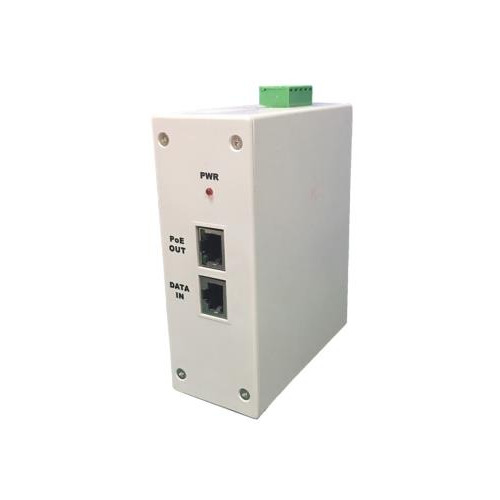

DC-DC 802.3bt Gigabit PoE Injector



Key Features



  • Suits solar power systems

  • 10-60VDC systems

  • 56VDC 1.28A PoE output

  • Short Circuit, Over Current and Reverse/Over Voltage Protection

  • High temperature operation.



Usage



  • MSTronic's series of DC to DC converters are a low cost and high reliability solution for those requiring 56VDC Power over Ethernet voltage from an 12V or 24V or 48V battery systems

  • They have an integrated POE injector to apply 56VDC to Ethernet cable on all 8 pairs

  • They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack



Specifications



Electrical Specifications

  • Input voltage: 10 to 60V DC

  • Input current:

    • 8.38A @10Vin at full load
    • 7.0A @12Vin at full load
    • 3.48A @24Vin at full load
    • 1.75A @48Vin at full load
    • 1.40A @60Vin at full load
  • Output voltage: + 56V

  • Maximum load: 1.28A

  • Min load: 0A

  • Power: 71.3W Max

  • Load regular percentage: 5%

  • Line regular percentage: 1%

  • Ripple percentage: 1%

  • Noise percentage: 1%

  • Ripple and noise bandwidth: from DC to 20MHz Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity

  • Efficiency: 86% min at 24V DC, input at F.L

  • Output Short GND Terminal will not damage the Power Supply and will auto-Reset

  • Over Current : 110% ~ 120% @all DCV Input F.L

  • Input polarity Reverse Protection------ will not damage the Power Supply, NO work.

  • Input Over low Voltage Protection : 8V ~ 9V Turn-off Input



Mechanical/Environmental Specifications



  • Construction: ABS Plastic

  • Operating temperature: -40 to 70° Celsius

  • Storage temperature: -40 to 85° Celsius

  • Operating humidity: 5 to 90%

  • Cooling: Free air

  • Dimension: 46 x 125 x 102 mm (W*H*D)



Read More





(DIN-DC75-56DBN)

SKU DIN-DC75-56DBN
Shipping Weight 0.1700kg
Shipping Width 0.500m
Shipping Height 0.300m
Shipping Length 0.150m
Shipping Cubic 0.022500000m3
