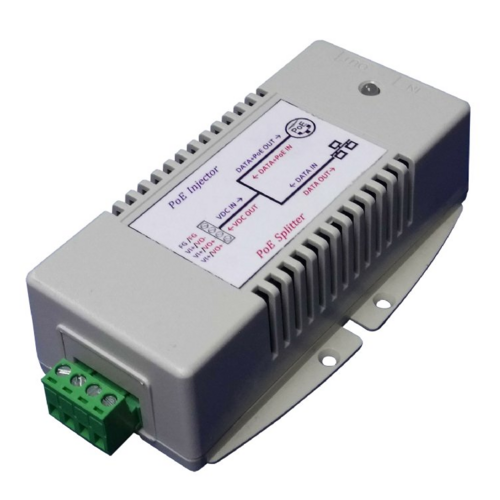

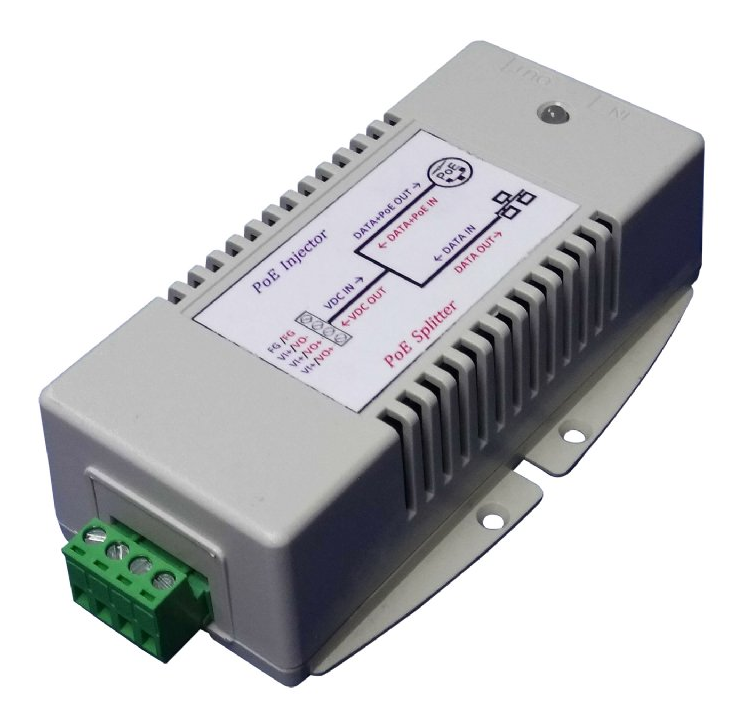

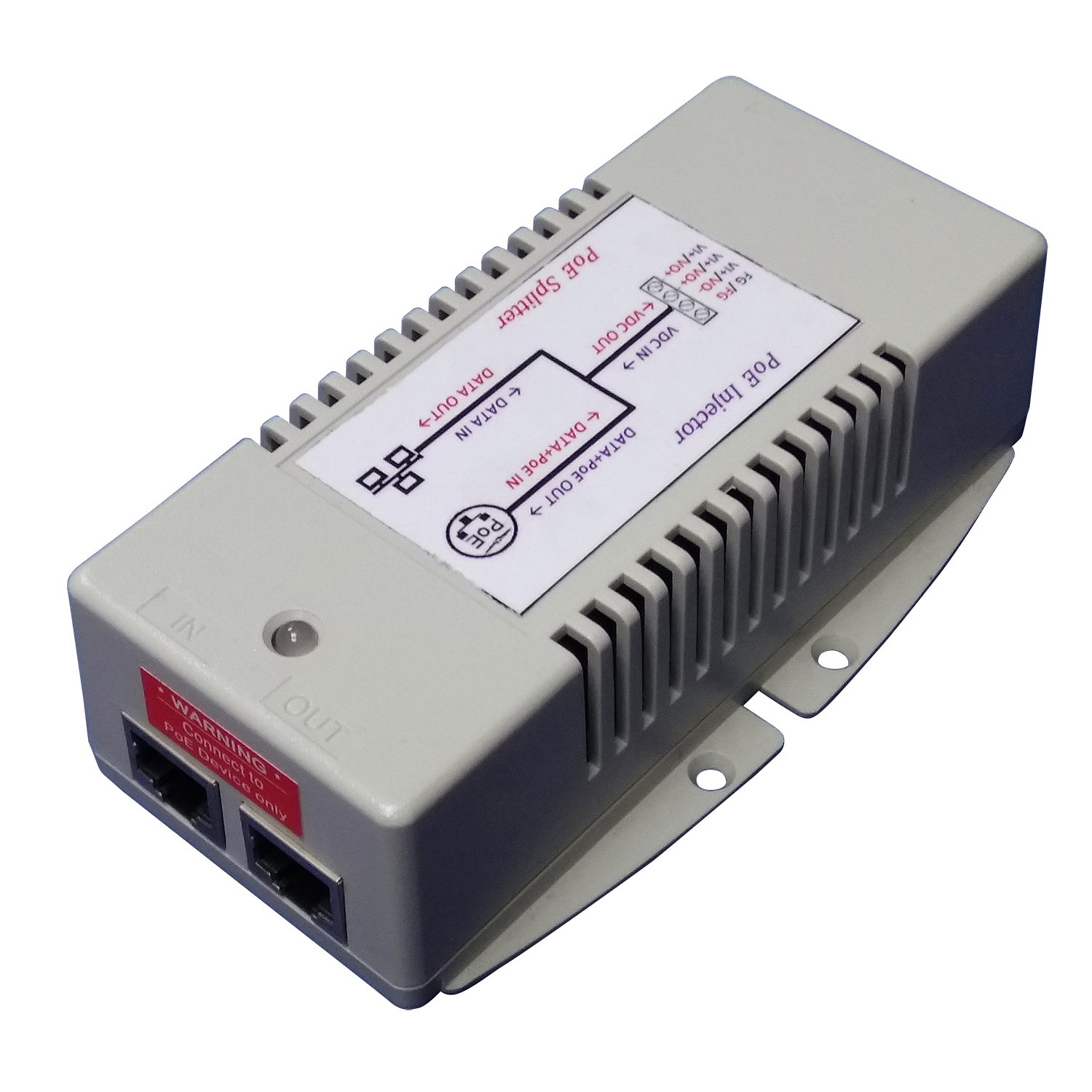

Gigabit Passive Power over Ethernet Splitter Injector - DC-DC



Key Features

  • PoE Splitter

  • Suits solar power systems

  • 12VDC to 48VDC systems

  • Vout=Vin

  • 10/100/GigE

  • Max load: 1.75A



Usage



  • Split your DC Input Across 2 PoE Powered Devices

  • Perfect for Standalone Wireless Infrasturcture

  • A metal enclosure model is available for industrial applications

  • They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack

  • They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).



Specifications



Electrical Specifications

  • Input voltage: 12 to 48V DC

  • Output voltage and current:  Vout=Vin

  • Maximum load: 1.75A

  • Min load: 0.01A



Mechanical/Environmental Specifications

  • Construction: ABS Plastic

  • Operating temperature: -40 to 70°Celsius

  • Storage temperature: -40 to 85°Celsius

  • Operating humidity: 5 to 90%

  • Cooling: Free air

  • Dimension: 125*72*38mm (L x W x H)

  • RJ45 Connection and pin out: @1000MBASE

  • RJ-45 PoE input (data only) and RJ-45 PoE output (data and power)



Read More





(MIT-901G)

SKU MIT-901G
Shipping Weight 0.1700kg
Shipping Width 0.500m
Shipping Height 0.300m
Shipping Length 0.150m
Shipping Cubic 0.022500000m3
