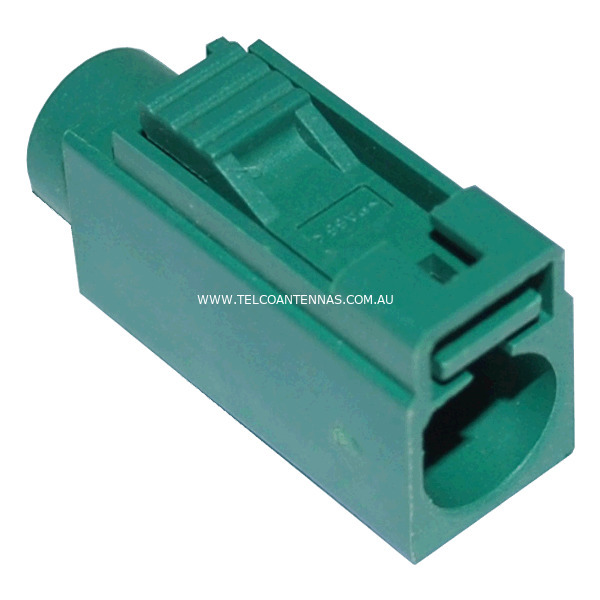

FAKRA SMB Jack: E-Code, Leaf Green (RAL 6002)



Key Features



  • FAKRA SMB socket complete with housing, pin, body, ferrule and heatshrink.



Usage



  • Utilising a modified metal SMB connector embedded within a plastic housing that can be used with multiple color codes for easy identification

  • FAKRA connectors perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.



Technologies supported



  • AM/FM Radio

  • Satellite Radio

  • GPS (Global Positioning System)

  • Cellular/PCS (Personal Communications Service)

  • Bluetooth

  • Wireless Remote

  • Vehicle Controls

  • WiFi



FAKRA Generation 1.0 & 2.0


fakra generation diagram



Generation 1.0



  • Utilises a modified metal SMB connector embedded within a plastic housing unit for ease of identification and assembly

  • These plastic housings are visually and mechanically coded with keyed tooling to eliminate assembly errors

  • Standard FAKRA connectors perform up to 6 GHz and meet the electrical, mechanical and environmental standards of the automotive industry

  • Generation 1.0 typically features five separate component parts.



Generation 2.0



  • Offers reduced installation costs via a pre-assembled housing unit

  • This pre-assembled housing eliminates two loose components and their associated assembly and handling costs

  • Due to this component reduction, Generation 2.0 features three separate components to install versus Generation 1.0’s five separate components.


fakra keying options
fakra colour coding diagram



Specifications / Frequency



Electrical Specifications



  • Impedance: 50Ω nominal

  • Frequency Range: DC - 6 GHz (optimized for DC - 4 GHz)

  • V.S.W.R: DC - 2 GHz: <1.40 - 2 GHz - 4 GHz: <1.50

  • Insertion Loss: < 0.3 dB max from DC - 3 GHz

  • Insulation Resistance: 1000 M Ω min

  • Contact Resistance (Centre + Outer contact) < 40 mΩ

  • Dielectric Withstanding Voltage at sea level: > 800 VRMS (Interface only; may be cable limited)



Mechanical/Environmental Specifications



  • Durability (matings): 100 min

  • Plastic Housing - Engagement Force: < 40 N (Single FAKRA)

  • Plastic Housing - Disengagement Force: > 35 N (Single FAKRA)

  • Cable Retention Force: > 110 N

  • Coding: 14 mechanical and coloured codings

  • Interface: USCAR-18, DIN

  • Temperature Range (Operating): -40 / +100° C

  • Thermal Shock: MIL-STD-202, Method 107, Cond B (-55 / +125° C) or USCAR-2, para 5.6.1

  • Vibration: MIL-STD-202, Method 204, Cond B; (15g) or USCAR-2, para 5.4.6

  • Shock: MIL-STD-202, Method 213, Cond B (75g, 6 ms, 1/2 sine) or USCAR-2, para 5.4.6



Materials/Plating Specifications



  • Plastic Housing:  Jacks: Nylon, PBT or PPE - In-line plugs: Nylon or PBT - PCB plugs: Nylon

  • Secondary Locking Clip: (if applicable) PBT

  • Center Contact: Jack: Beryllium Copper or Phosphor Bronze - Plug: Brass or Phosphor Bronze

  • Body: Brass, Zinc Alloy

  • Retainer Ring (if applicable): Beryllium Copper

  • Ferrule: Copper Alloy

  • Insulator: TFE or TPX

  • Center Contact: Gold

  • Body: Cable types Nickel - Solder types Nickel, Gold, Tin

  • Ferrule: Nickel



Read More



(FAKRA-SMB-JE-6002)

SKU FAKRA-SMB-JE-6002
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
