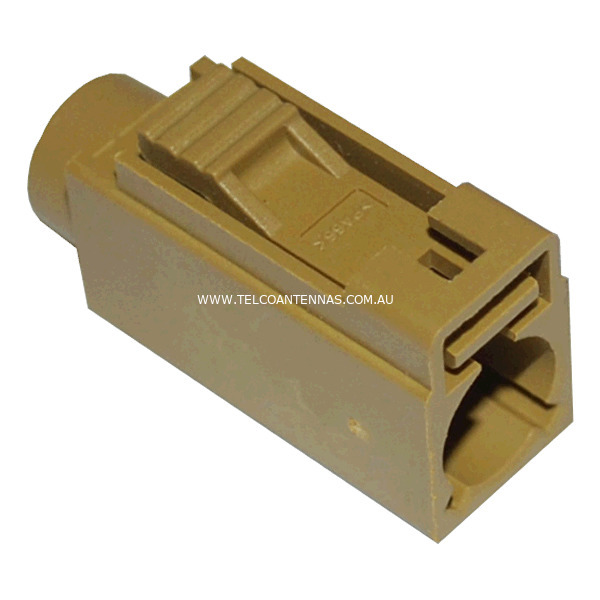

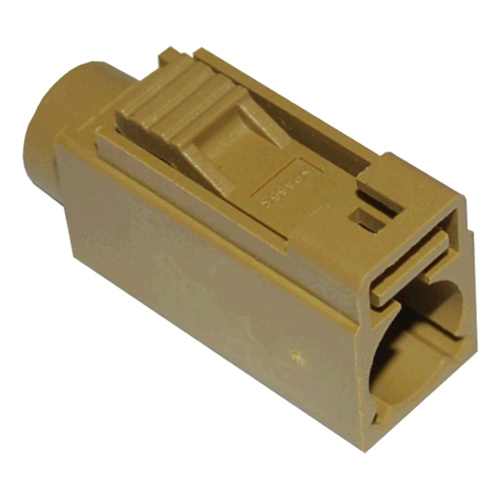

FAKRA SMB Jack: K-Code, Curry (RAL 1027)

Key Features

• FAKRA SMB socket complete with housing, pin, body, ferrule and heatshrink.

Usage

• Utilising a modified metal SMB connector embedded within a plastic housing that can be used with multiple color codes for easy identification

• FAKRA connectors perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

Technologies supported

• AM/FM Radio

• Satellite Radio

• GPS (Global Positioning System)

• Cellular/PCS (Personal Communications Service)

• Bluetooth

• Wireless Remote

• Vehicle Controls

• Wifi

FAKRA Generation 1.0 & 2.0

Generation 1.0

• Utilises a modified metal SMB connector embedded within a plastic housing unit for ease of identification and assembly

• These plastic housings are visually and mechanically coded with keyed tooling to eliminate assembly errors

• Standard FAKRA connectors perform up to 6 GHz and meet the electrical, mechanical and environmental standards of the automotive industry

• Generation 1.0 typically features five separate component parts.

Generation 2.0

• Offers reduced installation costs via a pre-assembled housing unit

• This pre-assembled housing eliminates two loose components and their associated assembly and handling costs

• Due to this component reduction, Generation 2.0 features three separate components to install versus Generation 1.0’s five separate components.

Specifications / Frequency

Electrical Specifications

• Impedance: 50Ω nominal

• Frequency Range: DC - 6 GHz (optimized for DC - 4 GHz)

• V.S.W.R: DC - 2 GHz: <1.40 - 2 GHz - 4 GHz: <1.50

• Insertion Loss: < 0.3 dB max from DC - 3 GHz

• Insulation Resistance: 1000 M Ω min

• Contact Resistance (Centre + Outer contact) < 40 mΩ

• Dielectric Withstanding Voltage at sea level: > 800 VRMS (Interface only; may be cable limited)

Mechanical/Environmental Specifications

• Durability (matings): 100 min

• Plastic Housing - Engagement Force: < 40 N (Single FAKRA)

• Plastic Housing - Disengagement Force: > 35 N (Single FAKRA)

• Cable Retention Force: > 110 N

• Coding: 14 mechanical and coloured codings

• Interface: USCAR-18, DIN

• Temperature Range (Operating): -40 / +100° C

• Thermal Shock: MIL-STD-202, Method 107, Cond B (-55 / +125° C) or USCAR-2, para 5.6.1

• Vibration: MIL-STD-202, Method 204, Cond B; (15g) or USCAR-2, para 5.4.6

• Shock: MIL-STD-202, Method 213, Cond B (75g, 6 ms, 1/2 sine) or USCAR-2, para 5.4.6

Materials/Plating Specifications

• Plastic Housing: Jacks: Nylon, PBT or PPE - In-line plugs: Nylon or PBT - PCB plugs: Nylon

• Secondary Locking Clip: (if applicable) PBT

• Center Contact: Jack: Beryllium Copper or Phosphor Bronze - Plug: Brass or Phosphor Bronze

• Body: Brass, Zinc Alloy

• Retainer Ring (if applicable): Beryllium Copper

• Ferrule: Copper Alloy

• Insulator: TFE or TPX

• Center Contact: Gold

• Body: Cable types Nickel - Solder types Nickel, Gold, Tin

• Ferrule: Nickel
