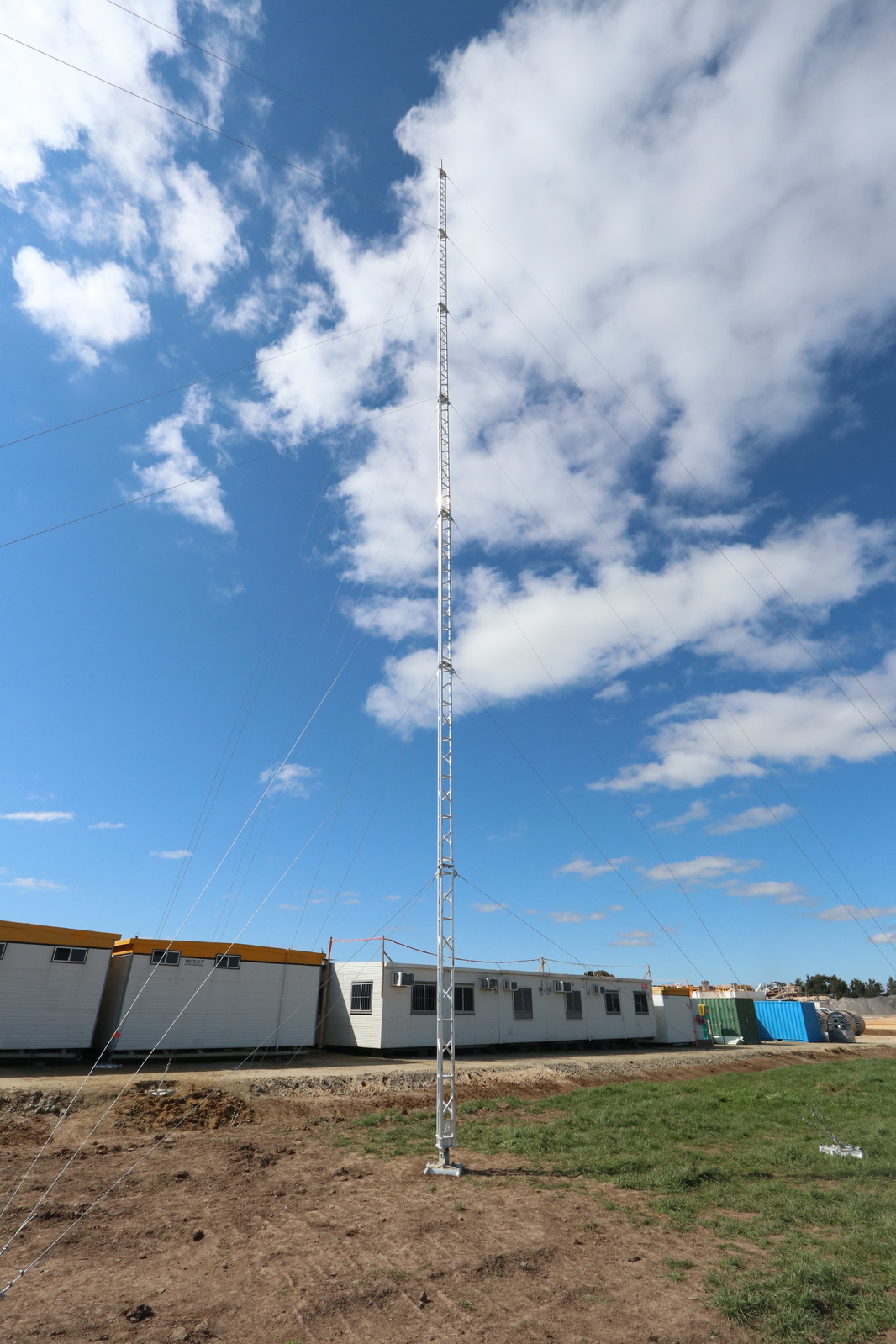

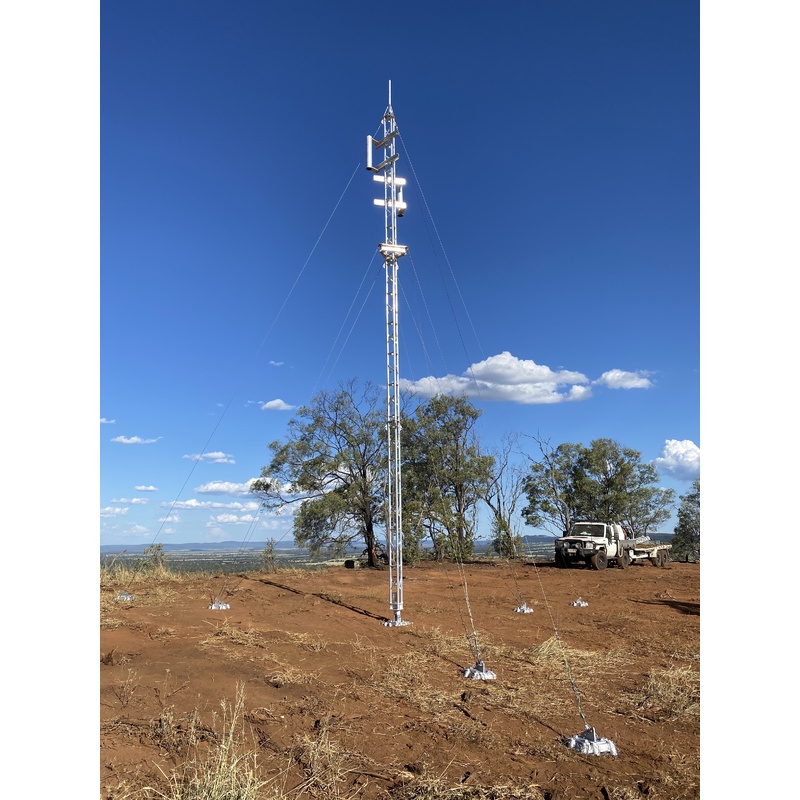

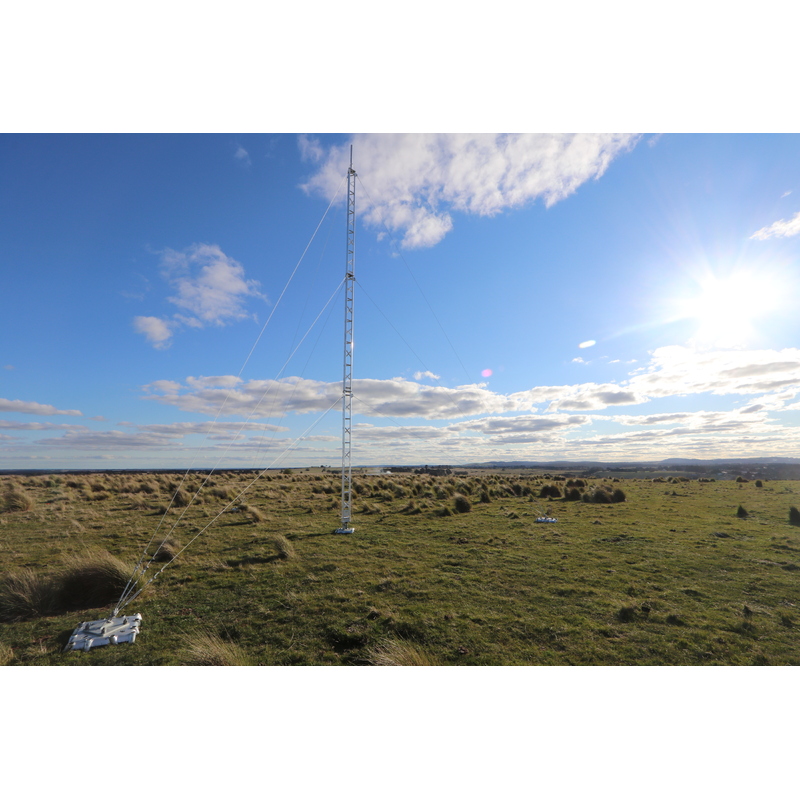

9m Aluminium Guyed Lattice Mast - 210mm Faced Roof Mount or Ground Mount - Light weight Modular Sections


Key Features

  • Engineer Certified to support a variety of communication, ecology and Meteorological equipment in wind regions A through to D

  • Modular design can reach heights from 3m to 21m or enquire for a customised height for your specific application

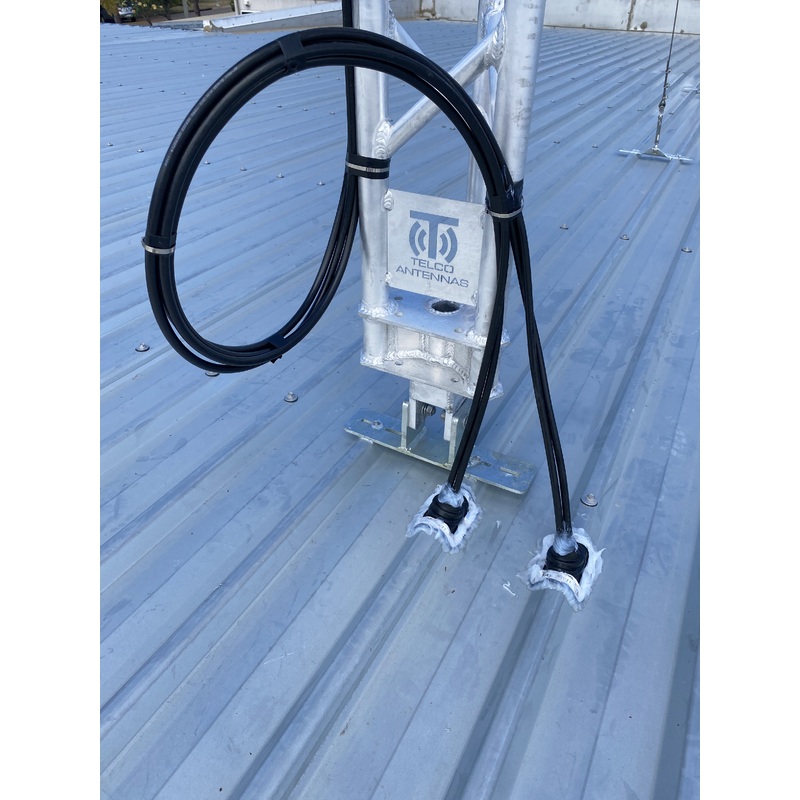

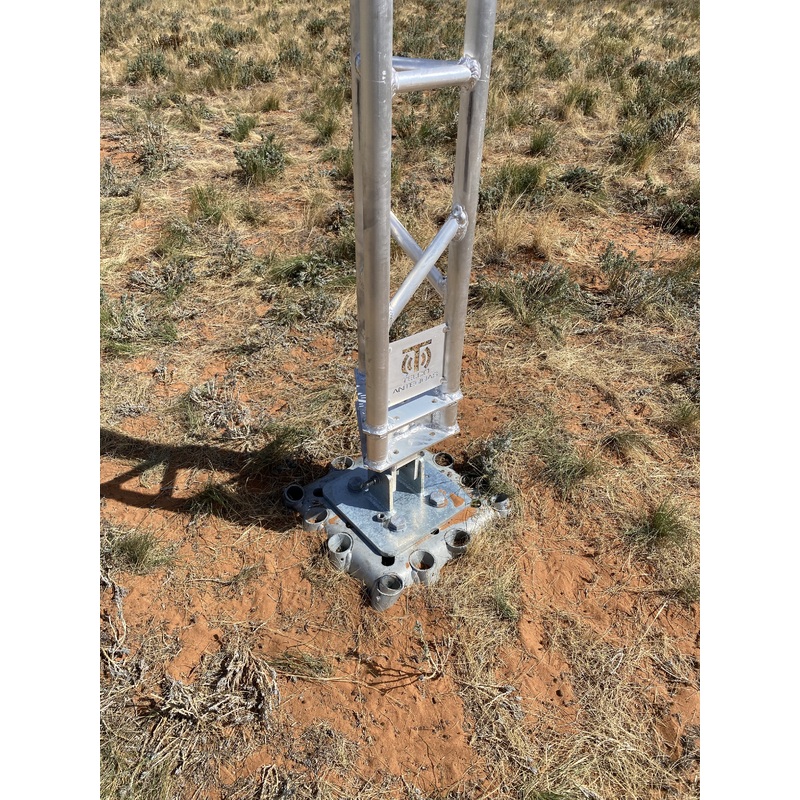

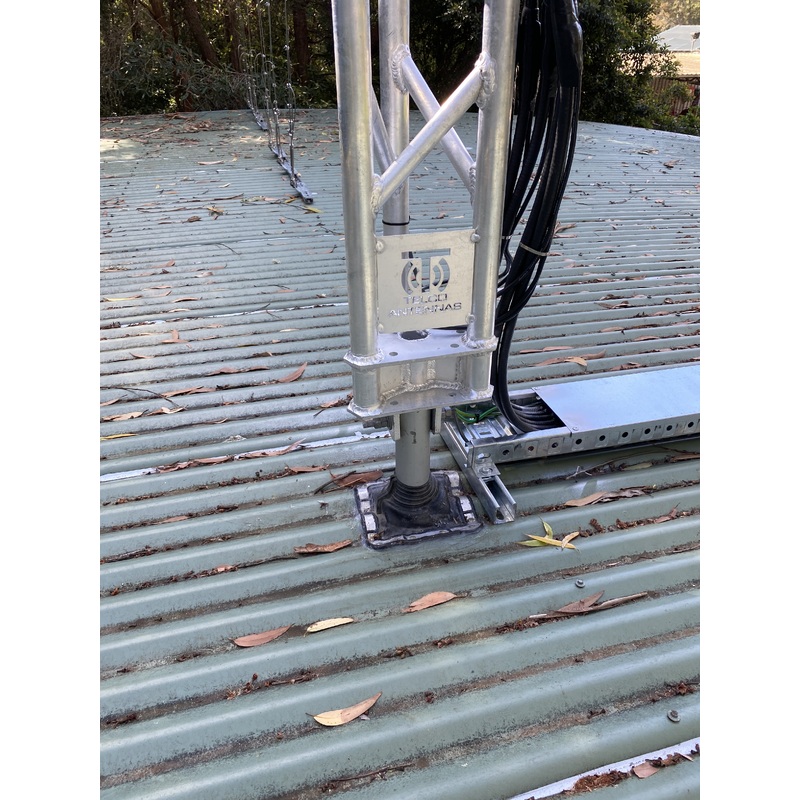

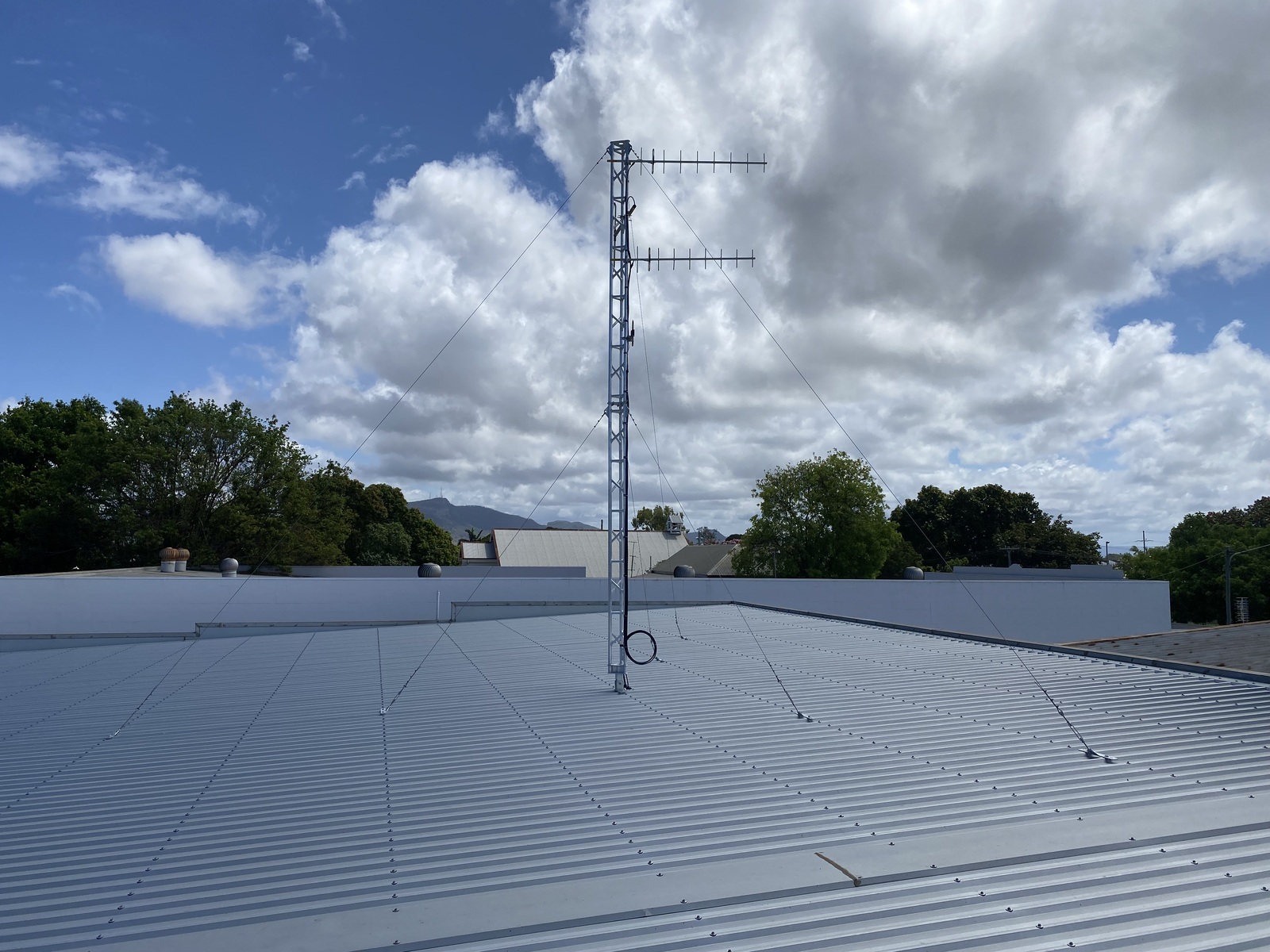

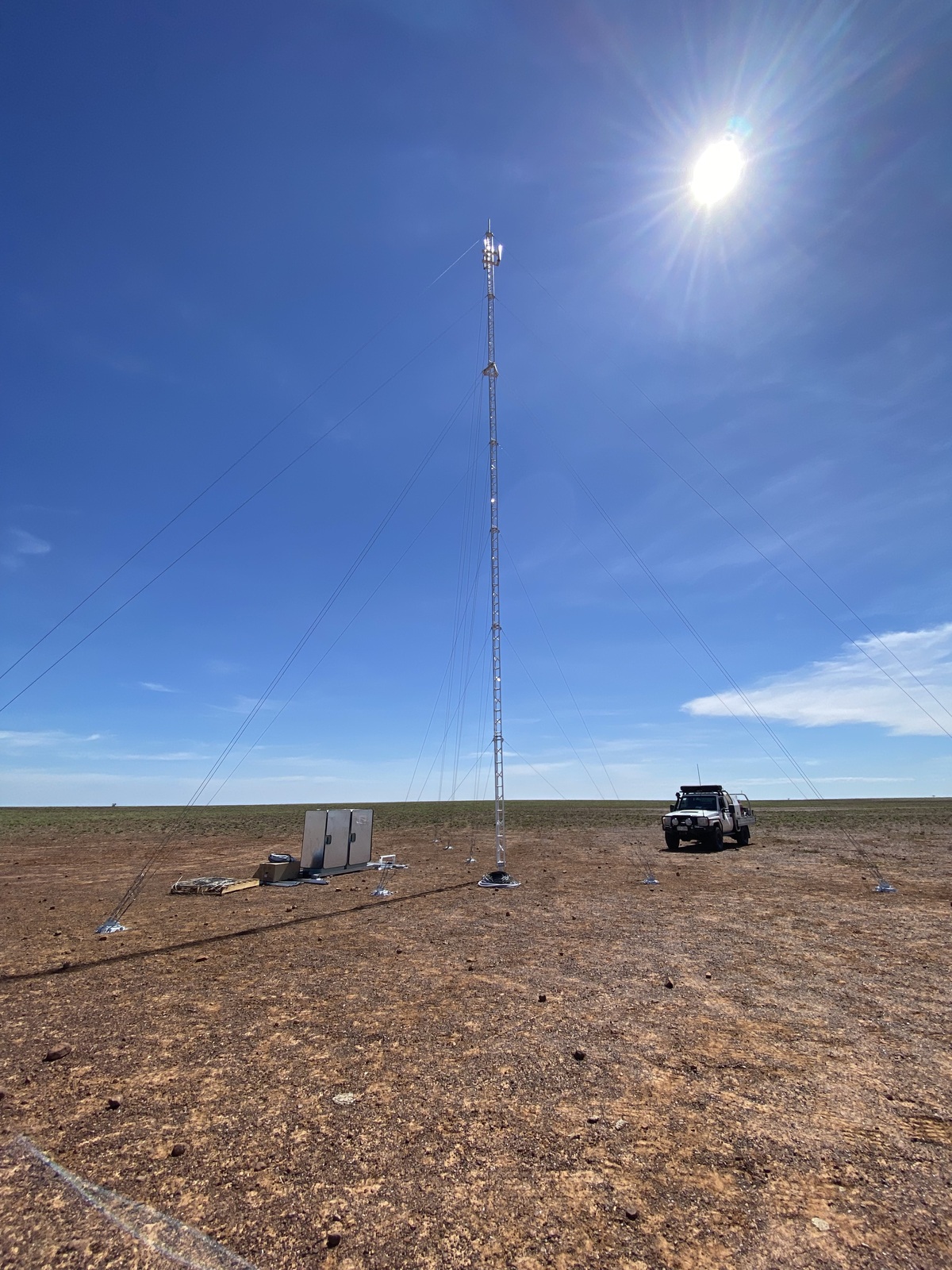

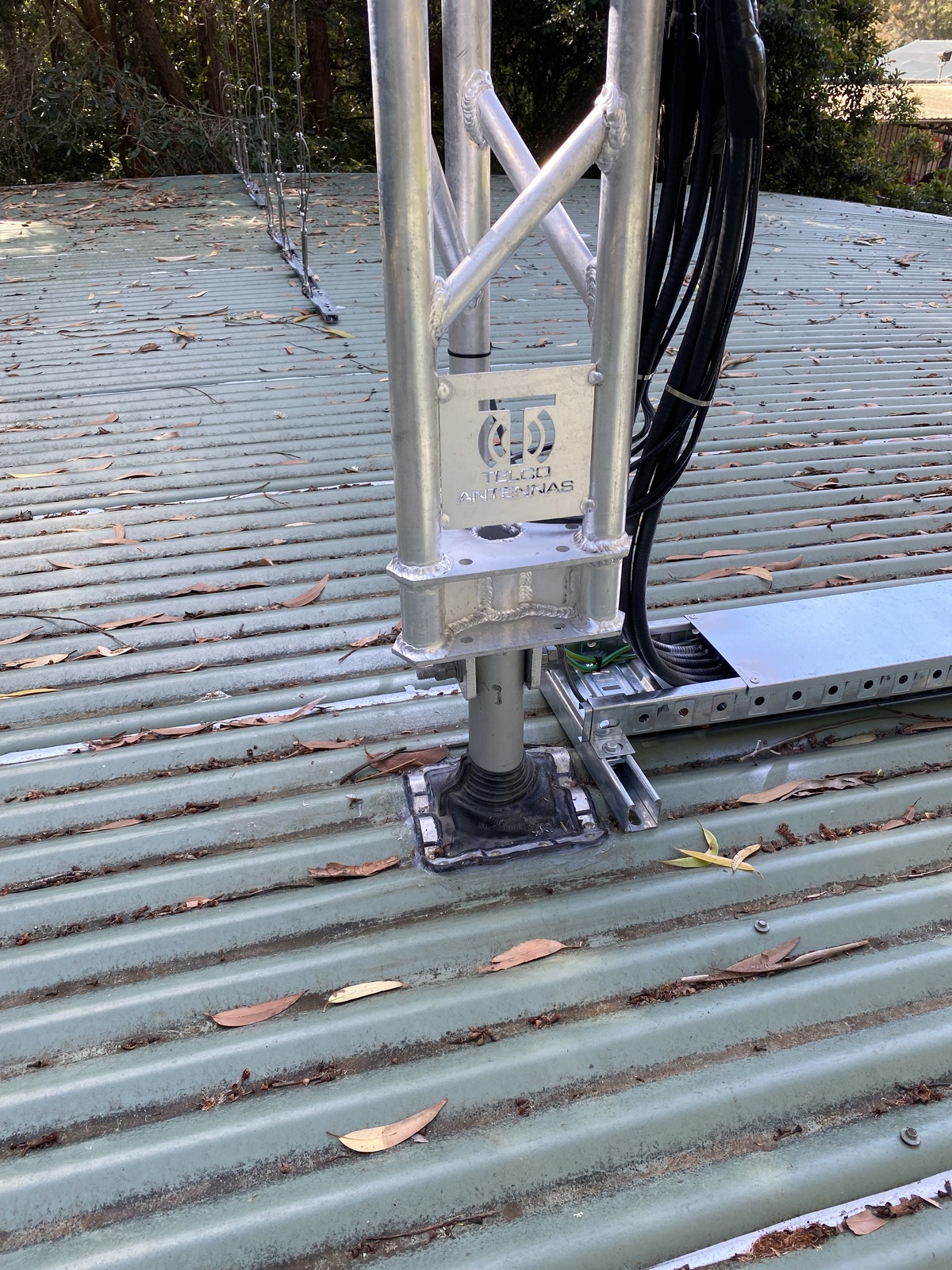

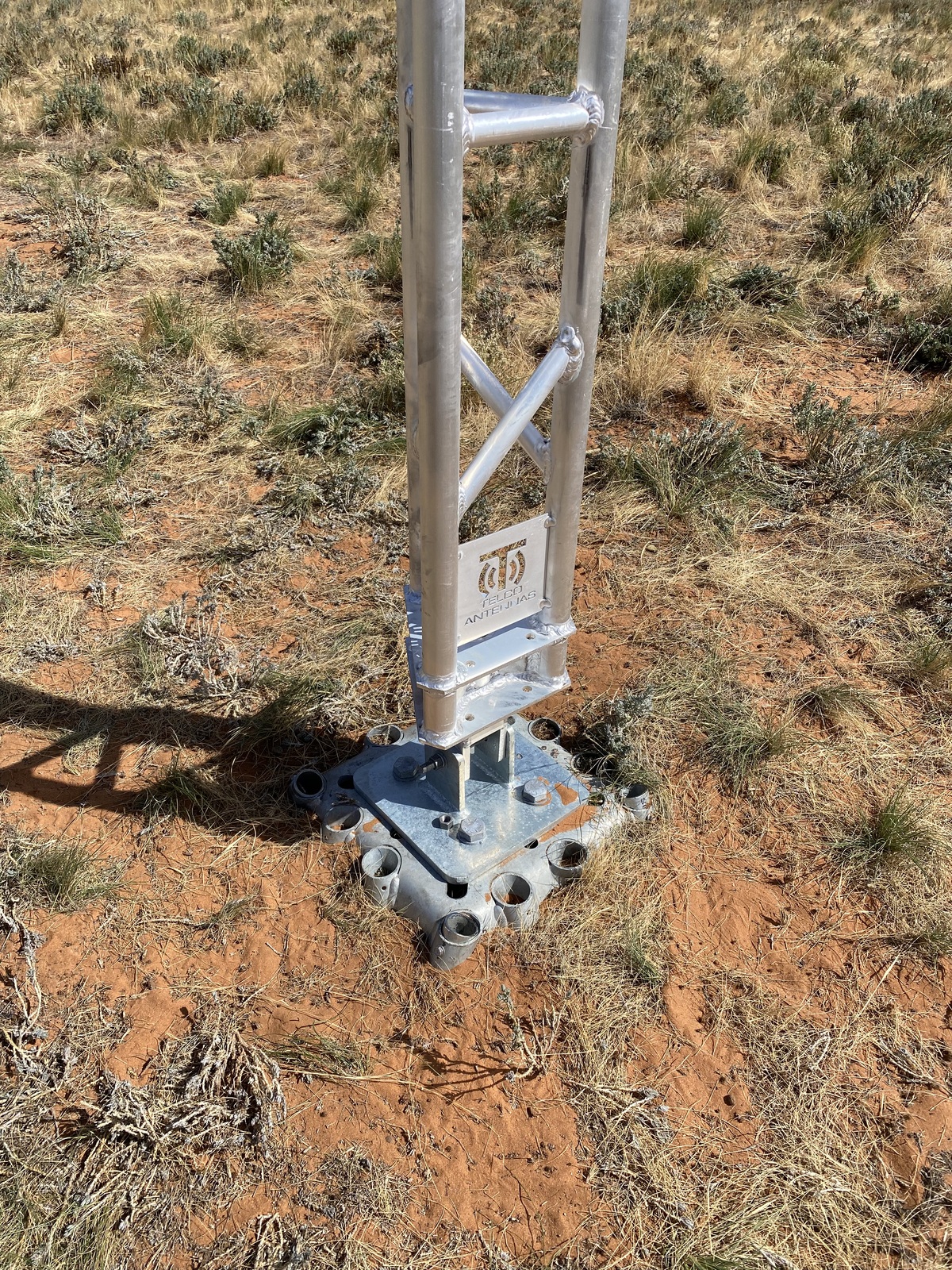

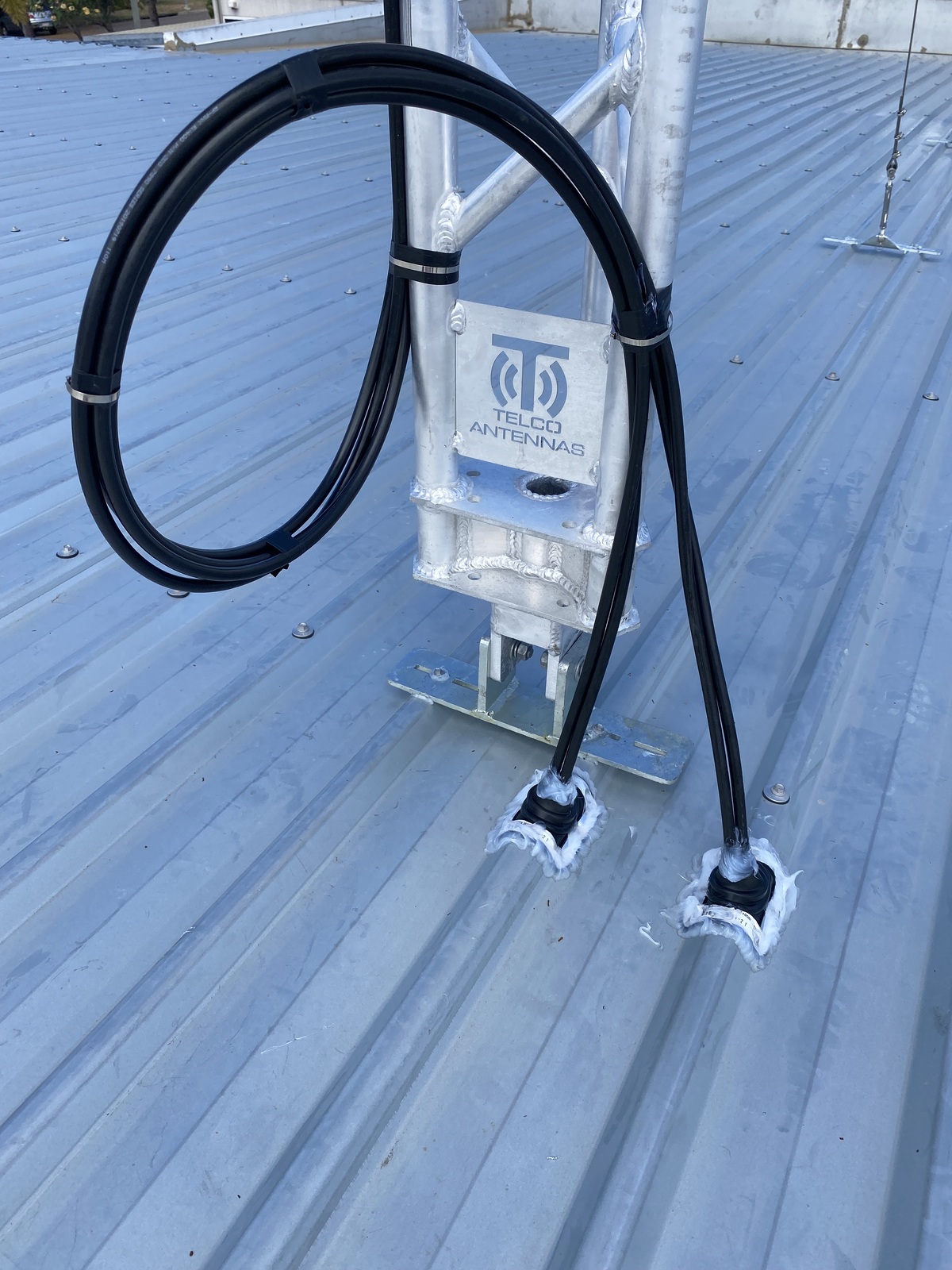

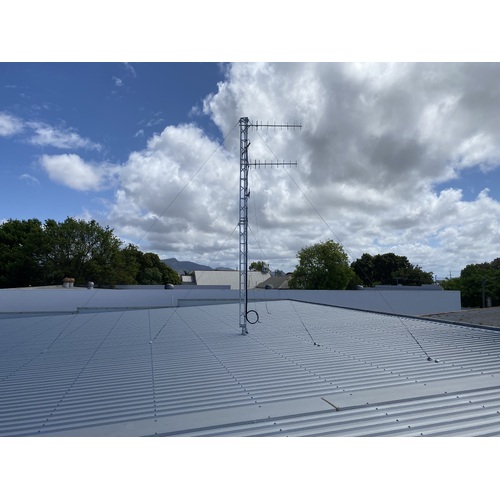

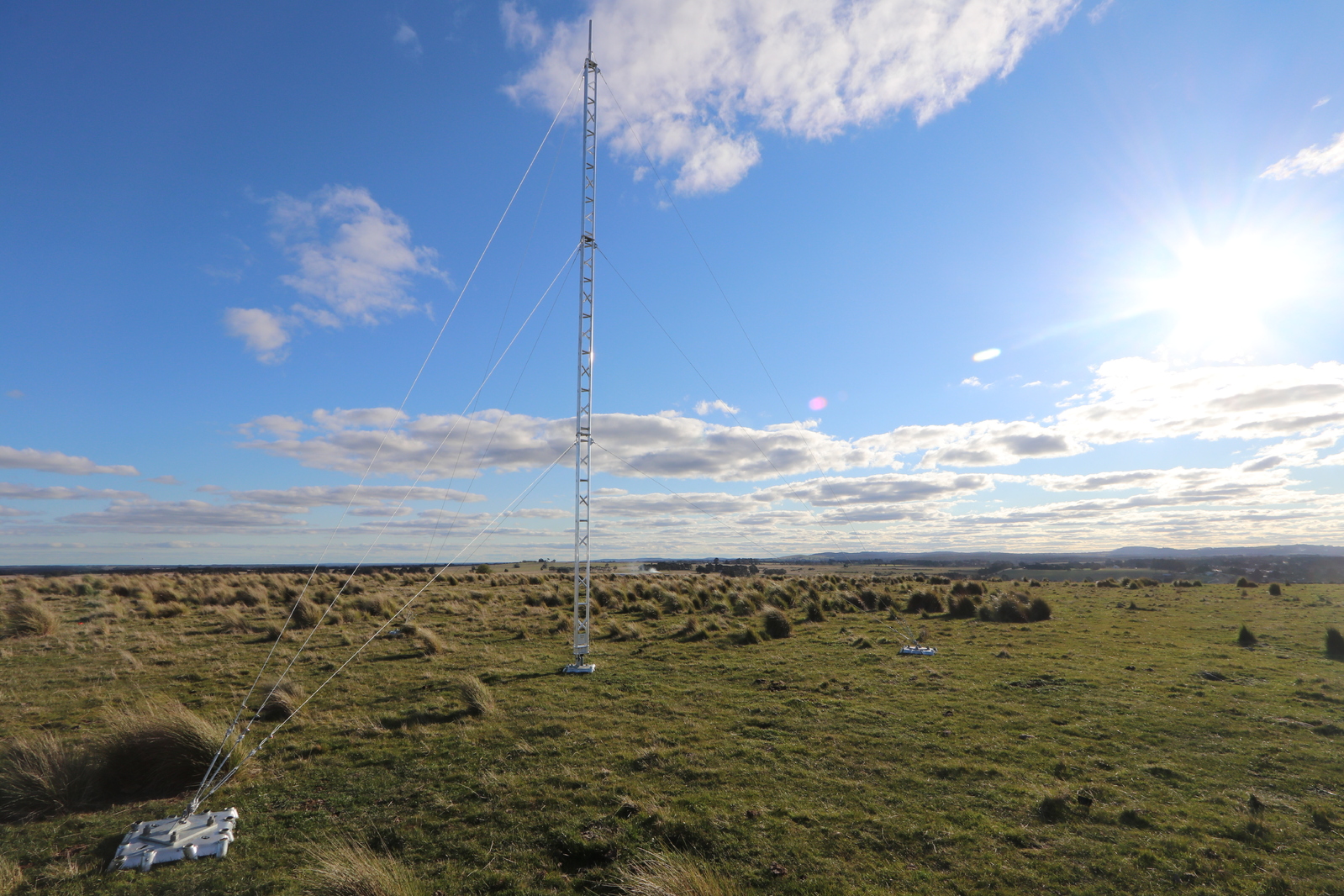

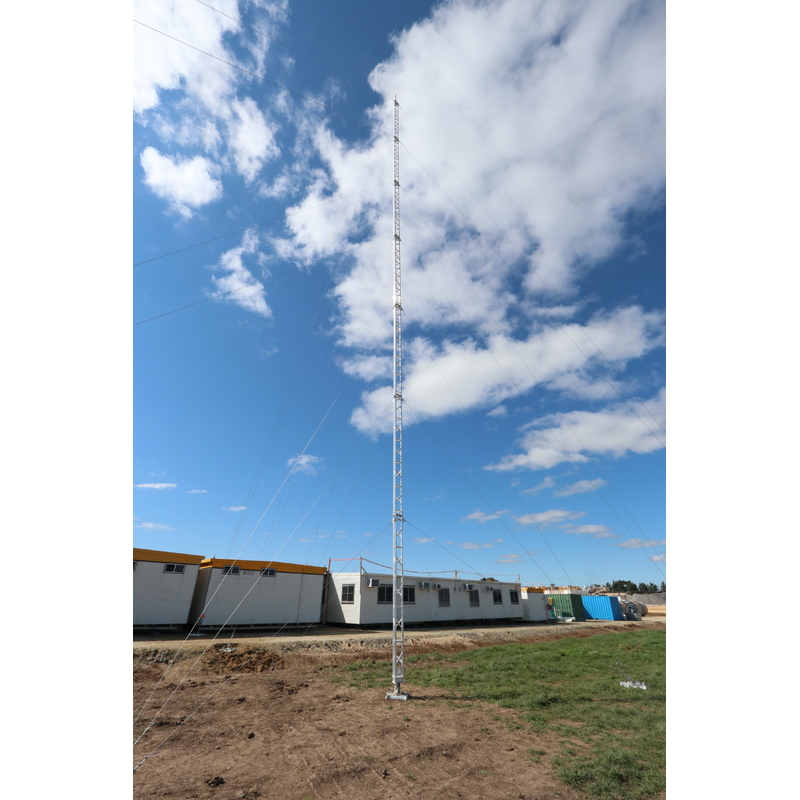

  • Hinged base options for either ground or roof mounted applications

  • Designed and Certified to be climable for ease of installation, maintenence and access to equipment

  • Supplied in a complete kit form including all components required for installation and mounting of your specific equipment, and shipped directly to your preffered location

  • Fabricated in house at Telco Antennas to ensure masts and components are always on hand and ready for shipping




Applications include, but arent limited to :

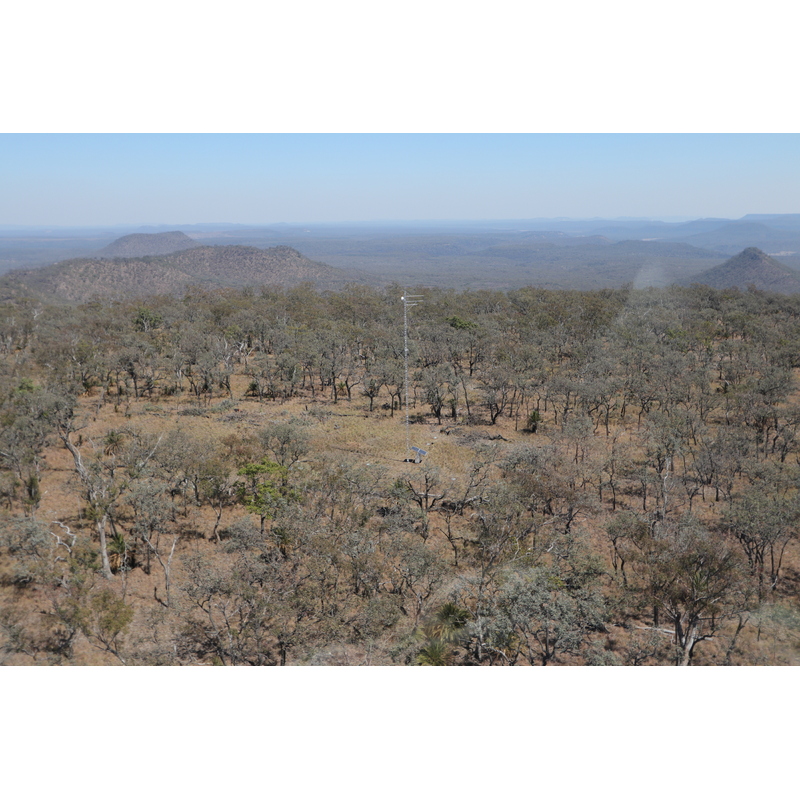

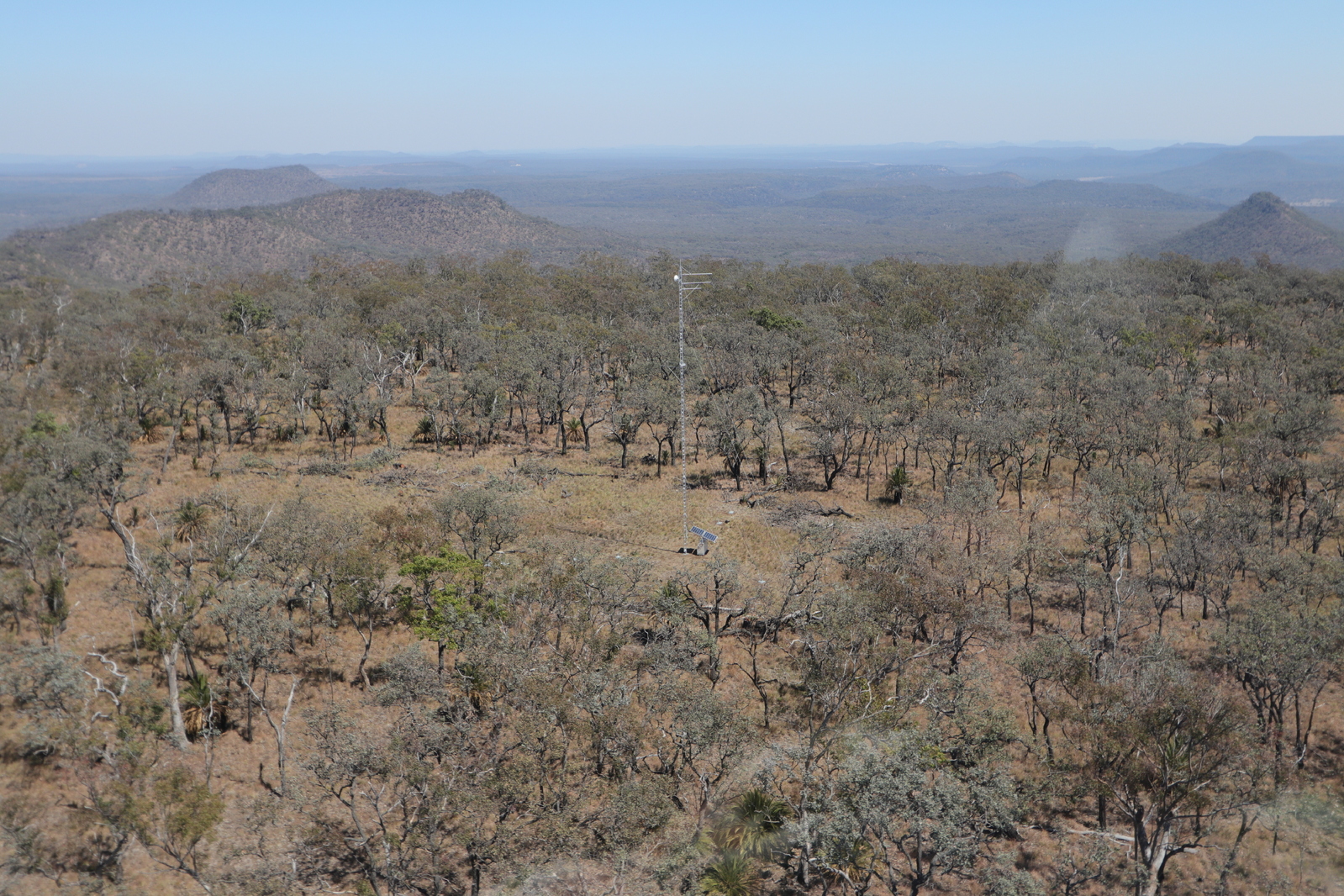

  • Meteorlogical and Ecology applications for scientific data collection
  • Surveilance systems

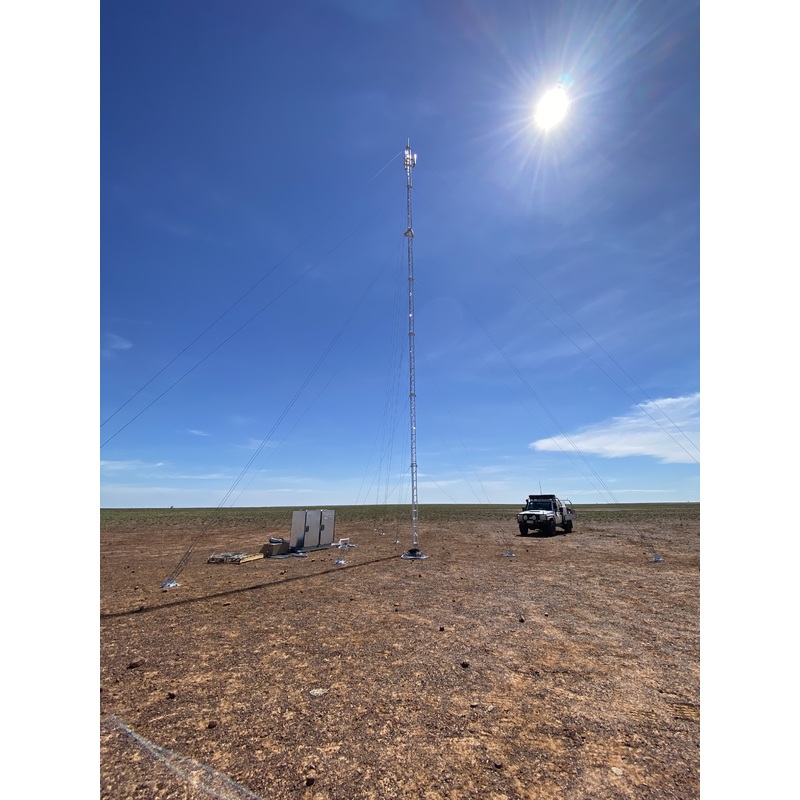

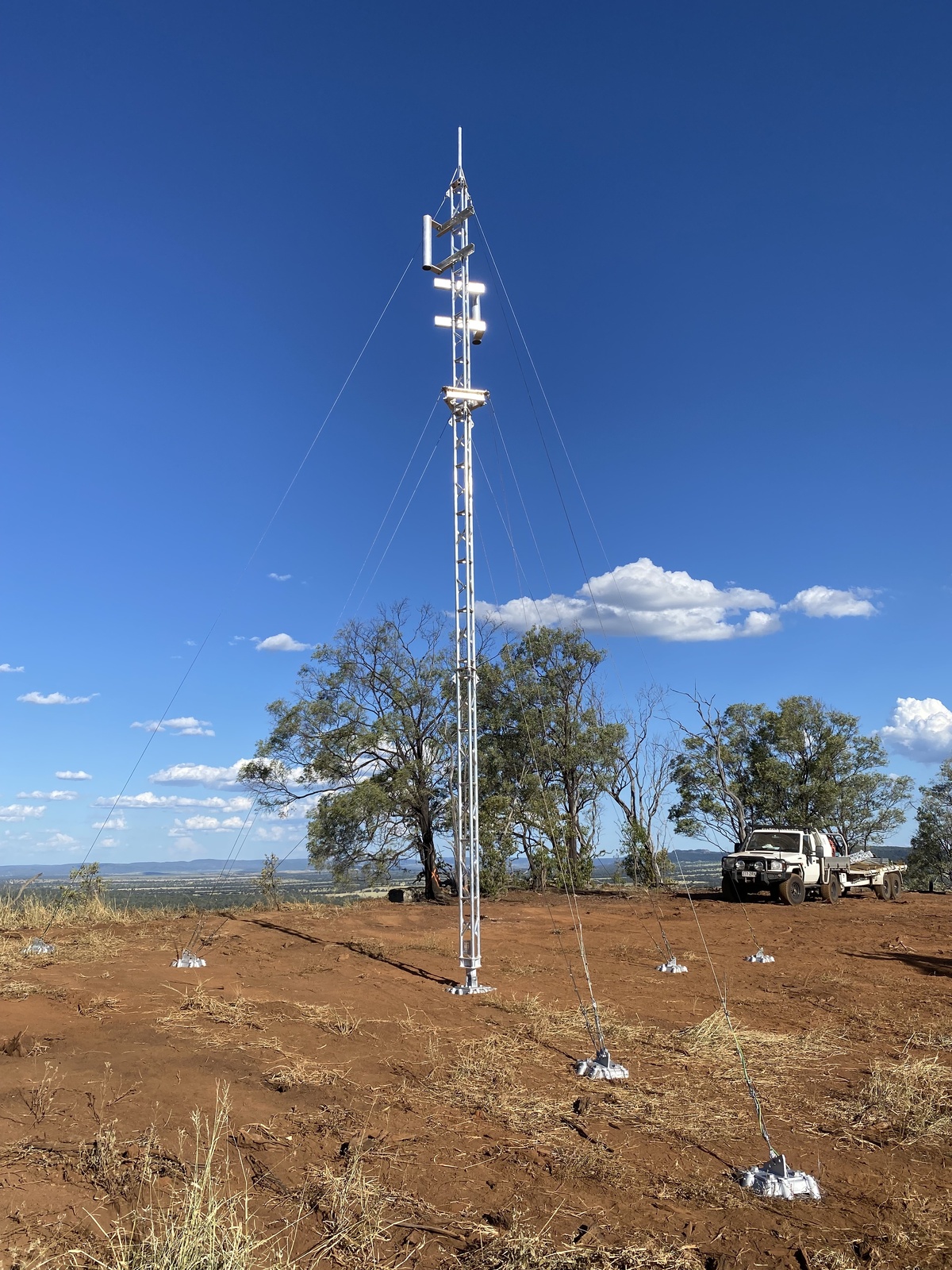

  • communications systems including Point to point links, UHF, VHF, Cell and WiFi Extensions and Starlink installations


  • Aluminium fabrication in accordance to AS1664

  • Aluminium welding in accordance to AS1665

  • 304 Stainless Steel bolts and rigging components in accordance to ISO 3506 U.N.O.

  • Guy cables in accordance to AS3569, Class 7x19 Grade 304 Stainless Steel

  • Guy wire preload tension to 1.0 kN

  • Cable joins and attachments in accordance to AS2579

  • Structure classification per AS3995 is Type II


Engineer approved recommendations

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.


Please contact us for:

  • orders of multiple towers, trade pricing, lead times, and to discuss customisation of mast for a specific project

  • maximum dish size, heights and bracing information for your application.

tower foot printtower configuration plan


Shipping Weight 50.0000kg
Shipping Width 1.100m
Shipping Height 0.500m
Shipping Length 3.125m
Shipping Cubic 1.718750000m3
