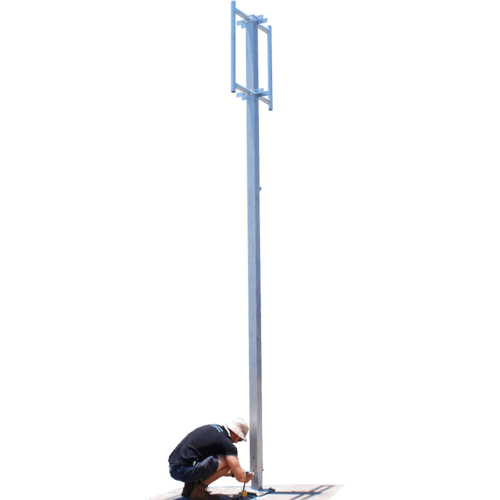

Freestanding Hinged Mast - 10m

Made to Order

Key Features


  • Hot dip galvanised and can be powder coated or painted in the colour of your choice

  • Engineered Pad or Pile foundation extra, please enquire

  • Mast head tilts all the way to ground level for easy access

  • Eliminates the need for EWPs (Elevated Work Platform)

  • Simple, practical design making operation a very safe procedure

  • Mounts any type of antenna with offset brackets (bracket in photo extra)

  • 90mm galvenised box section

  • Base Plate hole centres are 200mm x 210mm

  • This mast can be customised to individual requirements, including:

    • Grounding/surge protection to protect equipment against lightning

    • Mast head design allowing for antenna array, sectors, etc.

    • Additional mounting brackets along length of mast

    • Stand off bars, access doors, boxes, etc.

    • Multiple sizes available.


A heads up!

  • Brackets extra (brackets shown in image are extra).

Please note you will need equipment to unload the general goods freight company truck when Mast is delivered



  • This product has been specifically designed to meet a demand for a tall independent antenna mast that can be lowered allowing for convenient adjustments and or maintenance of mounted equipment

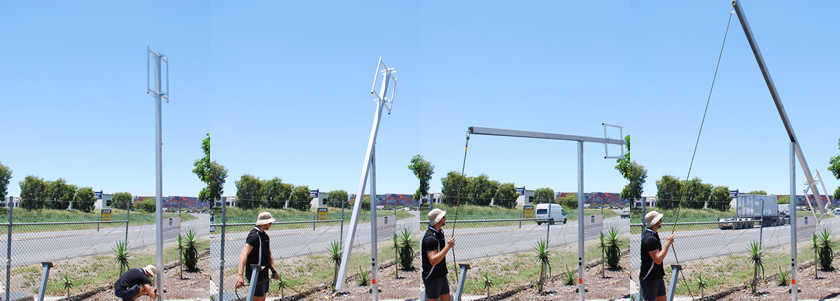

  • The pivoting design of this mast means that it can be lowered by the individual before re-raising and locking into place

  • Perfect for mine sites, airports, and rural facilities, these masts offer a simple, safe, and effective method of RF equipment maintenance that can be carried out by one or two people

  • The lowering mast is the ideal solution where space is limited and cherry pickers are not feasible

  • The height of the mast also lends itself for use by clients looking to mount antennas high enough to clear trees or other obstructions in order to receive a clearer and stronger signal

  • Future proofing comes in the form of convenient access to the mast head, and as new technology becomes available you can easily replace/upgrade antennas, radios etc. to ensure that you are achieving the best performance possible

  • The tower shown has a Custom Mast Head installed.


Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.

Please contact us for:
  • multiple mast orders, trade pricing and to discuss customisation of mast/s for a specific project
  •  for expected lead times for masts and towers.
  • Correct Engineered Pile or pad foundation
  • Freight costing -due to the size of this mast the frieght has to be calculated utilising a specialised freight agent



Shipping Width 0.050m
Shipping Height 0.050m
