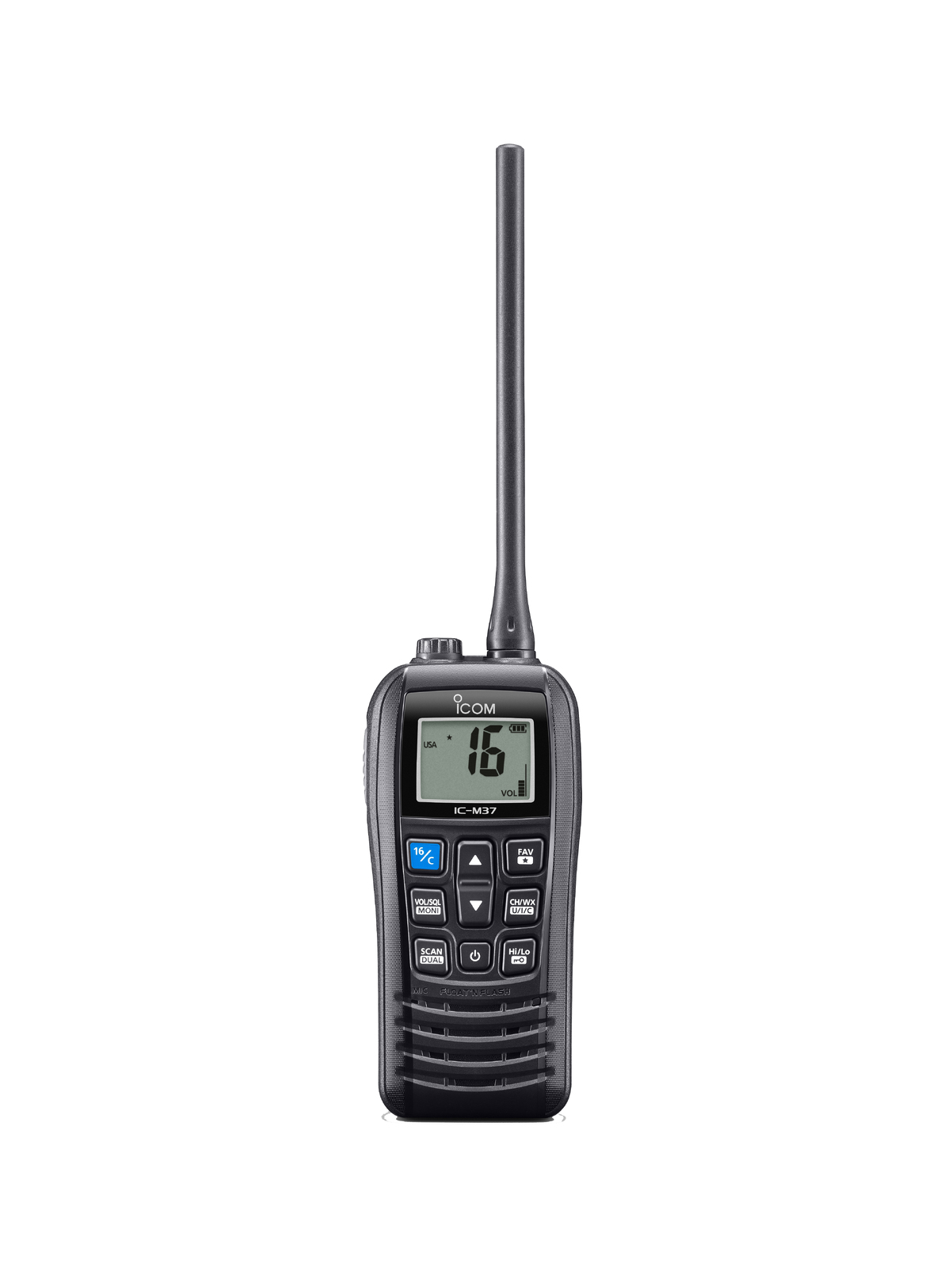

Icom M37E Marine VHF Hand-Portable
5 Watt Handheld Marine VHF Radio
SKU: IC-M37E
Icom IC-M37E 5 Watt Handheld Marine VHF Radio
Features:
A 5watt VHF Handheld Transceiver, the IC-M25EURO EVO is designed with an improved grip texture for easier handling, and larger buttons for easier operation. The lightest weight buoyant marine radio at 218g. Its slim depth can be comfortably operated with one hand. These features make it easier to grip, carry and operate for a long time.
A submersible design IPX7 waterproof construction that will float if you accidentally drop into the water. It will float, flash and sound an alarm to reduce the risk of loss at sea.
Offers up to 14 hours of extended operation with its power-saving Eco Mode, plus Micro-USB Charging connector that is widely used on mobiles and other devices.
Optional waterproof speaker-microphone provides commercial grade convenience while mounting the radio around the waist. It delivers uncompromised performance that will exceed expectations.
- IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)
- Low Battery Alert function
- Voice Loud and Mute function enables to temporary maximize/mute the volume
- AquaQuake™ function prevents audio degradation from a water-logged speaker
- Dualwatch and Tri-Watch functions
- Favorite Channel function
- Instant access to channel 16 and the Call channel
- BP-296 user replaceable Li-ion battery pack supplied
- Weather channels with Weather Alert function
(IC-M37E)
Large Keys and Easy-to-Grip Design
5 W RF Output Power
700 mW Audio Output
More than 12 Hours* of Long-Lasting Operating Time (with BP-296)
* TX: RX: Standby = 5 : 5 : 90.
Channel History Function Stores the Last Five Channels Used for Easy Recall
Float'n Flash Function
The radio floats with a flashing LED light to help you retrieve it from the water.
General
| IC-M37E | IC-M37E AUS Version |
||
|---|---|---|---|
| Frequency range | TX | 156.000–161.450 MHz | 156.025–157.425 MHz |
| RX | 156.000–163.425 MHz | 156.300–162.000 MHz | |
| Usable channel groups | INT, ATIS*, USA* * Available depending on version |
INT, USA, WX | |
| Type of emission | 16K0G3E | 16K0G3E | |
| Current drain (at 3.7 V DC) |
TX | 2.75 A/1.0 A (6.0 W/1.0 W output) |
2.6 A/1.0 A (5.0 W/1.0 W output) |
| RX | 0.4 A/0.2 A (Max. audio. Int. SP/Ext. SP) |
0.4 A/0.2 A (Max. audio. Int. SP/Ext. SP) |
|
| Operating temperature range |
–15°C to +55°C | –10°C to +55°C | |
| Antenna impedance | 50 Ω | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
59.7 × 140.5 × 38.7 mm | 59.7 × 140.5 × 38.7 mm | |
| Weight (approximate) | 293 g (with BP-296, antenna and belt clip) |
293 g (with BP-296, antenna and belt clip) |
|
Transmitter
| IC-M37E | IC-M37E AUS Version |
|
|---|---|---|
| Output power (High/Low) |
6 W/1 W | 5 W/1 W |
| Max. frequency deviation | ±5.0 kHz | ±5.0 kHz |
| Frequency stability | ±1.5 kHz | ±10 ppm |
| Spurious emissions | 0.25 μW | 0.25 μW typical |
Receiver
| IC-M37E | IC-M37E AUS Version |
||
|---|---|---|---|
| Sensitivity (at 20 dB SINAD) |
–4 dBμ emf typical | –4 dBμ emf typical | |
| Squelch sensitivity (Threshold) | –5 dBμ emf typical | –5 dBμ emf typical | |
| Adjacent channel selectivity | 70 dB typical | 65 dB | |
| Spurious response | 70 dB typical | 65 dB | |
| Intermodulation | 68 dB typical | 65 dB | |
| Hum and noise | 40 dB | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 700 mW typical ( 8 Ω load) |
700 mW typical ( 8 Ω load) |
| External SP | 200 mW typical ( 4 Ω load) |
200 mW typical ( 4 Ω load) |
|
Measurements made in accordance with EN301 178(IC-M37E) and AS/NZS 4415.2-2003.(IC-M37E AUS Version)
All stated specifications are subject to change without not ice or obligation.
Applicable U.S. Military Specifications
| Standard |
|
|
|---|---|---|
|
|
|
|
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Water | IPX57 dust protection and waterproof protection |
Supplied accessories
・ BP-296 battery pack
・ BC-235 desktop charger
・ BC-217SE/SV AC adapter*
・ FA-SC59V antenna
・ MB-133 belt clip
・ Hand strap
