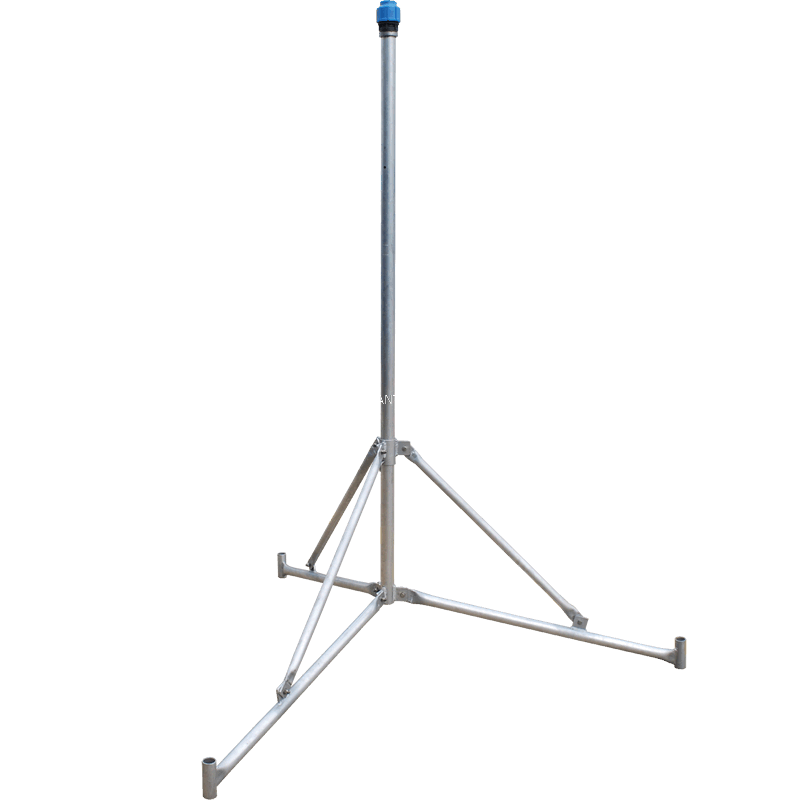

Collapsible Antenna Mounting Tripod with 7.5m Telescopic Mast



Key Features



  • Ideal for temporary setup in rough or uneven terrain

  • Height adjustable from 1.8m to 7.5m high

  • Tubular feet with mounting hole for pegging into ground

  • Flat feet inserts available

  • Stainless Steel high tensile bolts with nylon spacers

  • 1860mm feet width apart

  • Good quality product.



Usage



  • This package comprises our Medium Aluminium Tripod and light 5.7m Aluminium Telescopic Mast System

  • We design and manufacture this high quality tripod mast system to fill the need for a durable heavy duty, lightweight free standing mast

  • The versatile design suits a multitude of purposes and has been deployed in a range of industries including:

    • Outside Broadcast (Radio/Television)

    • Emergency Services

    • Music Festivals

    • Surveying

    • Semi-permanent and temporary communications

    • Demountable and re-deployable telemetry.













  • This tripod is engineer certified for survivability to support dish antennas up to 900mm in diameter in 100km/h winds.



Specifications







  • The stand comes with a 10mm stainless safety stopper pin to insert into the extension shaft ensuring heavy loads will not drop down

  • At only 9kg the system is light enough to carry anywhere, but strong enough to support 100kg man standing on the legs

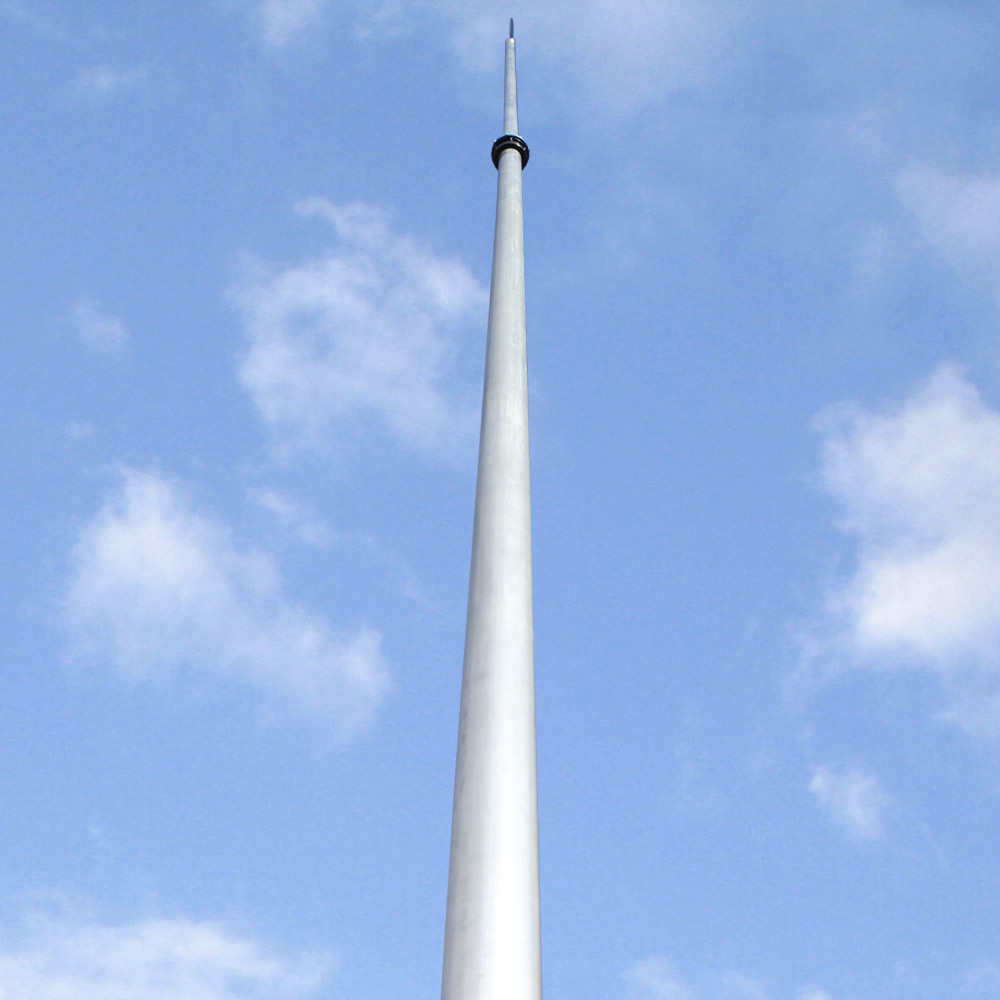

  • The 5.7m mast slots neatly into the 1.8m tripod base and will extend your equipment up to 7.5m above ground (full extension may require guy wires in windy environments)

  • As with all our in-house manufactured products, this product can be customised to suit any particular application

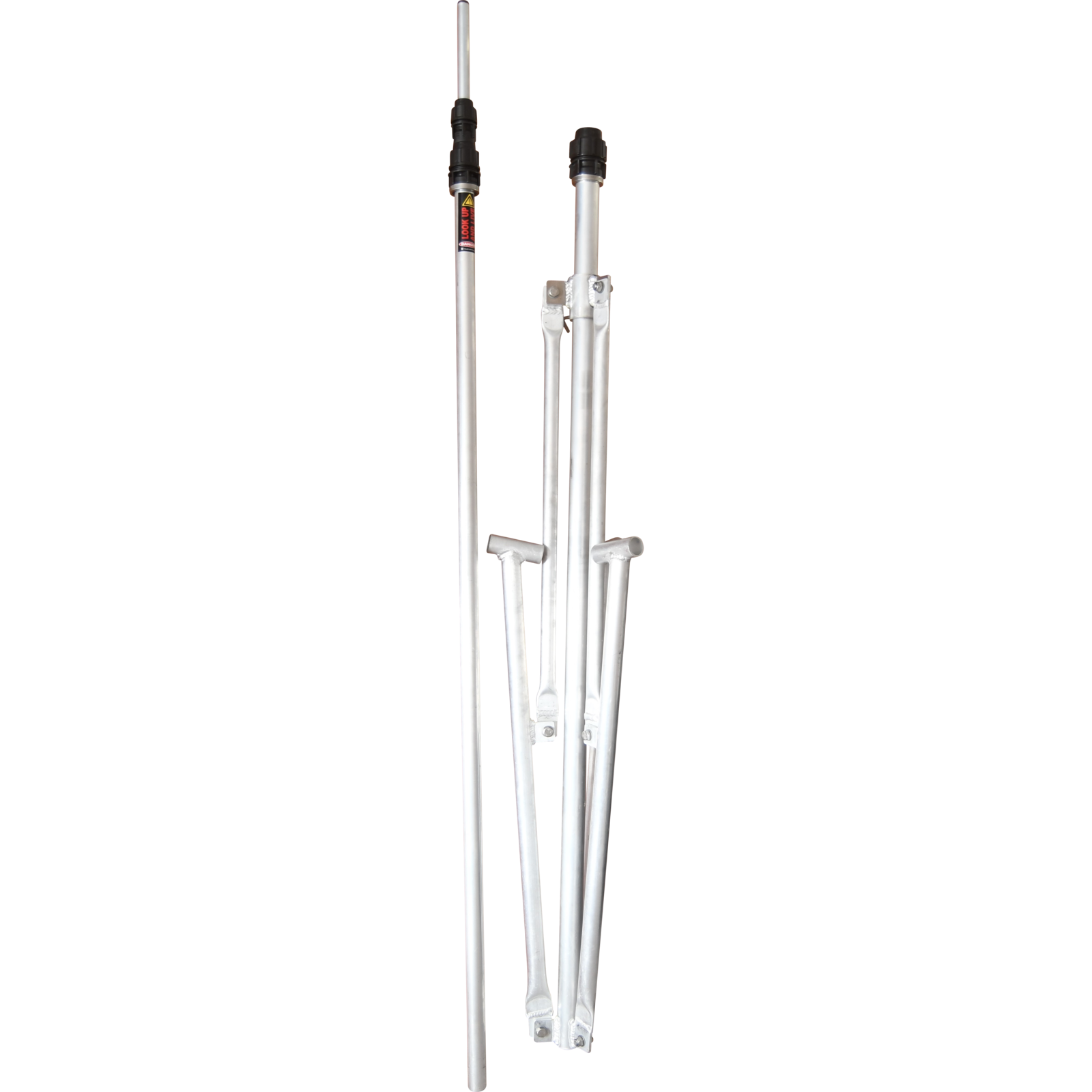

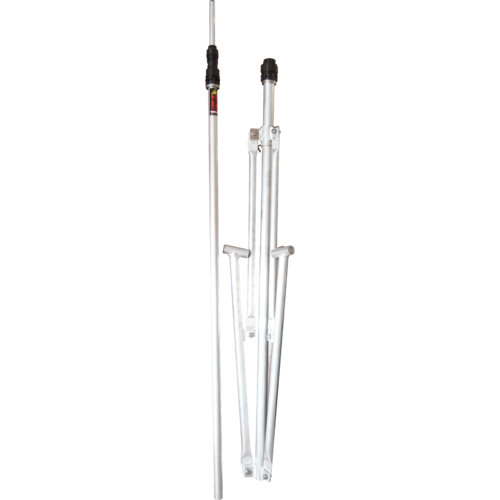

  • When collasped, the overall dimensions are:

    • Aluminium Tripod - 2000mm long x 500mm wide

    • Telescopic Mast - 2100mm long x 50mm wide.



Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.





Please contact us for:

  • maximum dish size, heights and bracing information for your application

  • lead times for masts and towers.





Above - Optional T-Piece Attachment.



Read More



(TF-TM-ATRI75-MED)

SKU TF-TM-ATRI75-MED
Shipping Weight 15.0000kg
Shipping Width 0.400m
Shipping Height 2.200m
Shipping Length 0.350m
Shipping Cubic 0.308000000m3
