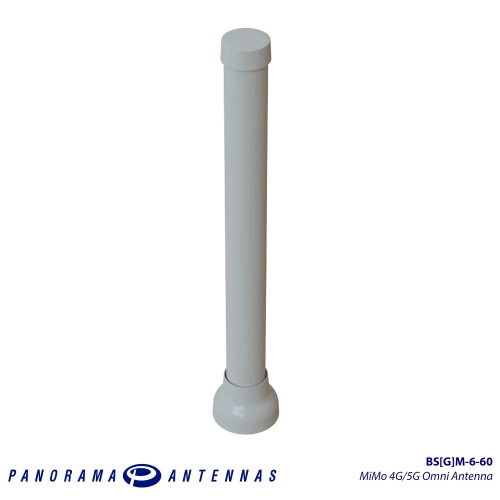

Panorama MiMo 4G/5G + GPS Omni Directional Antenna

Key Features

• 2x2 MiMo 4G/5G antenna solution

• GPS/GNSS - 26dB LNA

• Wall, rail, or mast mount

• Integrated coaxial cables (2x Cellular + 1x GPS)

• Perfect for Urban 4G & 5G Installations

Additional Information

• The BBSGM-6-60-5SP antenna is a MiMo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.

• The BSGM-6-60-5SP includes a dedicated Active GPS/GNSS Antenna with a Gain of 26dB LNA

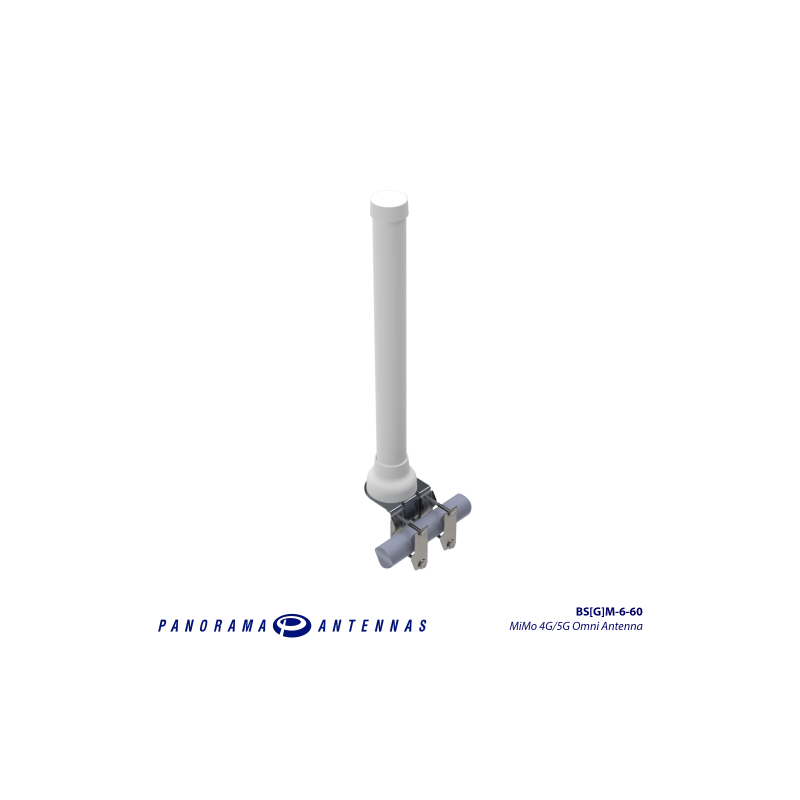

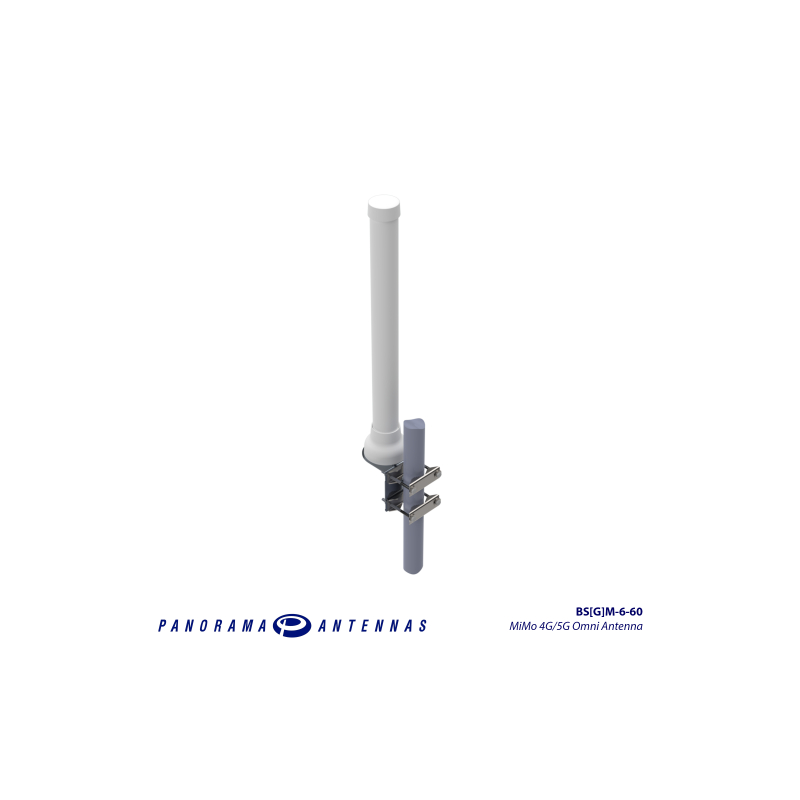

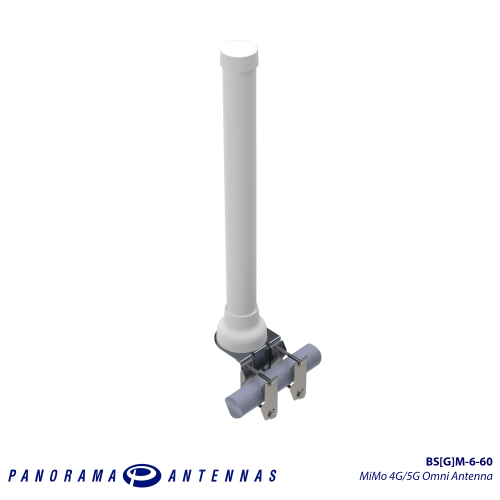

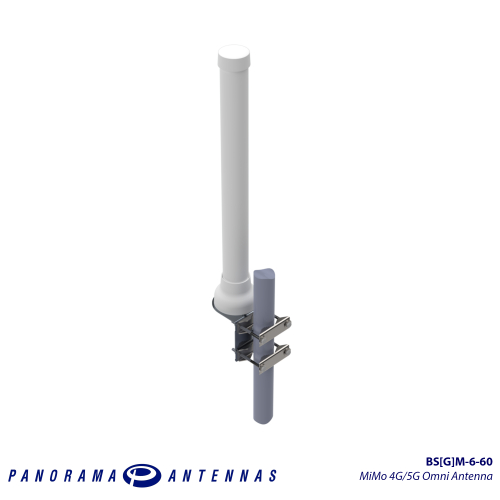

• The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.

• The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.

• This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion resistant design also makes the antenna suitable for certain marine and costal applications.

Specifications / Frequency

Electrical Specifications

Cellular

• Frequency Range Cellular: 617-960MHz / 1427-6000MHz

• Peak Gain: 3dBi (617-960MHz) / 6dBi (1427-2700MHz) / 5dBi (3400-4200MHz) / 5dBi (4900-6000MHz)

• Input Impedance: 50 Ω

• VSWR: ≤2.5:1

• Polarisation: V + V

• Isolation: ≥25dB

• Vertical Beamwidth: 80° (± 5°) / 70° (± 5°) / 60° (± 5°)

• Radiation: Omnidirectional

• Maximum Power: 10 Watts

GPS/GNSS

• Frequency Range: 1559-1612MHz

• VSWR: ≤2.5:1

• LNA Gain (26dB (+/-3)

• Operating Voltage: 3-5VDC <20ma

Mechanical/Environmental Specifications

• Cable: CS32 5m

• Connector: 3 x SMA Male 5m Cables

• Radome Material: UPVC

• Radome Colour: White Natural

• Temperature: -40°C to +85 °C

• Weight: 1.5 kg

• Dimensions: 540 x 86 mm (L x Ø)

• Mounting: Wall, Mast, Rail or Pole

• Max Mast/Rail Diameter: 50mm
