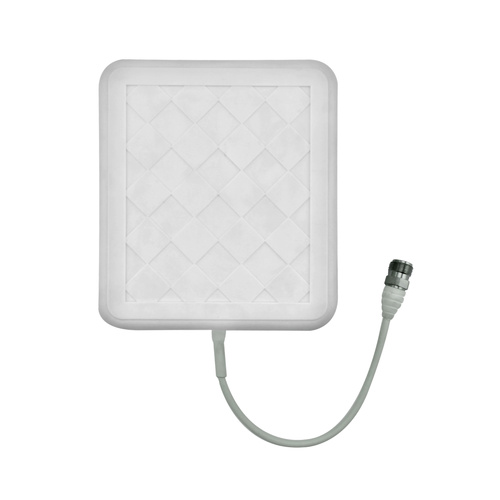

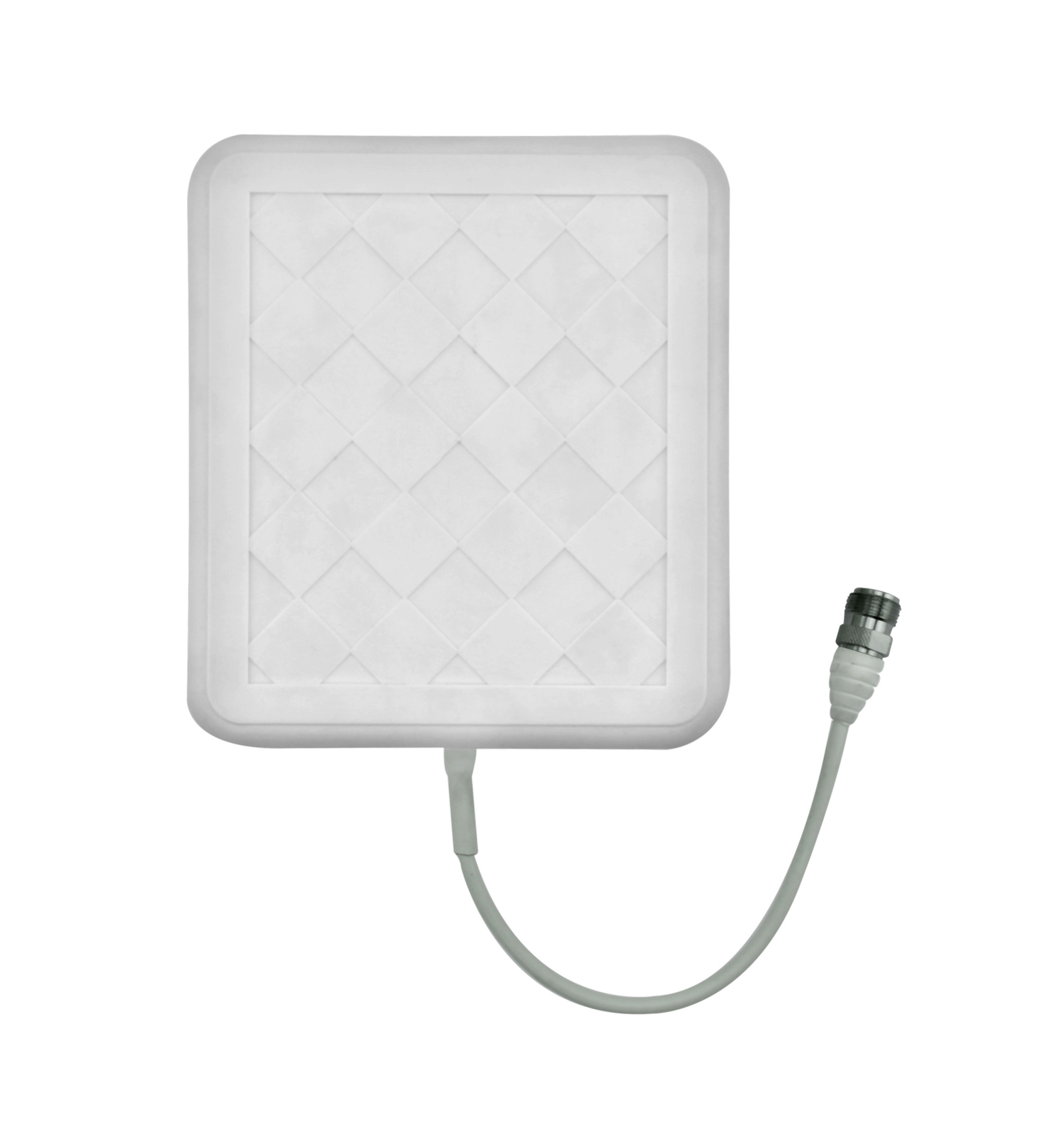

Telco Antennas Multiband SiSo Panel Antenna - 698-3800MHz

Key Features

• 5dBi gain @ 698-960 MHz,  an 8dBi gain @ 1710-2700MHz & a 7dBi Gain for 3400-3800MHz

• Weatherproof housing suitable for either indoor or outdoor installation

• Includes pole mount and wall mount brackets

• N-Type female connector

Usage

• This single polarity antenna is recommended for select applications only, and is future proof supporting 698-960MHz, 1710-2700MHz for coverage across most of the Australian LTE bands

• The antenna is supplied as a ready to install kit that includes:

  • the antenna

  • both wall and pole mounting brackets

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		5.5 dBi
Optus 4G+ (700 MHz)		5.5 dBi
Telstra Next-G™ (850 MHz)		6.5 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		6.5 dBi
Optus Regional 3G (900 MHz)		6.5 dBi
Vodafone Regional 3G (900 MHz)		6.5 dBi
Telstra/Optus/Voda 4G (1800 MHz)		8 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		8 dBi
Optus/Vivid Wireless 4G (2300 MHz)		8 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		8 dBi
Telstra 4GX (2600 MHz)		8 dBi
5G Networks N78 (3600MHz		7 dBi

Electrical Specifications

• Frequency Range: 698-800MHz / 800-960MHz / 1710-2700MHz / 3400-3800MHz

• Vertical Beamwidth: 80° / 75° / 50° / 65°

• Horizontal Beamwidth: 100° / 90° / 55° / 50°

• Front to Back Ratio: ≥11dB / ≥13dB / ≥11dB / ≥10dB

• Input Impedance: 50Ω

• VSWR: <2.0:1

• Radiation: Directional

• Maximum Power: 50Watts

Mechanical/Environmental Specifications

• Cable: Short Tail RG58

• Connector: N Female

• Radiating Element Material: Aluminium

• Reflector Material: Aluminium

• Radome Material: UABS

• Colour: White

• Weight: 0.65kg

• Dimensions: 170*150*50mm (L x W x H)
