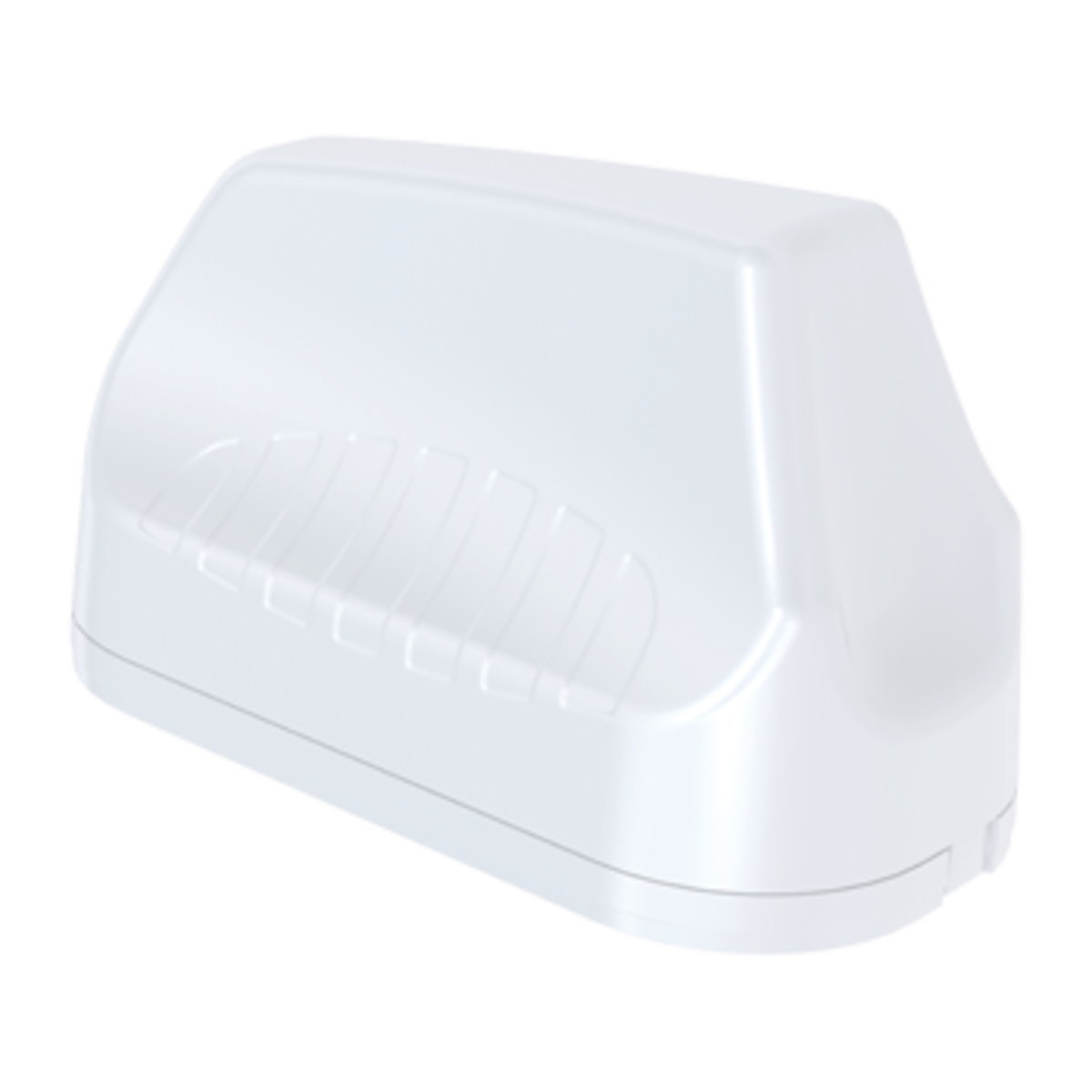

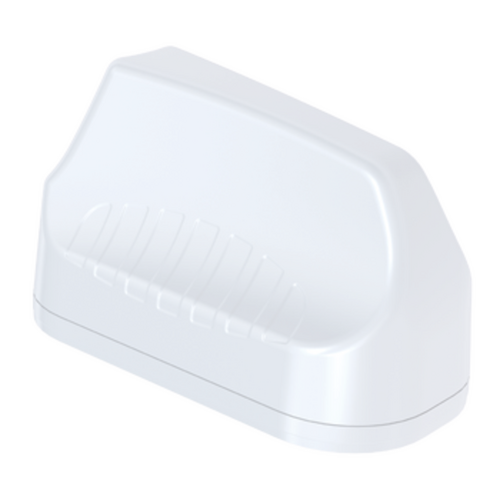

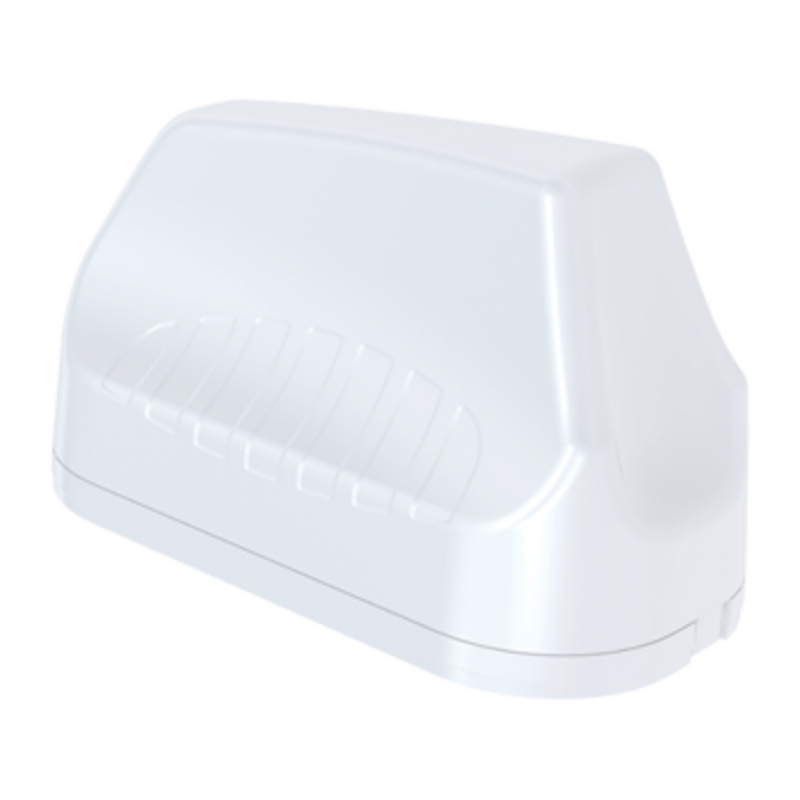

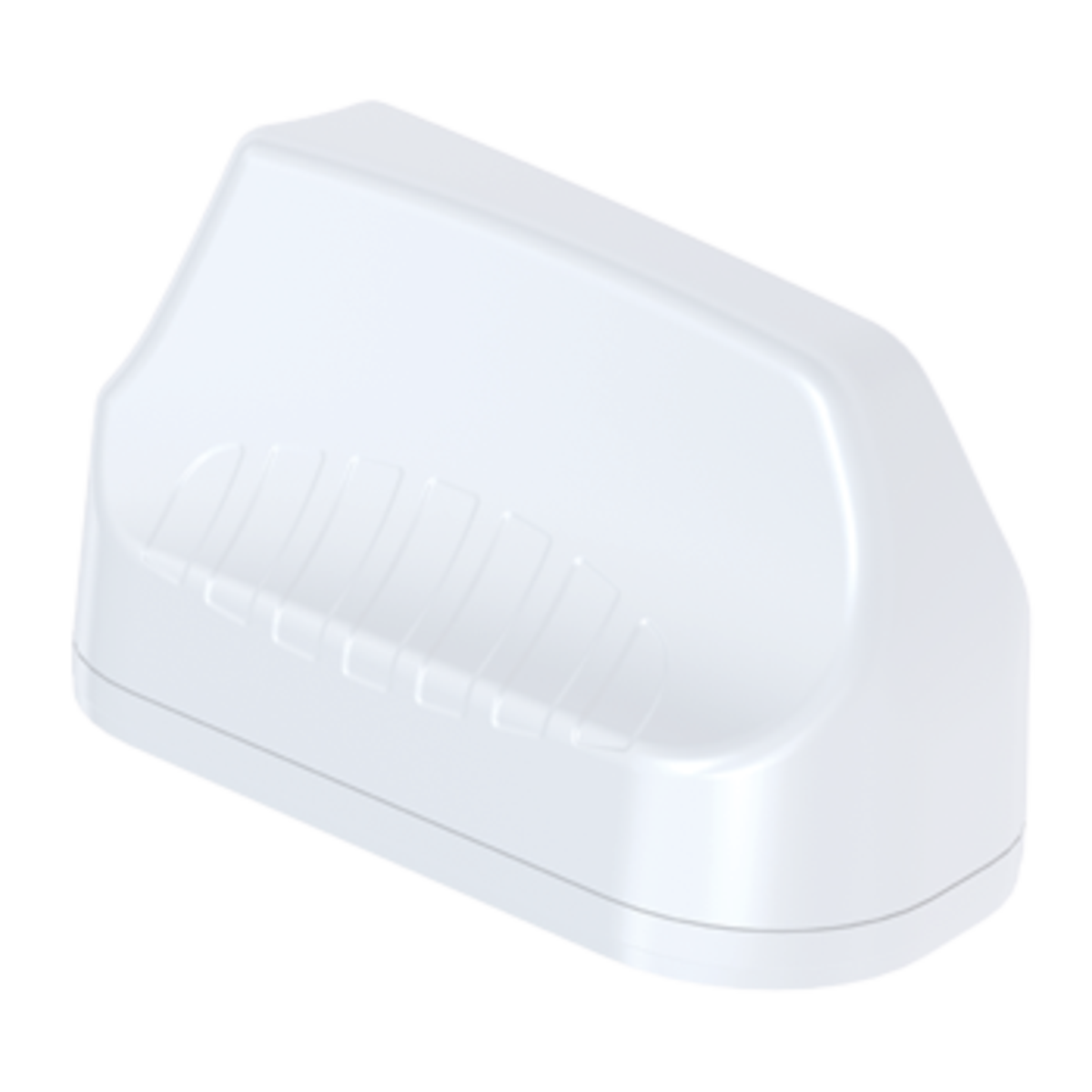

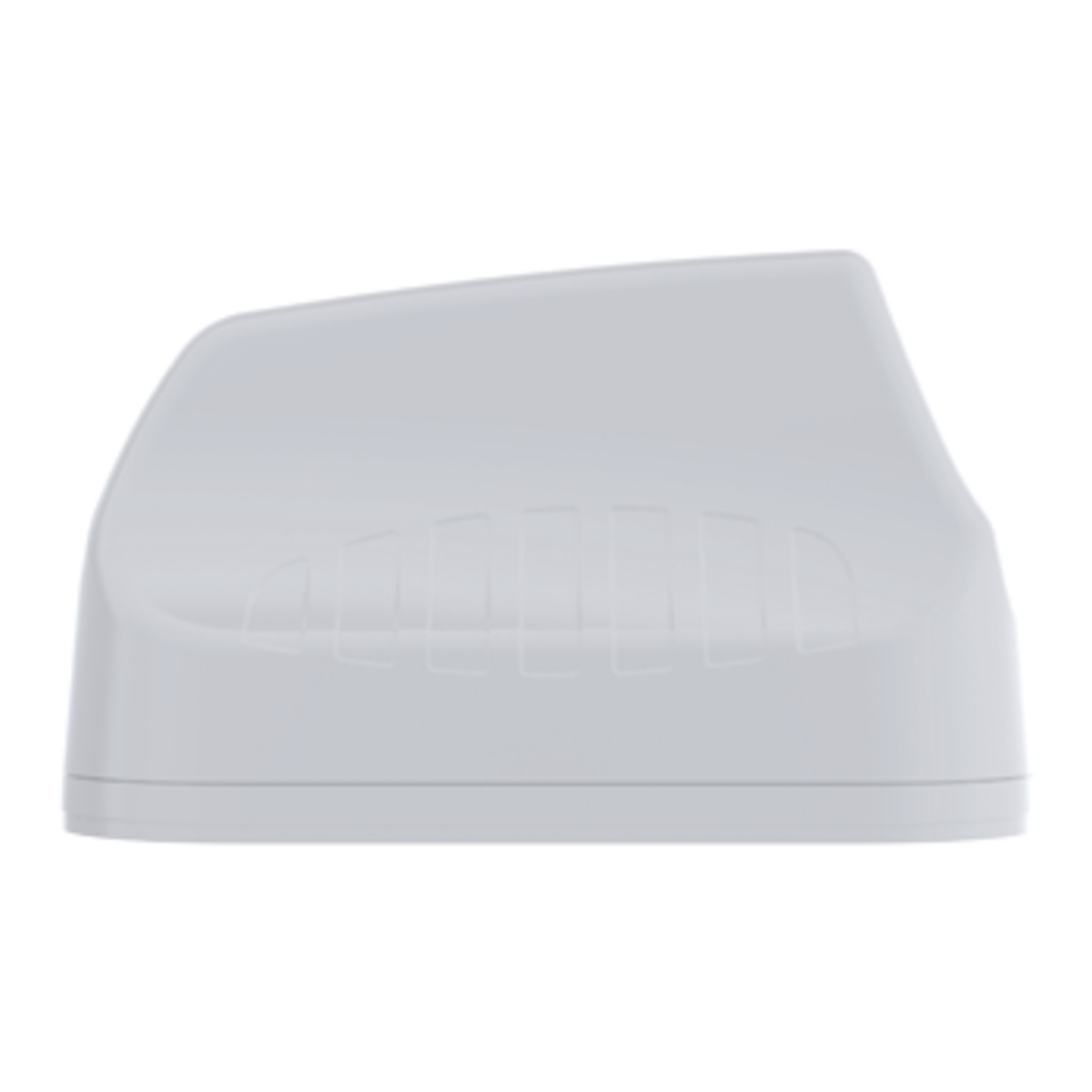

Poynting 2-In-1 5G/LTE 2x2 MIMO Transportation & Automotive Antenna (410-3800 MHz); 5.8dBi, White

Key Features

• 2-in-1 High Performance Multi Frequency 2G/3G/4G/LTE/5G Antenna
• Ultra-wideband, includes 450 MHz and 3.5 GHz 5G bands
• Robust and water-resistant antenna (IP69K)
• Ideal for transportation and marine use
• Multi mounting options for easy installation

Application Areas

• Transport broadband, automation and telemetry for buses, utility, trucks and public safety vehicles

• Industrial factory automation, robotic machinery and other M2M systems telemetry

• Farming & agricultural automation such as M2M & IoT

• Broadband cellular distribution for marine / boats (inland and near coastal vessels)

• Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)

Product Overview

• The MIMO-3-12 is a 2-in-1 high performance multi frequency antenna within a single housing. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.
• The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications.
• The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna.
  The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation.
• This is an important criterion for the transportation and marine market. which the antenna was specifically designed for.
• Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

Specifications / Frequency

Electrical Specifications

• Frequency Range: 410-470MHz / 617-960MHz / 1427-1517MHz / 1710-2700MHz / 3400-3800MHz

• Gain (max): 1dBi / 3.5dBi / 4dBi / 5.8dBi / 4dBi

• Impedance: 50&Omega

• VSWR: <2.5:1

• Feed Power Handling: 10W

• Vertical Beamwidth: See specification sheet

• Polarisation: Vertical

Mechanical/Environmental Specifications

• Construction: UV Stable ASA

• Cable: 2m HDF195

• Connectors: SMA Male

• Weight: 1.2kg

• Ingress Protection Rating: IP69

• Operation Temperature: -40°C to 80°C

• Humidity: Non-condensing 5-95%

• Salt Spray: MIL-STD 810G/ ASTM B117
