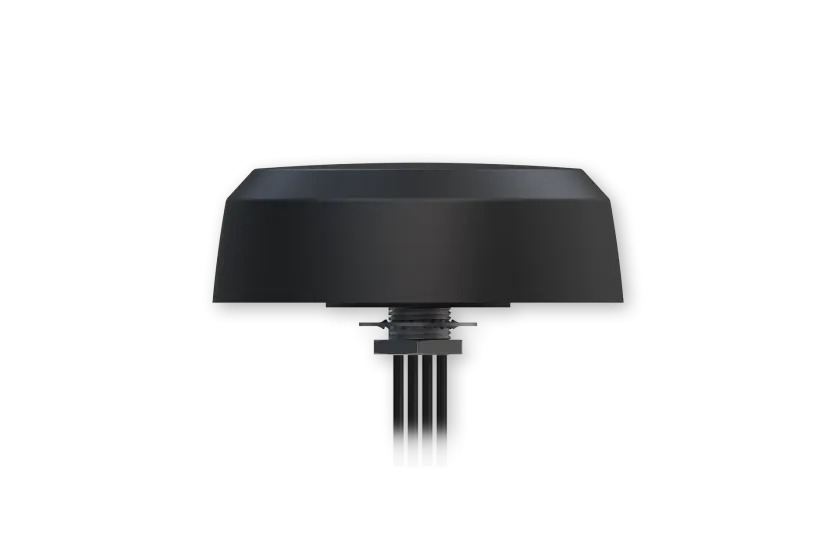

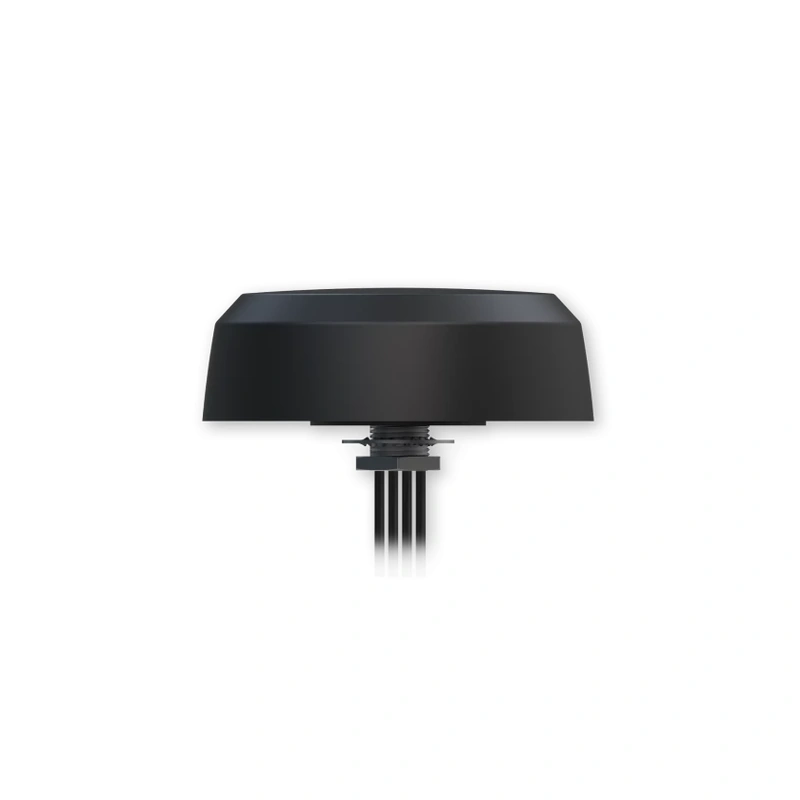

Teltonika 5G MuMiMo (4x4) Low Profile Mobile Antenna



Key Features

  • Suitable for 4G & 5G Networks

  • 4x4 MuMiMo

  • Low profile 57mm height

  • IP67 Rated

  • M27 stud offers ease of installation in the field



Usage

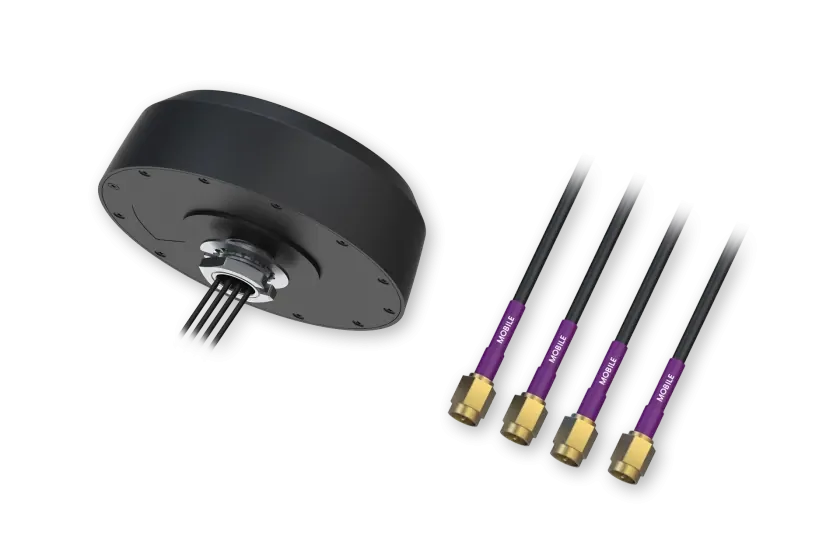

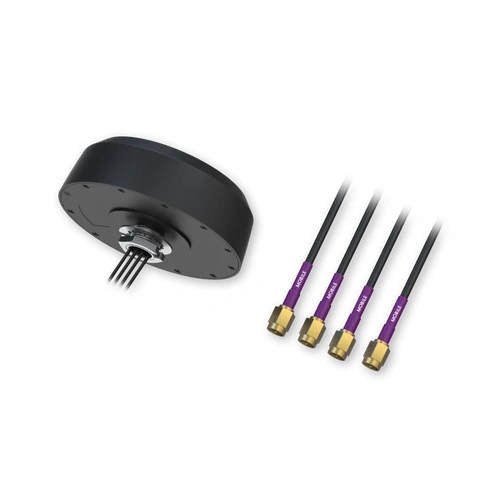

  • The PR1KC647 incorporates 4 antennas in a single, ruggedised low profile housing.

  • With a MuMiMo 4x4 5G/4G/3G antenna covering all cellular bands which provides increase data speed.

  • The main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the PR1KC647 provides a robust, antenna that is durable



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
4dBi
Optus 4G+ (700MHz)
compatible
4dBi
Telstra Next-G™ (850MHz)
compatible
4dBi
Vodafone 4G+ (850MHz)
compatible
4dBi
Optus Regional 3G (900MHz)
compatible
4dBi
Vodafone Regional 3G (900MHz)
compatible
4dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
4dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
4dBi
802.11 b/g/n WiFi (2400MHz)
compatible
4dBi
Telstra Metro 4GX (2600MHz)
compatible
4dBi
 Metro 4GX (2600MHz) compatible 4dBi
5G N78 (3500/3600MHz) compatible 4dBi


Electrical Specifications



  • Cellular Frequency Range: 600-1400MHz /1400-6000MHz

  • Input Impedance: 50Ω

  • Power Rating: 10W

  • Cellular VSWR: <3:4

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications

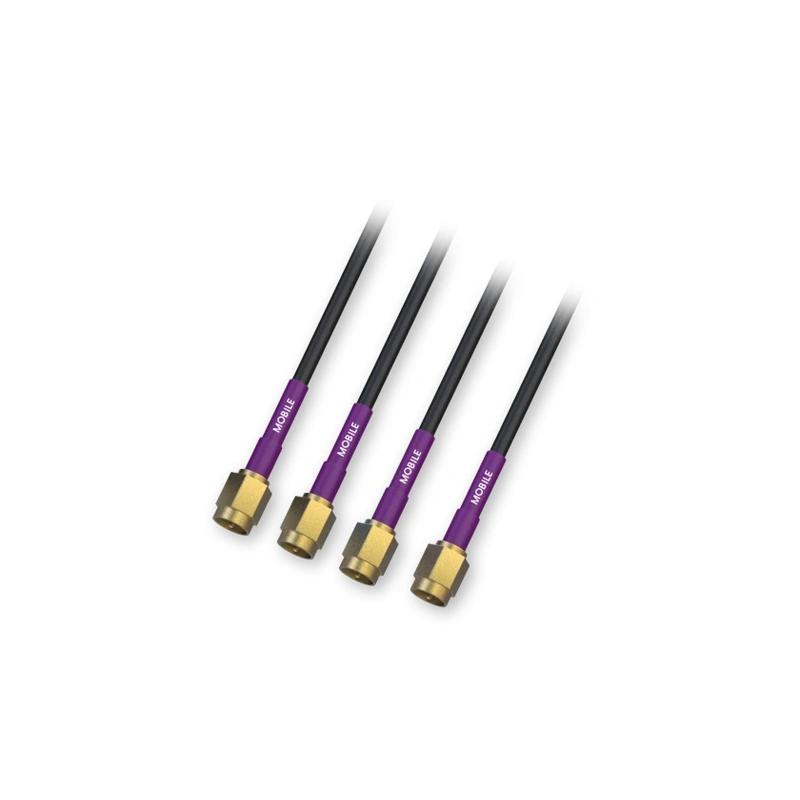

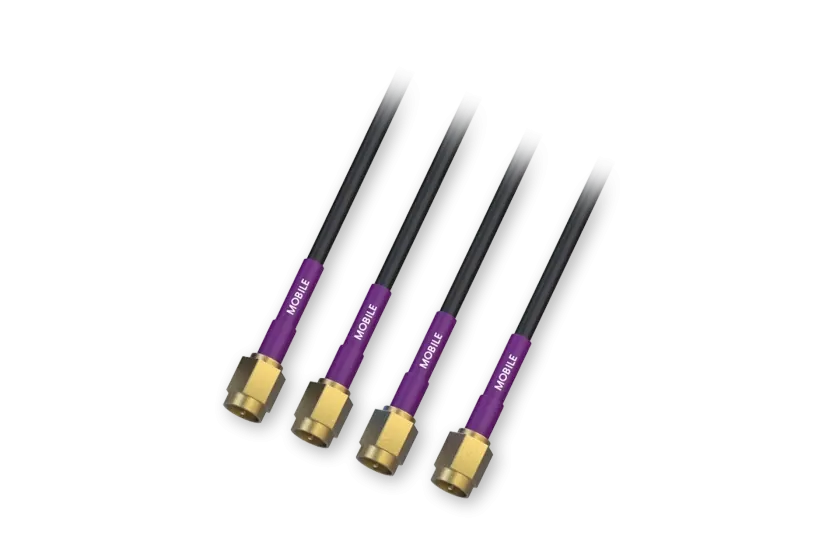

  • Cellular Cable: 3m ALS302

  • Connector: SMA Male

  • Operating Tempreature: -40°C to +85°C

  • Weight: 701g

  • Dimensions: 167ø x 157 mm

  • Mounting: Panel Mount - Hole ø28 mm, panel thickness MAX 21mm



Read More

(PR1KC647)

SKU PR1KC647
Brand Teltonika
Shipping Weight 1.2000kg
Shipping Width 0.210m
Shipping Height 0.160m
Shipping Length 0.210m
Shipping Cubic 0.007056000m3
