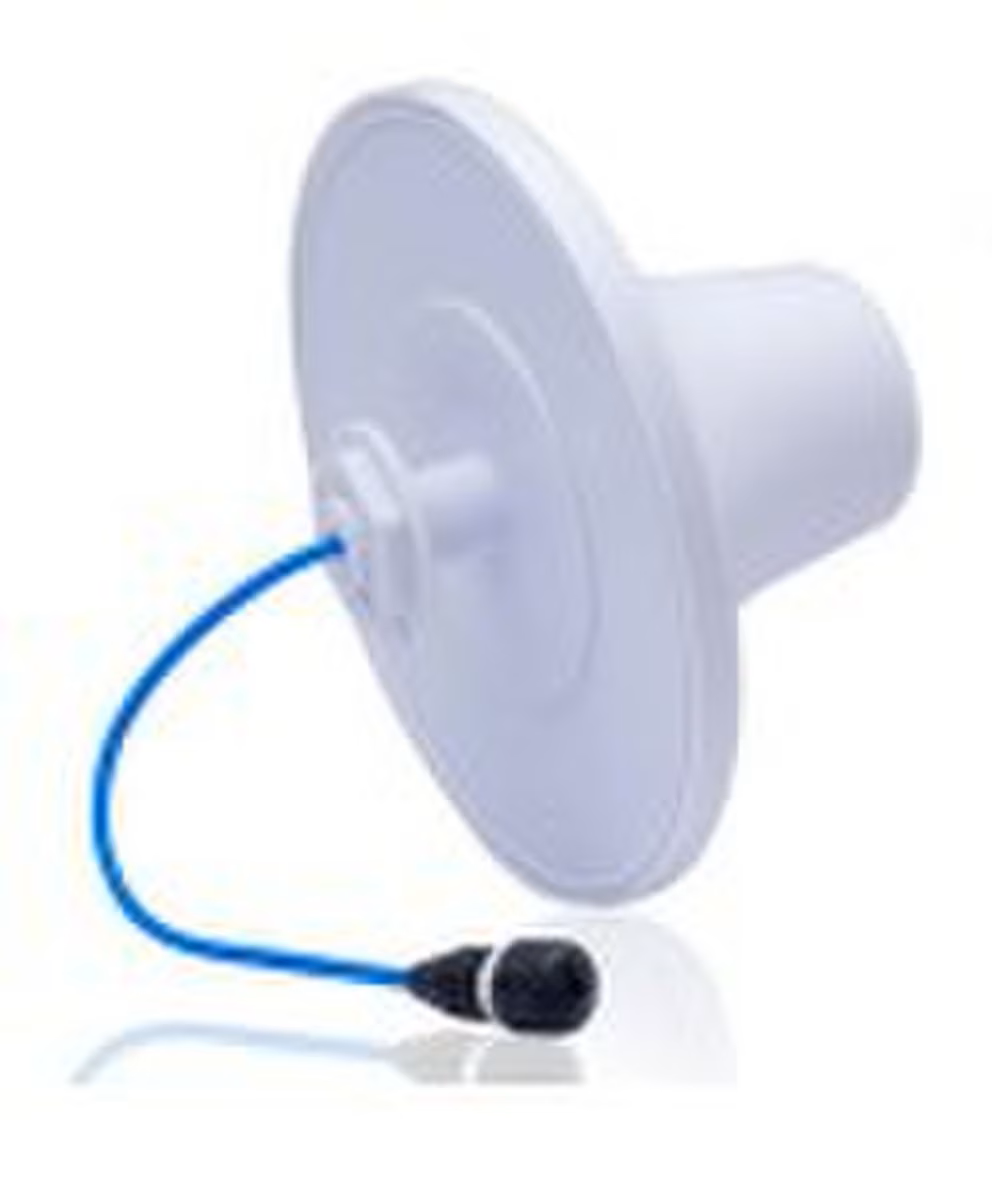

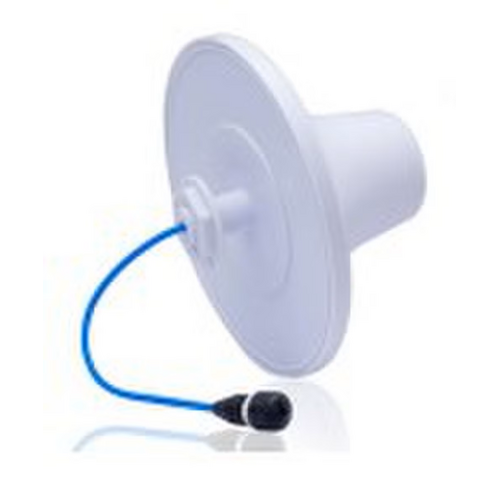

Pulse SISO Indoor Omnidirectional Antenna - 698-4000 MHz - 1.5-4.0dBi Gain



Key Features

  • Indoor Ceiling Mount, Standard Profile

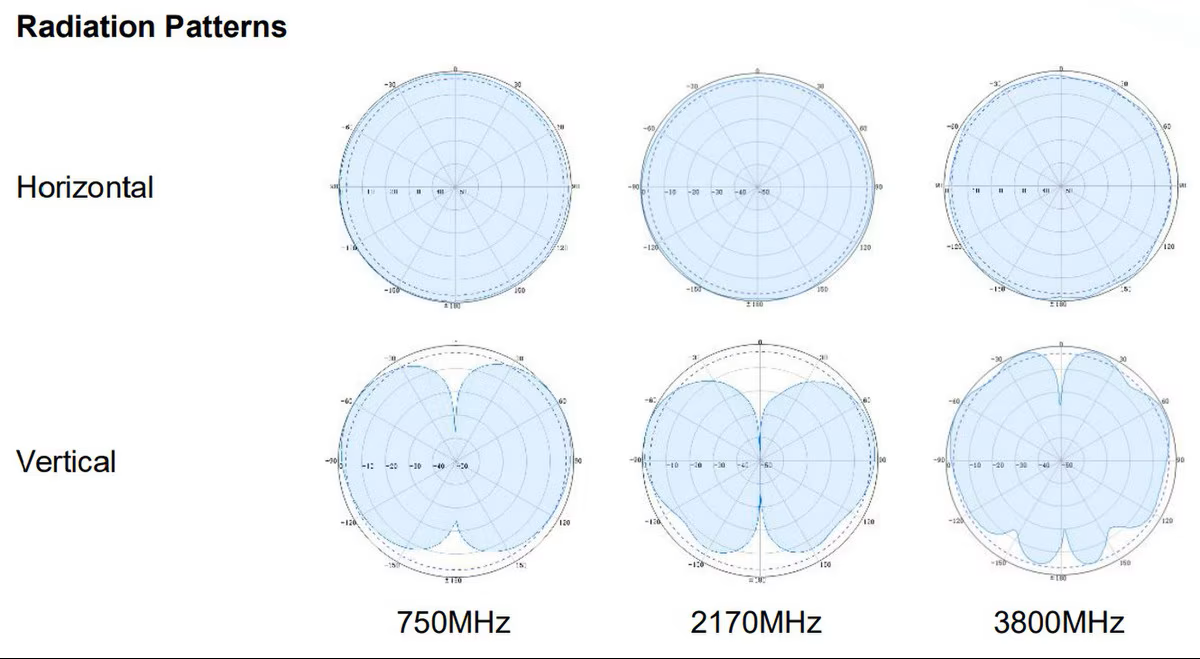

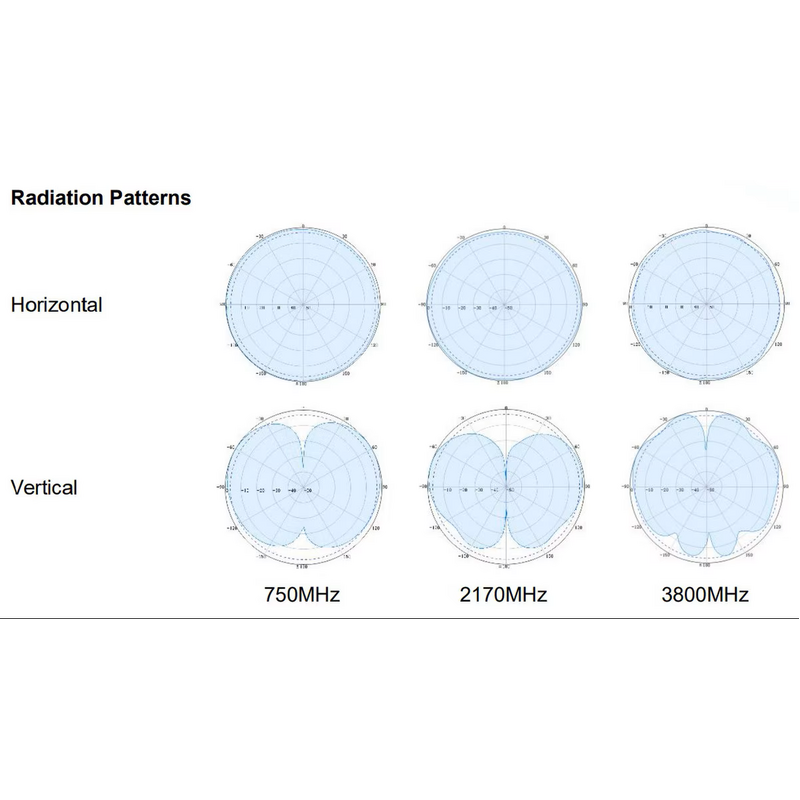

  • Omnidirectional Radiation pattern

  • 1.5-4.0dBi Gain

  • Cellular 698-4000 MHz

  • SISO connection, Type-N Straight Jack, short flexible cable tail



Usage



  • Ideal ceiling mounted drop antenna for multi-storey or multiple room coverage

  • The DAS6938-SOC150-N antenna is a high performance, PIM rated multiband omni-directional ceiling mount antenna, covering 689-960 MHz, 1710-3800 MHz

  • The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.



Specifications / Frequency

Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2700MHz / 3300-4000MHz

  • Max Gain: 1.7dBi / 3.0dBi / 4.0dBi

  • Input Impedance: 50 Ω

  • VSWR:  <2.0:1 / <1.5:1 / <1.8:1

  • Horizontal Beamwidth: 360°



Mechanical/Environmental Specifications

  • Construction: ABS White

  • Cable: 300mm

  • Input Connector: N Female

  • Weight: 0.4 kg

  • Dimensions: 125 x 204mm (H x Ø)

  • Mounting: Ceiling



Read More



(P-DAS6940-OMNI-NF)

SKU P-DAS6940-OMNI-NF
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
