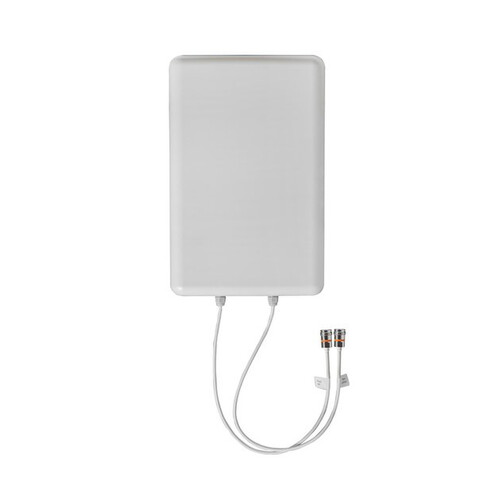

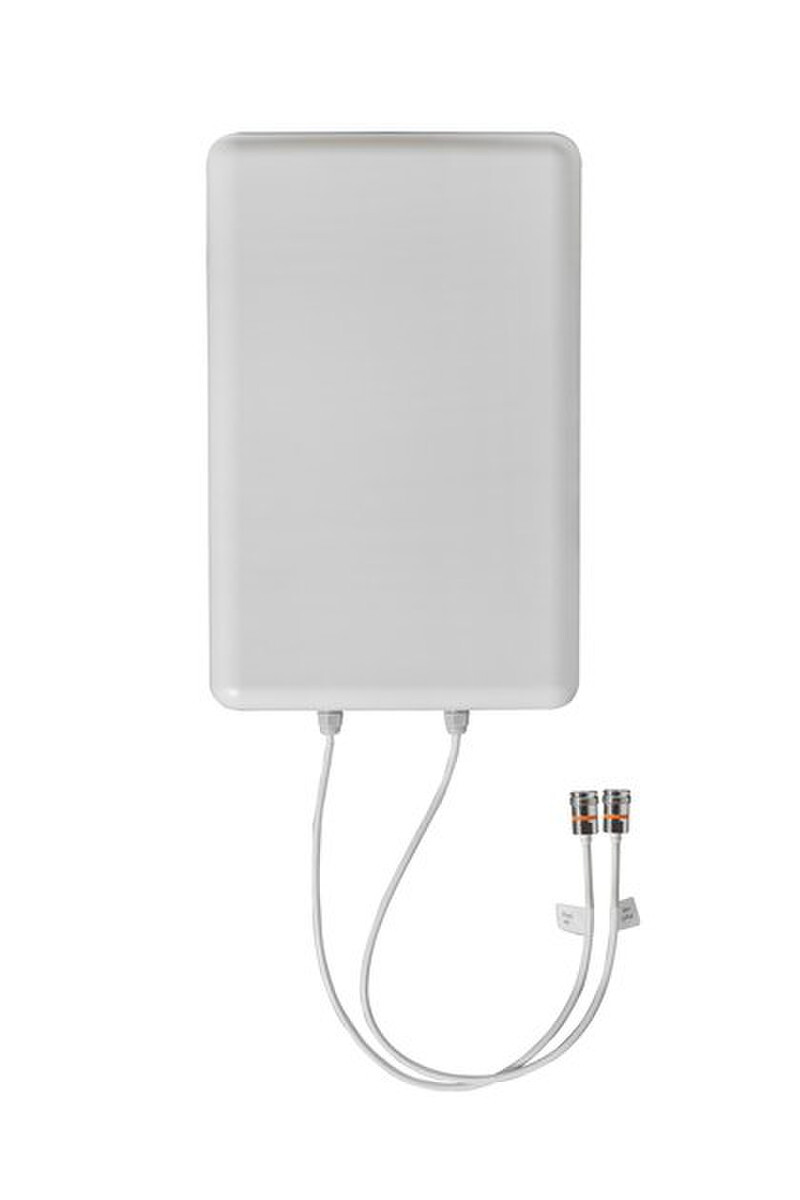

CommScope Low PIM Directional MIMO In-Building Antenna



Key Features



  • MiMo DAS Antenna for Multi Carrier Cel-Fi Installations

  • Full 3G, 4G and 5G band coverage

  • PIM Rated -140 dBc

  • Wall mounted.

  • Dual 300mm tail terminated with 4.3-10-type female connector



Usage



  • Ideal wall mounted antenna for multi-storey or multiple room coverage

  • The CMAX-DMF-43-WI53 antenna is a high performance, PIM rated multi-band directional panel antenna, covering 698–960 MHz, 1695– 2700 MHz and 3300-4000MHz

  • The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
7.1 dBi
Optus 4G+ (700 MHz)
compatible
7.1 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)
compatible
7.1 dBi
Telstra Next-G™ (850 MHz)
compatible
7.6 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map
compatible
7.6 dBi
Optus Regional 3G (900 MHz)
compatible
7.6 dBi
Vodafone Regional 3G (900 MHz)
compatible
7.6 dBi
Telstra/Optus/Voda 4G (1800 MHz)
compatible
8.4 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)
compatible
8.4 dBi
LTE Bands 1, 33, 34 (2100 MHz)
compatible
8.4 dBi
All Carriers - Urban/Metro 3G (2100 MHz)
compatible
8.4 dBi
Optus 4G TDD (2300 MHz)
compatible
9 dBi
LTE-TDD Bands 40 (2300 MHz)
compatible
9 dBi
802.11 b/g/n/ac WiFi (2400 MHz)
compatible
9 dBi
LTE Band 41 (2500 MHz)
compatible
9 dBi
LTE Bands 7, 38 (2600 MHz)
compatible
9 dBi
Telstra 4GX Band 7 (2600 MHz)
compatible
9 dBi
5G Band N78 (3600MHz) compatible 8 dBi



Electrical Specifications



  • Frequency Range: 698-960 / 1696-2700 / 3300-4000 MHz

  • Input Impedance: 50 Ω

  • VSWR: <1.7:1 All Bands

  • Front-to-Back Ratio: 18 dB / 20dB / 25dB

  • Polarisation: ±45°

  • Horizintal Beamwidth: 77° / 70° / 60°

  • Maximum Power: 50 Watts

  • PIM (3rd Order): -140 dBc.



Mechanical/Environmental Specifications



  • Construction: ASA+PC, UV stable

  • Cable: 300 mm RG142

  • Input Connector: 2x 4.3-10 Type Female

  • Temperature: -40 °C to +60 °C

  • Weight: 1.1 kg

  • Dimensions: 303 x 199 x 80 mm (H x W x D)

  • Mounting: Wall
