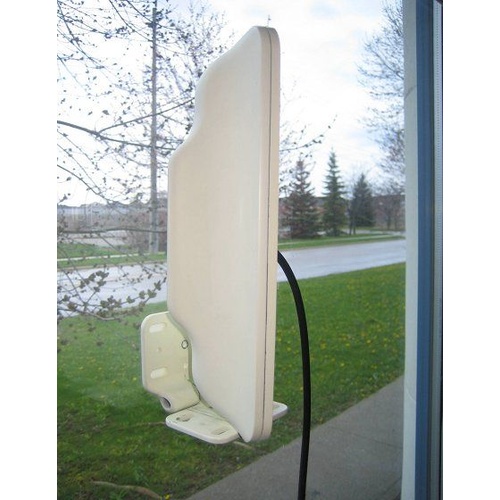

Window Mounted 3G & 4G Antenna



Key Features



  • Wide transmission angle (85 degrees)

  • Designed for use inside or outside the home

  • Easy installation and mounting

  • 5m of low loss cable with FME connector.



Usage



  • Practical for renters who cannot install a roof mounted antenna

  • Glass or wall mountable, the antenna's wide band hybrid design makes it ideal for office and home use on any network

  • Mounting kit includes a bracket, double sided tape for glass mount and thumb screw for attaching the antenna to the bracket allowing ease removal.



Where should I put the antenna?



  • Buildings with metal structures, thick walls, or foil-based insulation block a lot of signal from penetrating indoors, meaning conventional indoor antennas are not suitable

  • This antenna solves this common issue, all you need to do is:

    • find a window where signal is stronger

    • attach the antenna via its adhesive pad, and

    • connect your phone or modem with a cradle or patch lead. Simple!



Quick Tip



  • The best way to locate a good spot for your antenna is to walk around with your mobile phone and place it against each window.

  • Wait a few seconds and see if your signal naturally improves - if so, you've found a great position for the antenna, if not, try the next window. It might help to access a numerical meter on your phone - you can learn how to by reading our Guide to Assessing your Phone's Meter.

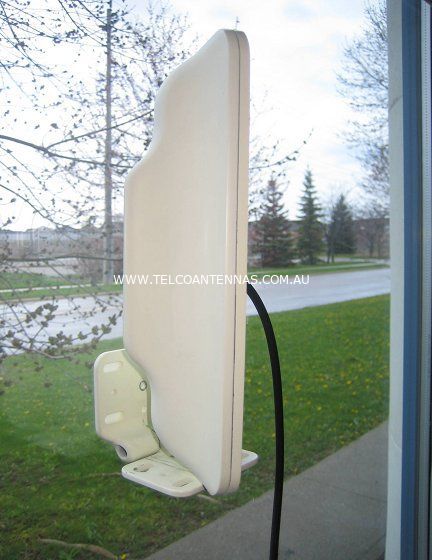

12dBi Next-G External Antenna installed indoors poor reception inside house



Specifications / Frequency

Network Compatibility

Yes/No

Gain

Telstra 4GX (700MHz)

compatible
4dBi

Optus 4G+ (700MHz)

compatible
4dBi
Telstra Next-G™ (850MHz)
compatible
8dBi
Vodafone 4G+ (850MHz)
compatible
8dBi
Optus Regional 3G (900MHz)
compatible
9dBi
Vodafone Regional 3G (900MHz)
compatible
9dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
10dBi
All carriers - Urban/Metro 3G (2100MHz) Please check your network's Coverage Map.
compatible
12dBi



Electrical



  • Frequency Range: 700-2200MHz

  • Input Impedance: 50Ω

  • VSWR:<2.6:1

  • Horizonal Beamwidth: 85 degrees

  • Front to Back Ratio: >12dB

  • Directional Maximum Power: 50 Watts



Mechanical/ Environmenal



  • Cable: SEMRC205 5m (equivalent to LMR200)

  • Connector: FME Female

  • Operating Temperature: -50°C +65°C

  • Weight: 0.425kg

  • Mount: Wall mount or Window mount

  • Dimensions: 250mm (H) x 104mm (L) x 57mm (W)



Connection



  • This antenna has a 5m cable that terminates with an FME Female connector

  • The FME female connector is the most common type of connector for mobile antennas and mates with the FME male connector found on patch leads and phone cradles.



female FME Connector



FME Female Connector - [pictured]



(12-INOUT-WIND)

SKU 12-INOUT-WIND
Brand Telco Antennas
Shipping Weight 0.7000kg
Shipping Width 0.070m
Shipping Height 0.310m
Shipping Length 0.120m
Shipping Cubic 0.002604000m3
