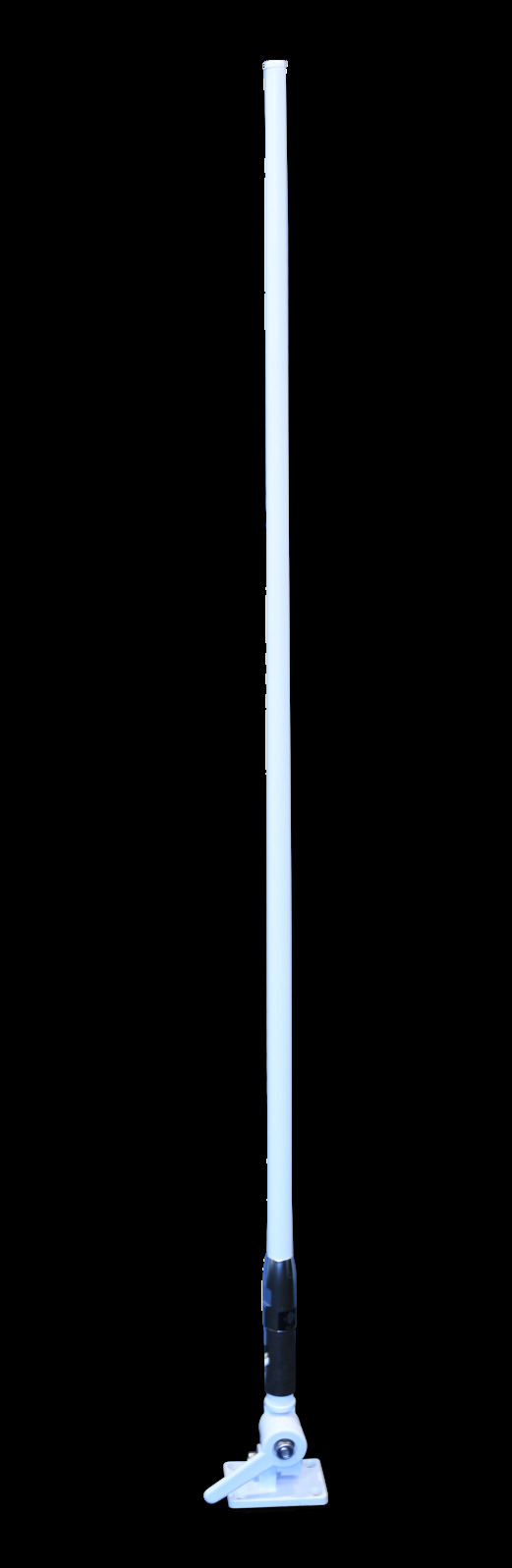

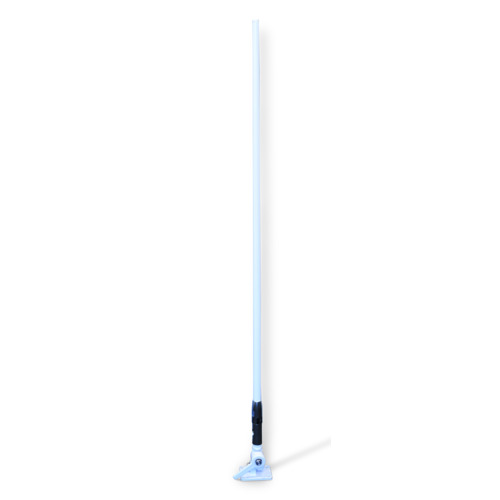

RFI 7.5dBi Folding Antenna Kit - Boat & Marine



Key Features



  • Manufactured by internationally renown antenna manufacturer, RFI, the CDQ8197 is a durable and weather resistant antenna

  • Consistently achieves an impressive gain across all Australian mobile networks

  • White construction blends in with your Boat or Vessell

  • Choose from a Deck or Rail Mounted Ratchet Mount

  • The ratchet mount folds 180 degrees flat for minimal height when stored



Usage

  • The 7.5dBi Gain is perfectly suited for Marine Applications, with reported usage out 100km+ off the Coast.

  • As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive signal.

  • The 20° vertical beamwidth offered by the CDQ8197 will help to alleviate any issues with Rolling Seas.

  • The CDQ8197 is Capable of Servicing the Entire 3G & 4G Network the setup is perfectly suited for Phone or Data Applications

  • The CDQ8197 is supplied with a 5m RG58 Tail Terminating to an SMA Male

  • For Longer Cable Runs we recommend shortening the Tail via our Cable Modification Service and then using a single long run of Super Low Loss Cable



Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
7.5dBi
Optus 4G+ (700MHz)
compatible
7.5dBi
Telstra Next-G™ (850MHz)
compatible
7.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
7.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
7.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
7.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4.5dBi
Optus 4G TDD (2300MHz)
compatible
5.5dBi
Telstra 4GX (2600MHz)
compatible
5.5dBi
All Networks 5G (3500MHz) compatible 6.5dBi




Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700 / 3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 20° / 30° / 20° / 15°

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications

  • Construction: Fibreglass radome, PCB Radiator, black electro-polished stainless steel spring

  • Cable: 5m Cellfoil 9006 low loss coaxial

  • Connector: SMA Male

  • Length: 1210mm

  • Weight: 1.1kg



A heads up!

  • This product is over 1100mm long and can only be delivered by a courier (not Australia Post), therefore, we cannot accept a PO Box.

  • Please provide an address where someone will be present to sign for the package.



Connection

This antenna has a 5m cable that terminates with an SMA Male connector

The SMA Male is the most common type of connector for mobile antennas and mates with the SMA Female connector found on the Cel Fi Repeaters & our various patch leads.

If you would like a shorter length of cable, or a different connector, please email us so we can customise this antenna for you.
