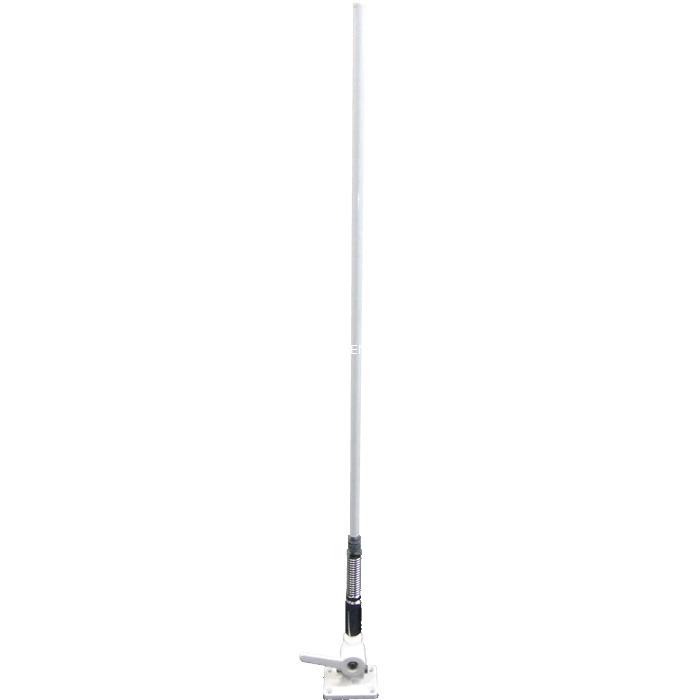

RFI 7.5dBi Folding Antenna Kit - Caravan, Camper or Motorhome



Key Features

  • Manufactured by internationally renown antenna manufacturer, RFI, the CD8197 is a durable and weather resistant antenna

  • Consistently achieves an impressive gain across all Australian mobile networks

  • Ideal for new 5G/LTE networks with true multi-band coverage.

  • Multiband covering all of the 3G, 4G & 5G frequencies currently in use

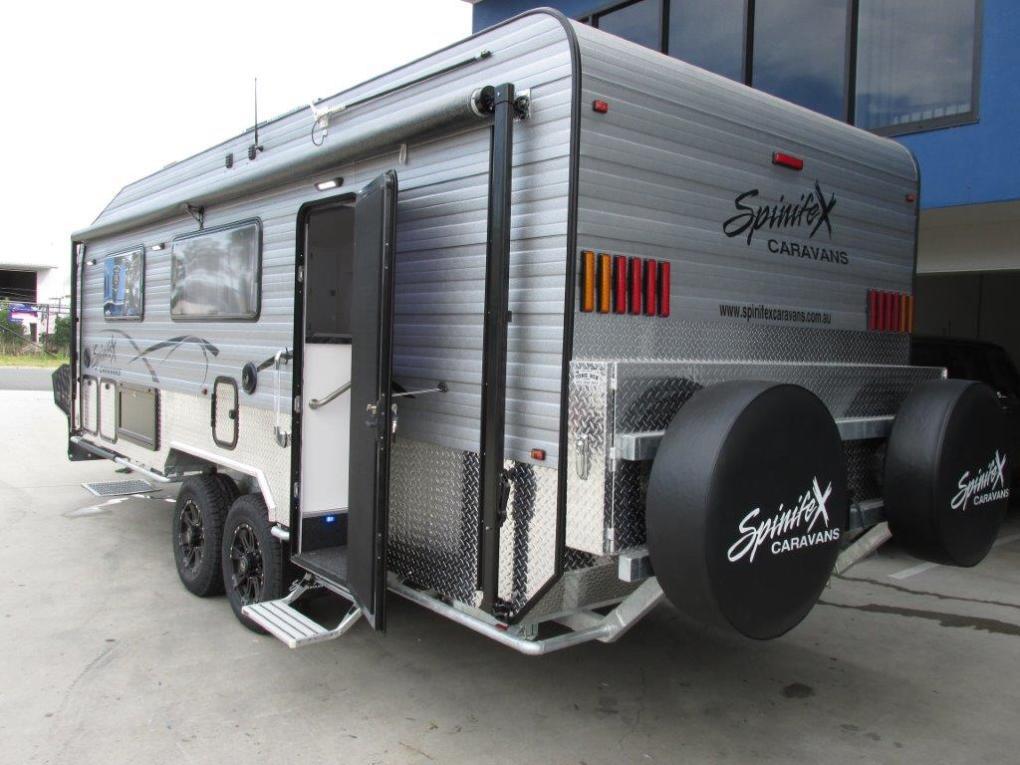

  • White construction blends in with your caravan or motor-home

  • At 114cm, it's the ideal length for practical mounting and storage

  • The kit includes a solid white nylon swivelling ratchet mount and 13mm chrome adaptor, allowing easy attachment and removal of the high gain antenna

  • The ratchet mount folds 180 degrees flat for minimal height when travelling

  • A stainless steel steel antenna holder (supplied with this kit) can be mounted on the side of the van for antenna support when travelling.



Usage

  • As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive signal

  • In hilly areas, cell towers are usually located at the peak of the hill, and if you've got a very high gain antenna (like 9dBi) chances are the antenna won't have a tall enough angle to receive from the tower

  • The CD8197's 7.5dBi gain is an excellent compromise between high/low gain, making it the ideal antenna if you live or work in remote areas - low enough to work when you're in town and travelling through hilly areas, but truly comes to life when out in remote and flat areas.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
7.5dBi
Optus 4G+ (700MHz)
compatible
7.5dBi
Telstra Next-G™ (850MHz)
compatible
7.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
7.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
7.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
7.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4.5dBi
Optus 4G TDD (2300MHz)
compatible
5.5dBi
Telstra 4GX (2600MHz)
compatible
5.5dBi
All Networks 5G (3500MHz) compatible 6.5dBi




Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700 / 3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 20° / 30° / 20° / 15°

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications

  • Construction: Fibreglass radome, PCB Radiator, black electro-polished stainless steel spring

  • Cable: 5m Cellfoil 9006 low loss coaxial

  • Connector: SMA Male

  • Length: 1160mm

  • Weight: 0.7kg



Connection

  • This antenna has a 5m cable that terminates with an SMA Male connector

 Plesae contact us if you would like a shorter length of cable or a different connector and we will customise this antenna for you.
