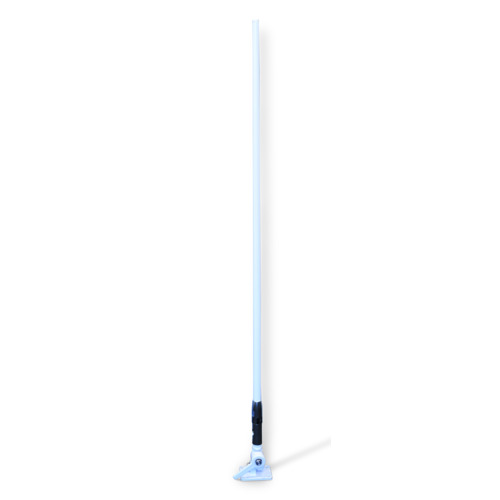

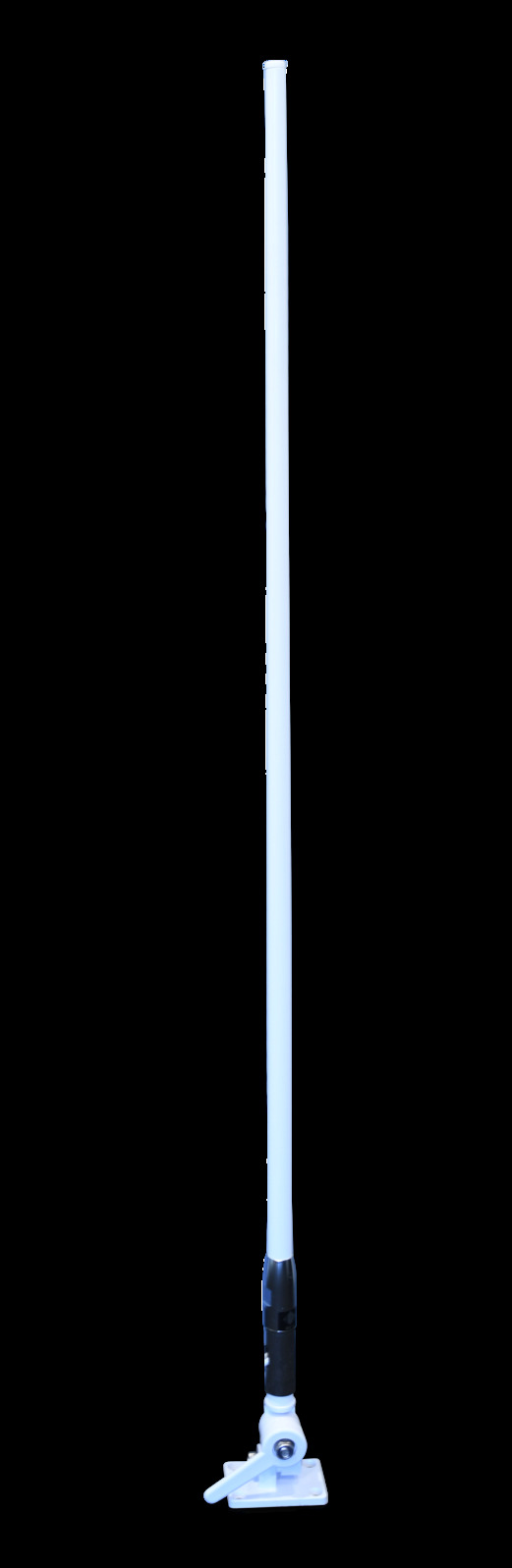

RFI 7.5dBi Folding Antenna Kit - Boat & Marine



Key Features



  • Manufactured by internationally renown antenna manufacturer, RFI, the CD7197 is a durable and weather resistant antenna

  • Consistently achieves an impressive gain across all Australian mobile networks

  • White construction blends in with your Boat or Vessell

  • Choose from a Deck or Rail Mounted Ratchet Mount

  • The ratchet mount folds 180 degrees flat for minimal height when stored



Usage

  • The 7.5dBi Gain is perfectly suited for Marine Applications, with reported usage out 100km+ off the Coast.

  • As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive signal.

  • The 20° vertical beamwidth offered by the CD7197 will help to alleviate any issues with Rolling Seas.

  • The CD7197 is Capable of Servicing the Entire 3G & 4G Network the setup is perfectly suited for Phone or Data Applications

  • The CD7197 is supplied with a 5m RG58 Tail Terminating to an FME Female Connector

  • For Longer Cable Runs we recommend shortening the Tail via our Cable Modification Service and then using a single long run of Super Low Loss Cable



Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
7.5dBi
Optus 4G+ (700MHz)
compatible
7.5dBi
Telstra Next-G™ (850MHz)
compatible
7.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
7.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
7.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
7.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4.5dBi
Optus 4G TDD (2300MHz)
compatible
5.5dBi
Telstra 4GX (2600MHz)
compatible
5.5dBi



Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 28° / 28° / 27°

  • Maximum Power: 10Watt



Mechanical/Environmental

  • Construction: Fibreglass radome, PCB Radiator, black electro-polished stainless steel spring

  • Cable: 5m Cellfoil 9006 low loss coaxial

  • Connector: FME Female

  • Length: 890mm

  • Weight: 0.572kg



RFI logo



(CD7197-W-MARINE)

SKU CD7197-W-MARINE
Brand RFI
Shipping Weight 3.0450kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.200m
Shipping Cubic 0.012000000m3
