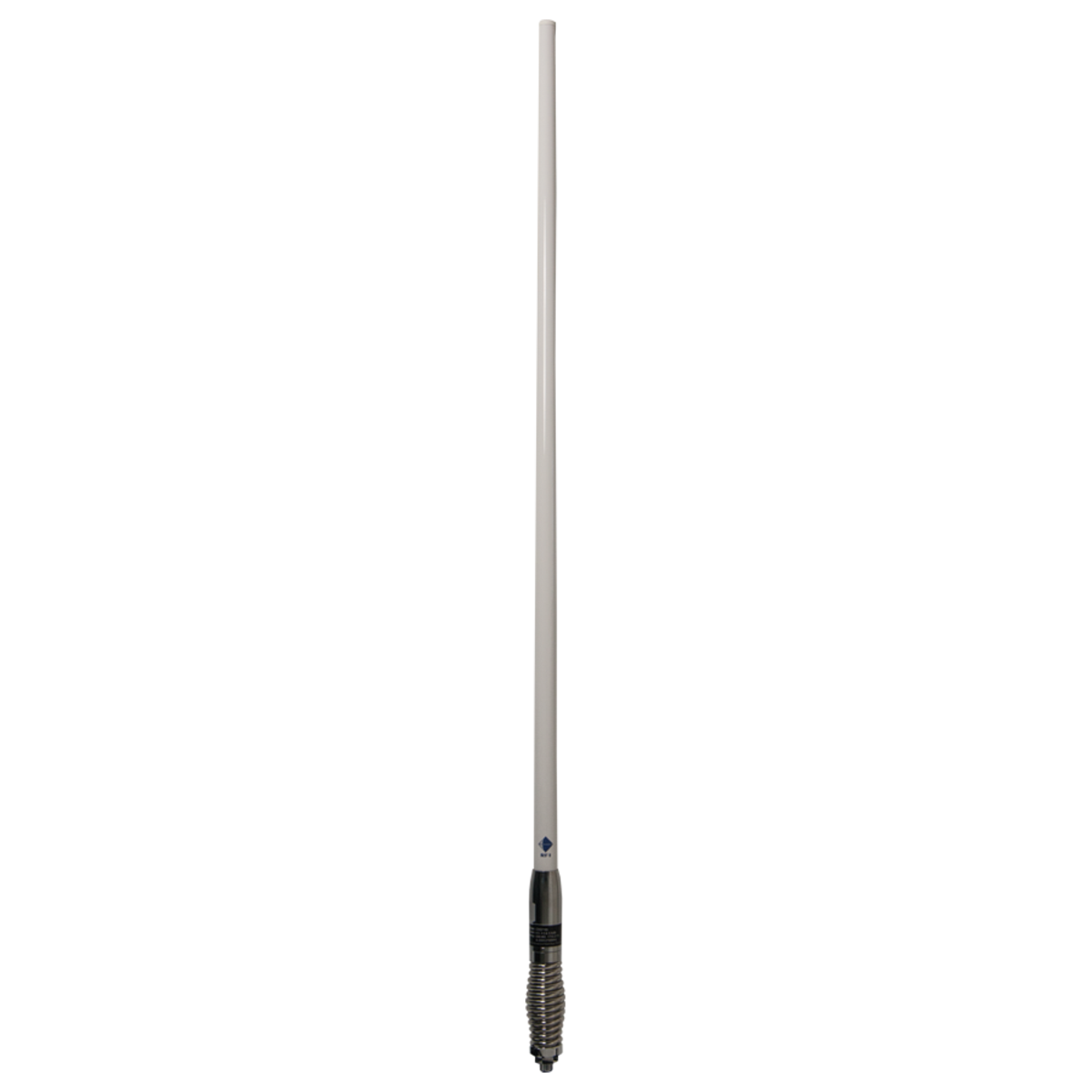

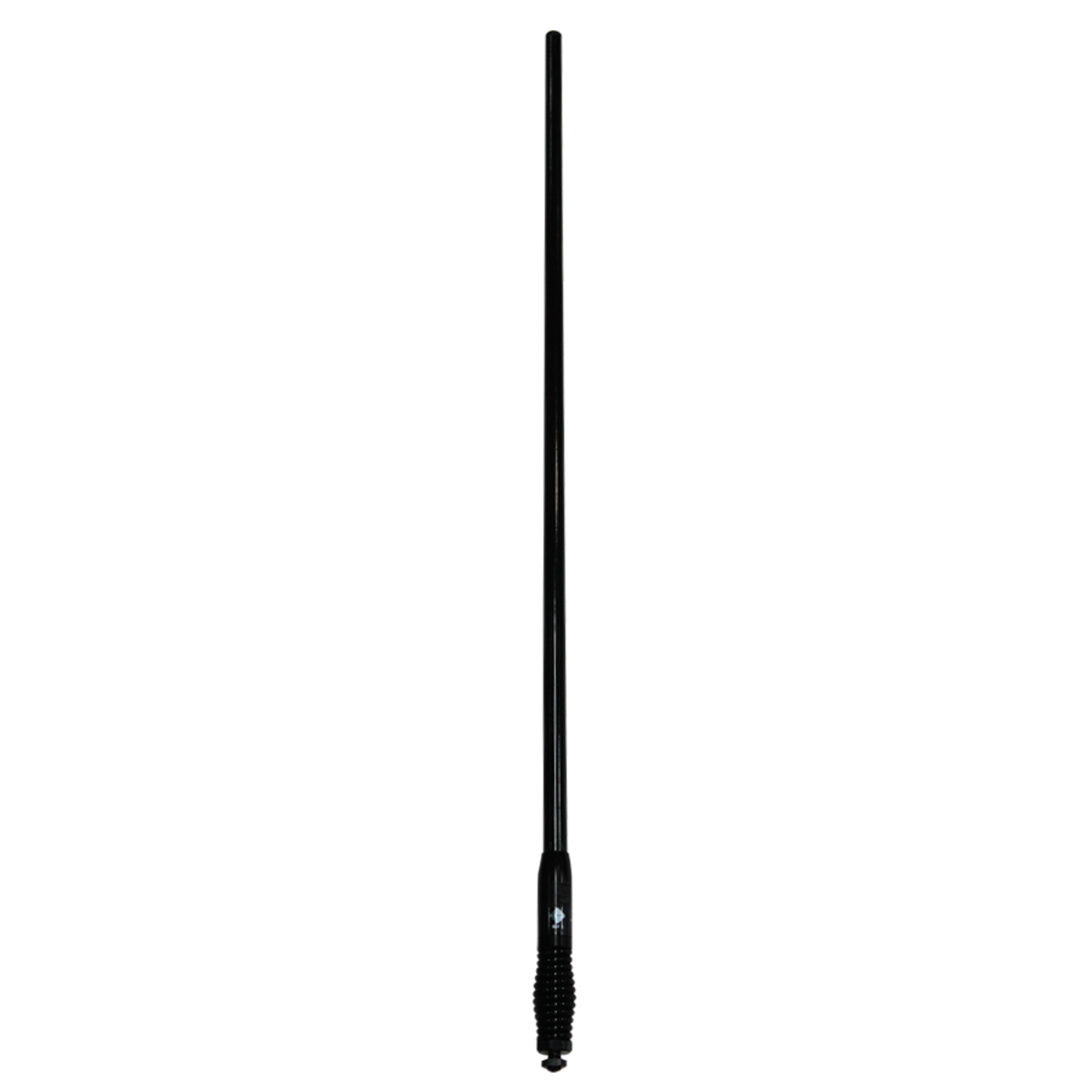

RFI CDQ5000 UHF/CBRS Aerial with Quick Removable Whip


Key Features


  • Suits all Uniden, GME, Oricom, and other major brand radios

  • Heavy duty electro-polished stainless steel spring

  • Compact 1010mm height design - Quick removable Q-Fit™ whip system

  • Available in both black and white

  • Extremely robust fibreglass radome antenna with marine grade chrome plated brass and stainless steel fittings

  • The CDQ5000 is a high gain mobile UHF CB antenna providing genuine 5 dBi gain and is ideally suited for use in fringe areas and country applications where performance is critical

  • Its rugged design and tough construction makes it a highly prized asset in even the harshest environments

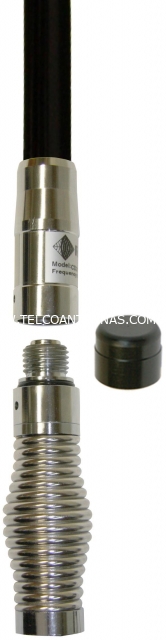

  • The quick removable Q-Fit™ whip system is designed for fast and simple removal when entering low height areas, car washes or for antenna security

  • When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas.




  • This rugged & extremely robust antenna is ideally suited to 4WD bullbar mounting

  • With a 13mm stud mount and ground plane independant design, this antenna may be installed onto a number of mounting brackets such as mirror mounts, bull bar mounts, gutter mounts or fender mounts

  • Ideal for installing in commercial vehicles, four wheel drives and trucks

  • The CDQ5000 can even be used as a base station antenna due to its ground plane independent design. NB: The CDQ8000 has a heavier spring base and is recommended for all replacement whip or whip combinations

  • The CDQ5000 has a lighter spring base and the placement of the CDQ8000 whip is not recommended on this spring base.

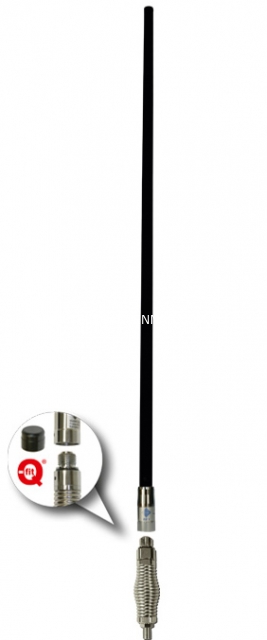

Q-Fit CDQ5000 high gain UHF CB antenna removable whip q-fit whip system


Specifications / Frequency


Electrical Specifications


  • Frequency Range: 476-477MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 33 degrees

  • Maximum Power: 25Watts.


Mechanical/Environmental Specifications


  • Construction: Fibreglass radome, extra heavy duty stainless steel spring assembly

  • Cable: 5m Cellfoil 9006 (RG58)

  • Connector: FME Female with UHF adaptor

  • Length: 1010mm

  • Weight: 1.15kg

  • Mounting hole diameter: 13mm.




  • This antenna has a 5m cable that terminates with an FME Female connector

  • The FME Female connector is a smaller 6mm connector which makes routing through the vehicle firewall easier than standard UHF connectors

  • A UHF connector for attaching to your UHF radio is supplied.


female FME Connector

FME Female Connector [pictured]


  • Please contact us if you would like a shorter length of cable, or a different connector, and we will customise this antenna for you.
