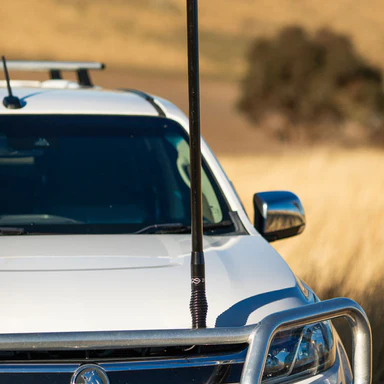

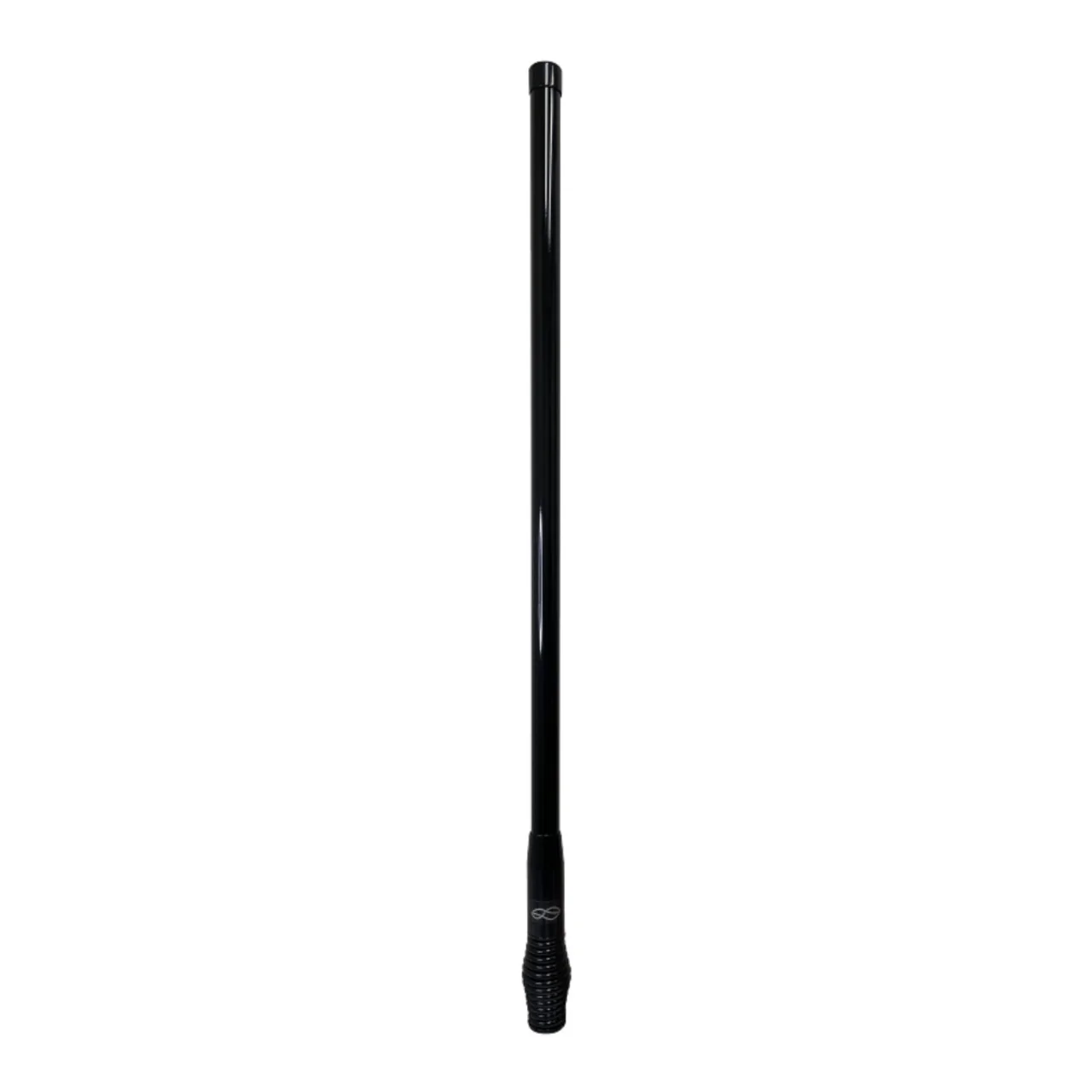

Zetifi Cellular (4G/5G) Smart Antenna - 1050mm Black



Key Features

  • Dual gain antenna whip offers high and low gain modes in a single antenna.

  • Battery protection and monitoring via Zetifi Smart Antenna app.

  • Integrated GPS sensor detects vehicle location for coverage optimisation in real-time.

  • Proprietary ZetiLinkTM terrain and coverage dataset loaded onto processor memory.

  • Onboard data processor determines optimal gain and/or band configuration for location.



Additional Information

  • Location-aware Smart Antennas for signal repeaters and cellular gateway devices.

  • Welcome to a groundbreaking advancement in antenna technology - location-aware antennas that seamlessly adjust to their environment.

  • Driven by the cutting-edge ZetiLinkTM technology, Zetifi Smart Antennas utilize onboard sensors, a dual gain antenna whip, and an integrated data processor to enhance coverage.

  • The Smart Antenna identifies whether you are in flat or hilly terrain by utilizing a pre-loaded terrain map and automatically alternates between high and low gain modes in real-time to optimize signal for your repeater or cellular gateway.

  • Experience unparalleled coverage with the convenience and superior performance of a Zetifi Smart Antenna.



Specifications / Frequency

Antenna Performance

  • Frequencies: 698-960 MHz, 1710-2700 MHz, 3400-3800 MHz
  • Antenna Gain 3dBi in low gain mode 6dBi in high gain mode
  • Vertical Beamwidth: 40/40/30 in low gain mode 30/30/20 in high gain mode
  • VSWR: <2.5:1 @ 698-960 MHz, <2.5:1 @ 1710-2700 MHz, <2.5:1 @ 3400-3800 MHz
  • Nominal Impedance 50 Ω

Processor Electrical

  • Input Voltage: Min 12V DC to Max 18V
  • DC Input Current: 60 mA
  • Input Power: 0.7 W

Mechanical

  • Construction: Fibreglass whip with reconfigurable low/high gain PCB antenna element Steel ferrule with integrated PCB ZetiLinkTM controller board Bellied spring
  • Mounting: M14 threaded stud & nut
  • Mounting Hole: 16mm mounting hole
  • Dimensions Height: 780mm total / 690mm antenna whip Width: 33mm (antenna whip) / 56mm (spring) / 42mm (base)
  • Weight: 1116g antenna weight / 2310g package weight with cabling
  • Integrated antenna cables: 145mm RG316 low loss coaxial cable terminated with SMA male connector 215mm 20AWG automotive power cable terminated to bullet connectors
  • Battery cable: 2500mm 16AWG automotive power cable with 3A blade fuse terminated to bullet connectors (antenna end) and 8.5mm lugs (battery terminal end)
  • Coaxial cable: 4360mm LMR195 coaxial cable terminated to SMA female (antenna end) and SMA male (device end)

Read More



(ANCA1101AU-01)

SKU ANCA1101AU-01
Brand Zetifi
Shipping Weight 1.4000kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.999m
Shipping Cubic 0.004895100m3
