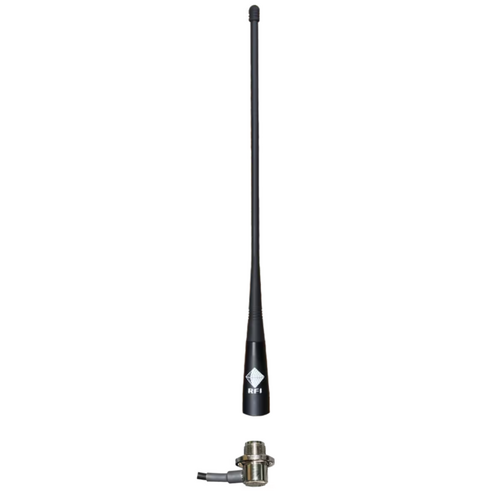

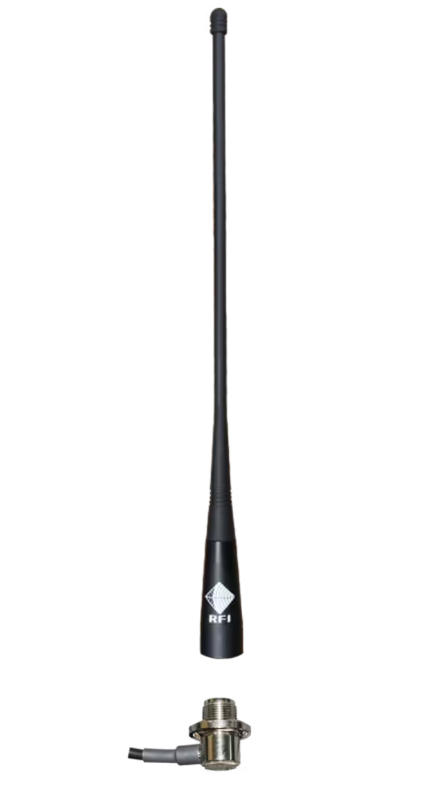

RFI UHF CB 4dBi Mopole 477MHz Antenna; MBC 5m FME(F) UHF(A)

The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.

Features:

  • Ground plane independent design allows installation in almost any location
  • Available in stud or MBC mount
  • Robust UV stable base & flexible whip

Specifications:

Length [mm] 345
Frequency MHz 476 - 477
Tuned Bandwidth Full. No tuning required
VSWR <1.5:1
Power [W] 50
Band 477MHz
Tuning Supplied pre-tuned
Cable And Connector 5.0m RG58C/U cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor.
Whip Length mm 345
Whip Material Stainless Steel braid over moulded with UV resistant TPU
Nominal Gain dBq 4
Antenna Type Collinears, Ground Independent
Antenna Application Vehicle Antenna
Antenna Configuration SISO

(CD34-71-53)

SKU CD34-71-53
Brand RFI
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.380m
Shipping Cubic 0.003800000m3
