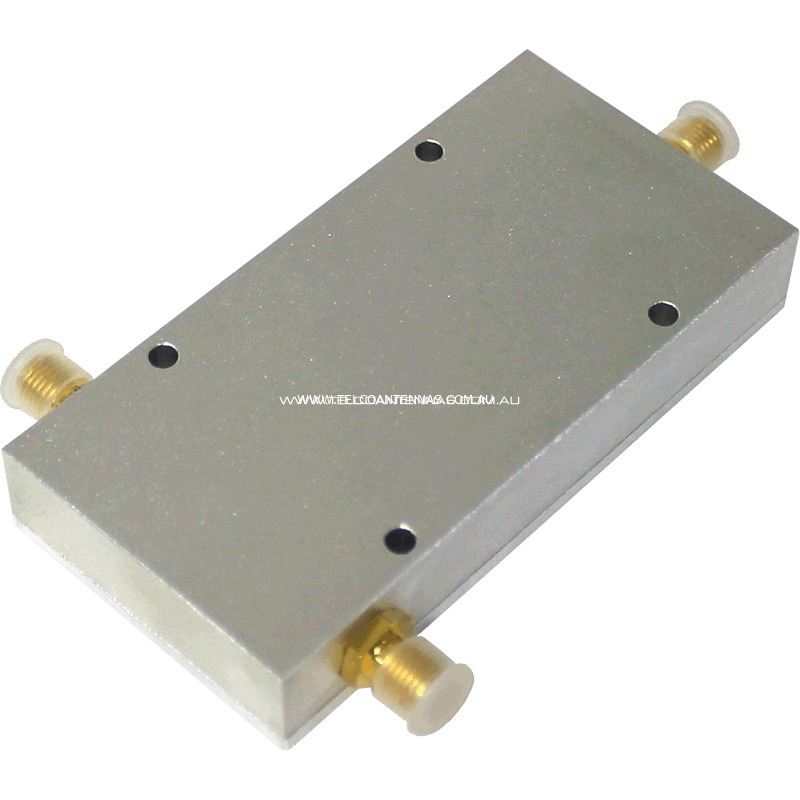

Wideband Signal Splitter with SMA Female Connectors


Key Features


  • High quality directional power divider

  • Extremely wide-band design covering 600MHz to 6GHz

  • SMA Female input

  • 2x SMA Female output.




  • Covering up to 6GHz, this splitter is suitable for 5.8GHz devices

  • This is a high quality low VSWR, low insertion loss RF power divider

  • When in weak signal strength areas, it's important to use a high quality splitter to ensure efficiency losses are kept to a minimum, minimal electrical noise, and output isolation maximised

  • Poorly designed dividers can result in a signal power reduction far greater than 3dB, and signal code power reduced by significantly more.




  • The input signal is equally split into two output signals, each reduced by 3dB (i.e. halved) due to the 1:2 power division

  • A small signal loss of 0.5dB is incurred as no RF device can operate at 100% efficiency

  • When determining whether you can afford to split your signal, keep in mind that the signal will be halved between each device - the question to answer is: is your signal strong enough?

  • In very low signal areas it's often advisable to use two antennas instead of a splitter.




  • While it's possible to sum two input signals with no loss, this can only be accomplished if the input signals are identical in phase and amplitude

  • When two signals are completely out of phase (180 degrees) the signals will cancel completely, hence the statistical average for two unknown signals is a 3dB combination loss (i.e. reduced by half)

  • Utilising microstrip structure technology, this splitter has exceptional in-band flatness, high isolation, very low insertion loss, excellent standing wave performance and is easy to install.

  • Designed for cellular mobile communications and spread spectrum communications in indoor distribution systems.


Specifications / Frequency


Electrical Specifications


  • Frequency: 600-6000MHz

  • Insertion loss: <4.2dB

  • Isolation: >20dB

  • Nominal Impedance: 50Ω

  • VSWR: <1.5:1

  • Phase Balance: 5°

  • Amplitude Balance: <0.3dB

  • Max. Power: 10Watts

  • Connector: SMA Female


Mechanical Characteristics:


  • Environment temperature: -30 +70°C

  • Relative humidity: 5~95%

  • Dimensions: 79 x 39 x 13mm

  • Weight: 90g
