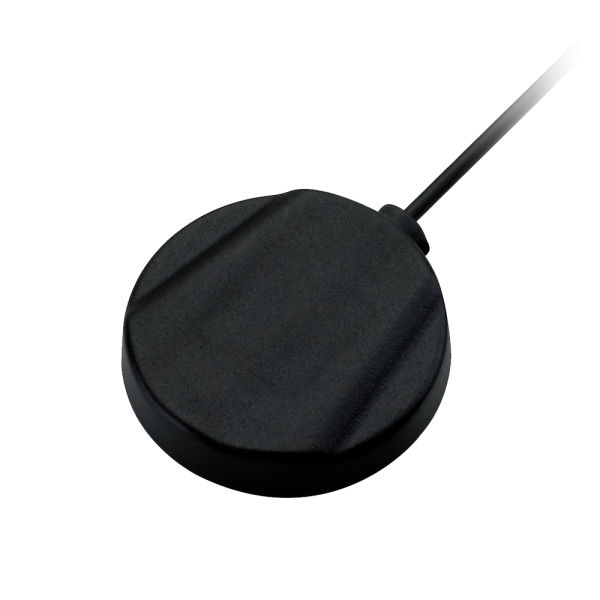

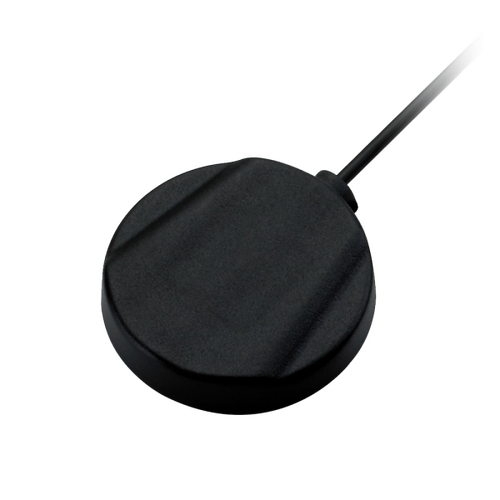

Taoglas Stingray Dual-band Wi-Fi Adhesive Mount Antenna with 3m RG-174 cable and RP-SMA(M) Connector


Key Features


  • Stingray Adhesive Mount

  • Dual Band 2.4/5.8GHz

  • Covers Frequencies required for Bluetooth, Wi-Fi and ZigBee applications

  • IP65 Waterproof Rated

  • RG-174 3M, RP-SMA(M) Plug Connector




  •  The WA.500w Stingray is a high efficiency, high gain adhesive mount dual band wireless antenna.

  • Its high quality low profile covert housing can be attached onto the glass or plastic.

  • The WA.500w is designed for applications that require omni-directional gain across both bands to ensure wide coverage area and constant reception and transmission for Wi-Fi and ZigBee applications.

  • Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

  • Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits.


Specifications / Frequency


Network Compatibility
802.11 b/g/n/ac WiFi (2.4GHz to 5GHz)


Electrical Specifications


  • Frequency Range: 2400-2500MHz / 5150-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <2.1:1

  • Radiation: Omnidirectional

  • Maximum Power: 2Watts.


Mechanical/Environmental Specifications


  • Construction: PC

  • Cable: 3m RG174

  • Connector: RP SMA Male

  • Tempreature Range: -40°C to +85°C

  • Weight: 62g

  • Dimensions: 51.4mm Dia x 11.87mm Height


Read More



taoglas logo


SKU WA.500w.301151
Brand Taoglas
Shipping Weight 0.2000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
