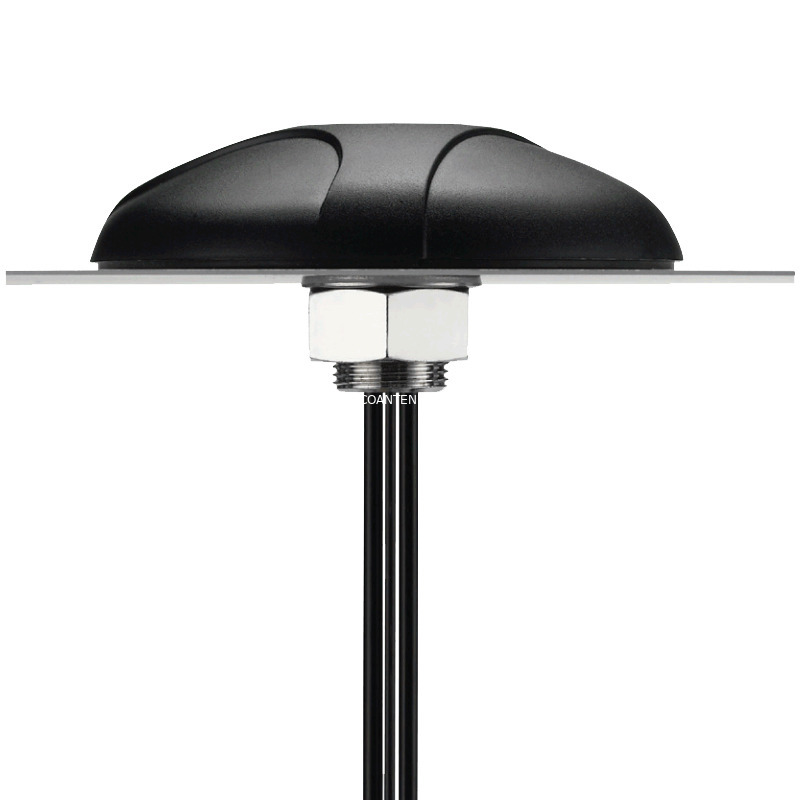

Taoglas MA600 Spartan Heavy Duty 3-in-1 Combination Antenna



Key Features



  • Covers 2G, 3G, and 4G networks

  • 2.4 & 5.8GHz dual band WiFi

  • Active GPS

  • Extremely low profile 35mm height

  • IP67, vandal & persistent attack resistant design

  • Ground plane dependent.



Usage



  • The Spartan MA.600 antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications

  • The Spartan is unique in the market because it combines a 3-in-1 GPS/GLONASS, Cellular (2G, 3G, & 4G), and dual band Wi-Fi elements inside a single heavy-duty antenna radome with high efficiency in a compact format

  • The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments

  • All while still maintaining 20dB isolation between antennas

  • It uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, with an average 0.3dB per meter - because of this, the Spartan maximises chances of passing PTCRB and network approvals first time

  • The Spartan also has excellent GPS/GLONASS reception without need to attach to an external ground-plane due to coupling to its unique own metal base

  • Connectors and cable length are customisable

  • Two Spartan MA600 antennas separated by distance are ideal for applications requiring MIMO spatial diversity.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
2.1dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
2.1dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
0dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
0dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
2.9dBi
All carriers - Urban/Metro 3G (2100MHz)
compatible
5.1dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
2.1dBi
802.11 b/g/n/ac WiFi (5800MHz)
compatible
2.8dBi



Electrical Specifications



  • Frequency Range: 824-960 / 1575.42 / 1602 /1710-2170 / 2400-2500 / 4700-5900MHz

  • Input Impedance: 50Ω

  • VSWR: <3.0:1 Cell / <2.0:1 GPS / <1.6:1 WiFi

  • Polarisation: Linear Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black PC540 radome, Nickel plated steel

  • Cable: 2x 3m LMR200, 1x 3m RG174 (GPS)

  • Connector: 3x SMA Male

  • Thermal Shock: -40°C to +85°C

  • Weight: 0.87kg

  • Dimensions: 35.1 x 145.6mm (H x Diameter)

  • Mounting: 30mm stud, 33mm mounting hole
