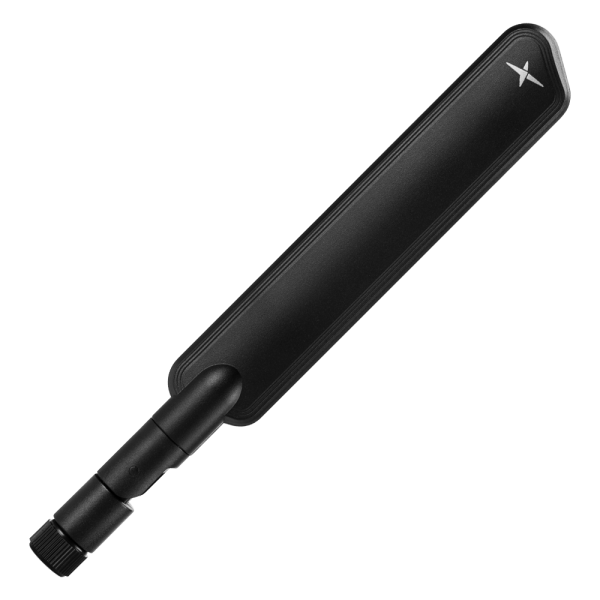

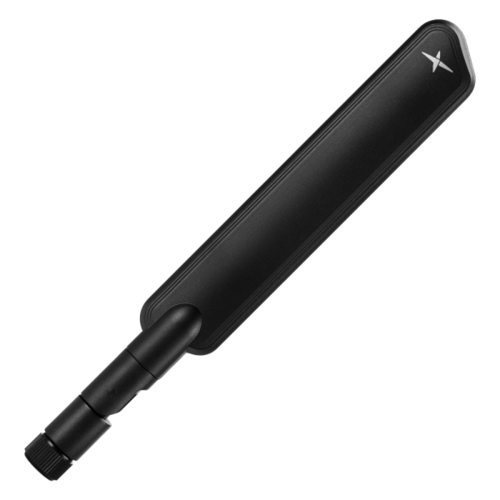

Taoglas TG.55 Hinged 600MHz-6GHz Dipole Antenna



Key Features



  • Covers Sub 6GHz 5G Bands

  • 4G/3G/2G Fallback

  • Supports WiFi & GPS frequencies

  • High Efficiency up to 80%

  • 90 degree Hinged Right Angle SMA (M) Connecter

  • Suits 2G/3G/4G/5G/WiFi/ M2M applications.

  • RoHS & Reach Compliant



Usage



  • Primarily designed for use with 4G & 5G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2G/3G/4G/5G) bands worldwide for access points, terminals and routers

  • This is a ground plane independent antenna with an SMA Male connector, with a Hinged Mount to facilitate perpindicular mounting.

  • It has a quality robust UV resistant housing (SMA connector is IP65) for use with wireless terminals

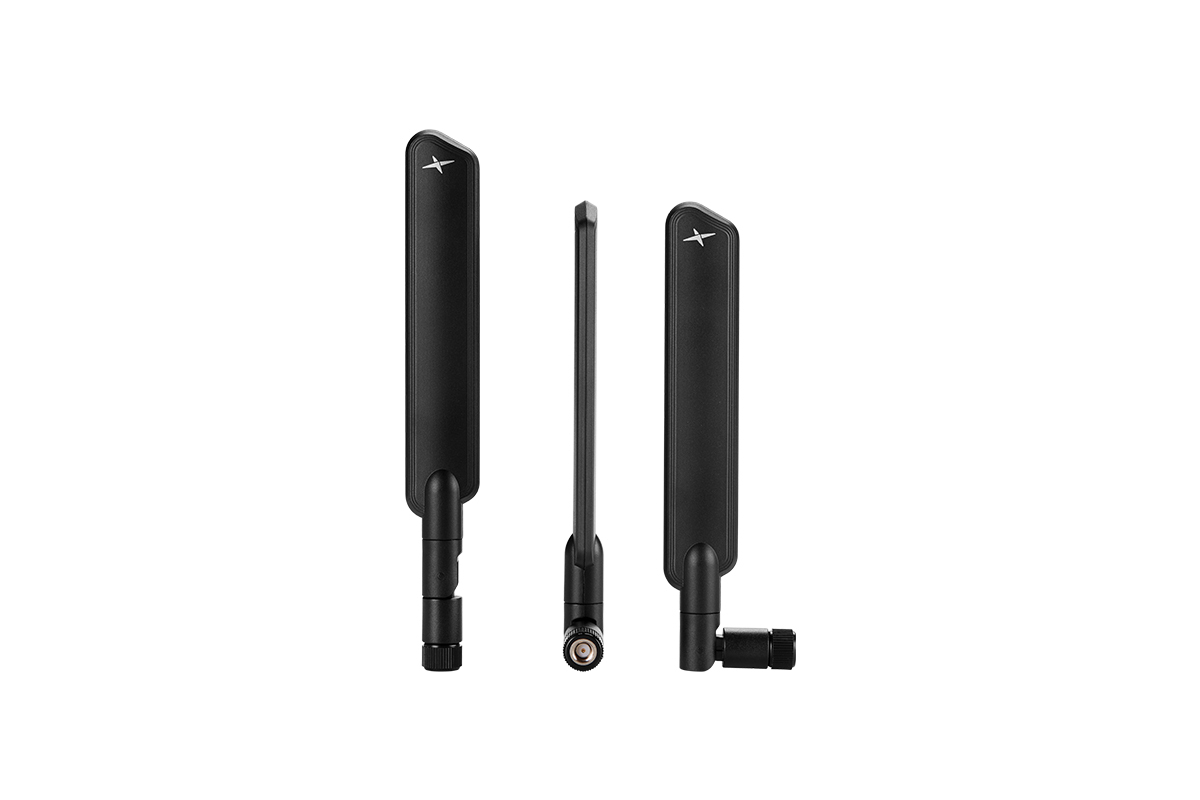

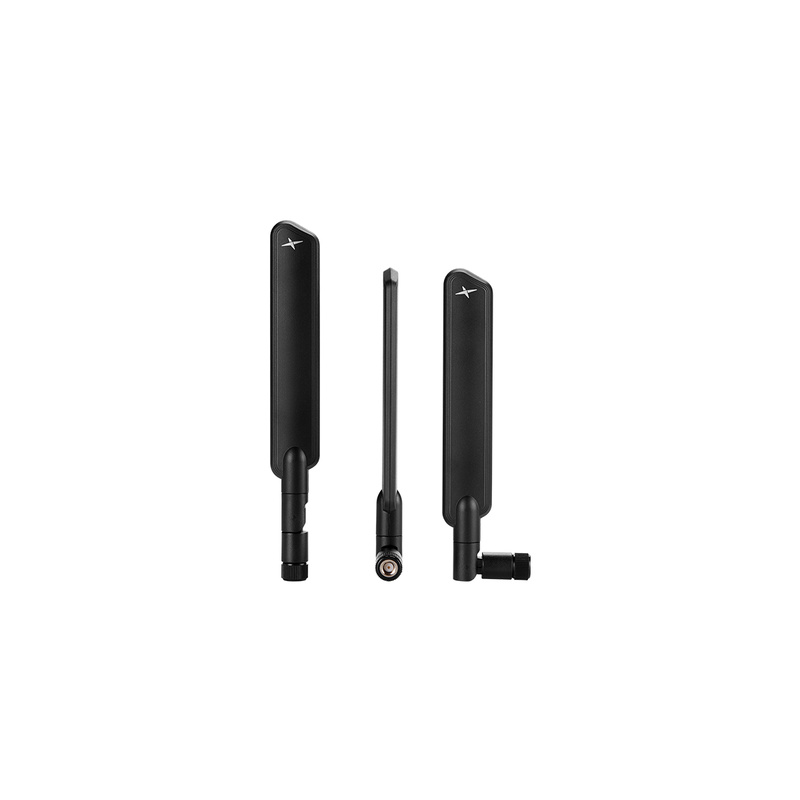

  • The swivel and hinge mechanism allows the antenna part to be orientated in different directions helping to avoid touching other close by antennas or objects - it also helps isolation by orientating the antenna in different directions in MIMO systems for when other TG.55 antennas are present on the same device



Specifications / Frequency



Network Compatibility
Yes/No
Telstra 4GX (700MHz)
compatible
Optus 4G+ (700MHz)
compatible
Telstra Next-G™ (850MHz)
compatible
New Vodafone 4G (850MHz)* *Please check Vodafone Coverage Map
compatible
Optus Regional 3G (900MHz)
compatible
Vodafone Regional 3G (900MHz)
compatible
Telstra/Optus/Voda 4G (1800MHz)
compatible
All Carriers - Urban/Metro 3G (2100MHz)
compatible
802.11 b/g/n/ac WiFi (2400MHz)
compatible
Telstra 4GX Band 7 (2600MHz)
compatible
Vodafone / Optus / Telstra 5G (3500MHz) compatible
5GHz WiFi  compatible



Electrical Specifications



  • Frequency Range: 617-698MHz / 698-824MHz / 1427-1518MHz / 1563-1587MHz / 1710-1880MHz / 1920-2170MHz / 2300-2690MHz / 3300-3500MHz & 5150-5925MHZ

  • Input Impedance: 50Ω

  • Radiation: Omnidirectional

  • Maximum Power: 2Watts



Mechanical/Environmental Specifications



  • Construction: UV Stabilised PC/ABS

  • Connector: SMA Male Hinged 90°

  • Thermal Shock: -40°C to +85°C

  • Weight: 24.3g

  • Dimensions: 172 * 23.88mm

  • Mounting: Terminal



Read More





(TG.55.8113)

SKU TG.55.8113
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.160m
Shipping Cubic 0.000400000m3
