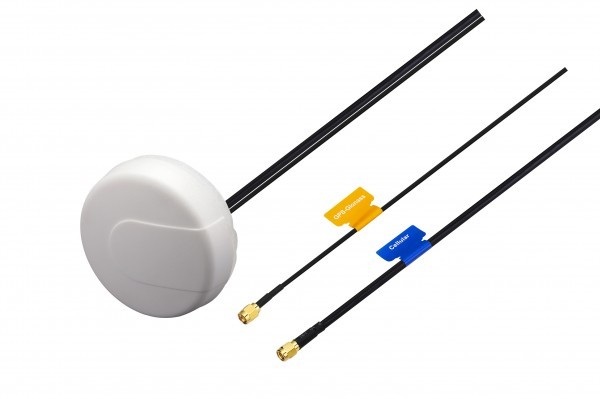

Taoglas Olympian G30 Low Profile Mobile & WiFi Antenna

Key Features

• Combination GPS & Penta Band Cellular Antenna

• Low profile 55mmØ White ABS

• IP67 ingress proof

• Compact unobtrusive form factor

• Cellular Cable - 3m CFD200 cable with SMA Male.

• GPS Cable - 3m RG174 cable with SMA Male

Usage

• The MA111 Ultima Series 2in1 GPS/GLONASS/GALILEO & Cellular Combination Antenna is an extremely low profile combination high performance GPS/GLONASS/GALILEO and penta-band cellular antenna solution for professional telematics applications.

• Omni-directional high gain across all bands ensures constant reception and transmission

• Durable UV resistant ABS housing is discrete and resistant to vandalism

• At only 22 mm height it is the lowest profile antenna in the market, with a diameter of 55 mm.

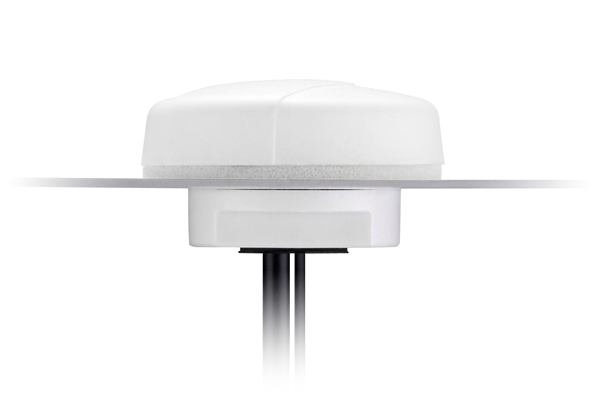

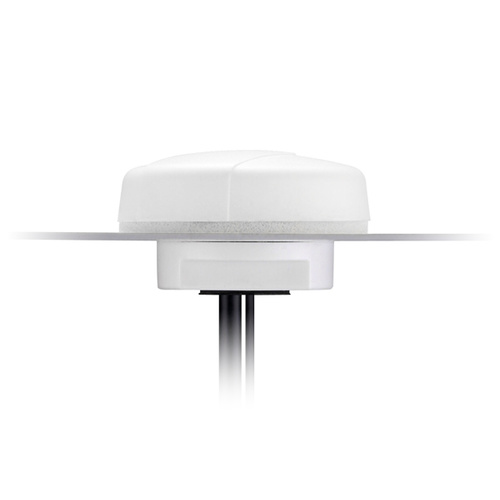

•  It is designed to be mounted and coupled to the metal structures it attaches to radiate.

• Durable UV ABS housing, thread and nut is resistant to vandalism and direct attack.

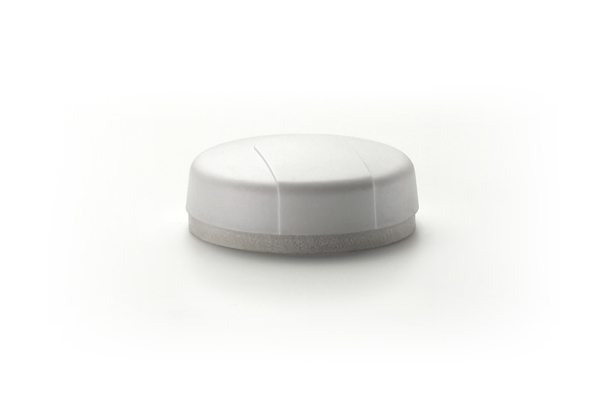

• The closed cell foam with double-sided adhesive provides a permanent waterproof seal and can adjust to different curvatures, stopping water from leaking under the antenna into the mounting hole.

Specifications / Frequency

Network Compatibility	Yes/No
Telstra Next-G™ (850 MHz)
Vodafone 4G+ (850 MHz)
Optus Regional 3G (900 MHz)
Vodafone Regional 3G (900 MHz)
Telstra/Optus/Voda 4G (1800 MHz)
2100MHz

Electrical Specifications

Cellular

• Frequency Range: 824-896 MHz / 880-960 MHz / 1710-1880 MHz / 1850-1990 MHz / 1710-2170MHz

• Input Impedance: 50 Ω

• VSWR: <3.0:1

• Vertical Beamwidth: See specification sheet

• Radiation: Omnidirectional

• Maximum Power: 5 Watts

GPS3

• Frequency Range: 1574-1606 MHz

• Input Impedance: 50 Ω

• VSWR: <.0:1

• Axial ratio: 3dB (max)

• Input Voltage(V): Typ. 2.5~5.5V

• Total Gain @ Zenith: 27dB  typical at 3.0V

• Noise figure: 1.3dB (typical)

Mechanical/Environmental Specifications

• Construction: White ABS

• Cable: 1 x CFD200 3m + 1 x RG174 3m

• Connector: SMA Male

• Thermal Shock: -40 °C to +85 °C

• Weight: 0.202 kg

• Dimensions: 30 x 55 mm (H x Diameter)
