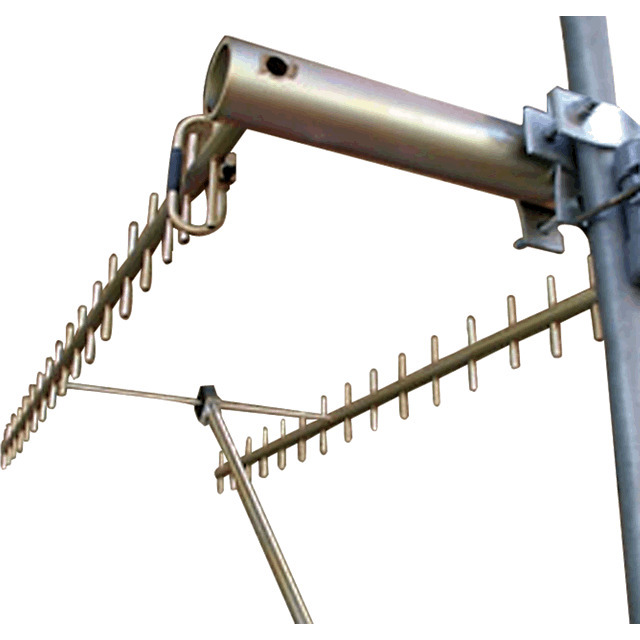

Dual 16dBi Yagi Array Antenna Kit


Key Features


  • Highest performing kit available on the market

  • Fully welded construction for maximum performance and reliability.




  • The impressive 19dBi gain is achieved by routing and connecting two 16dBi Yagi antennas to function as one antenna array

  • This type of package is designed for the most remote and geographically challenging areas, where signal is almost non-existent

  • Phasing of antennas should be at a distance of between 850mm to 900mm

  • This antenna rests at ground potential and provides excellent lightning protection and reduced precipitation static noise

  • Termination is via an 'N' female coaxial connector fitted to a short 9302 Durathene cable tail

  • Durathene is a PTFE dielectric and polyethylene jacketed cable providing superior resistance to weathering and abrasion and is less susceptible to bird attack than standard PVC sheathed cables.

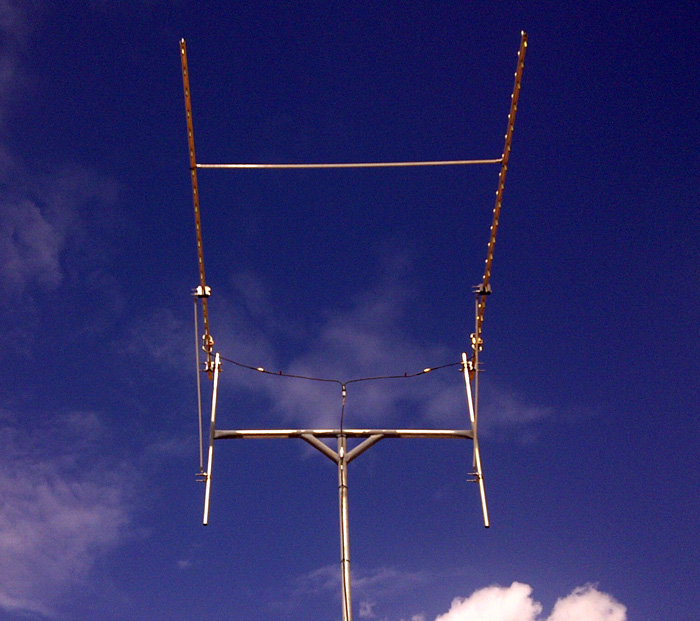

yagi arranged in bay stack

Actual customer installation [pictured]. Mounting poles/framework not supplied


Quick Tip


To increase the gain of a Yagi antenna by 3dB you have to double its length.

A good quality 16dBi Yagi measures around 2.4m in length, so you can imagine a 19dBi Yagi should measure between 4-5m in length. Therefore, having a larger Yagi is not practical, instead higher gain is achieved by using grid antennas, such as the two models below:



Specifications / Frequency


Network Compatibility



Telstra Next-G™ (850MHz)





Electrical Specifications


  • Frequency Range: 806-896MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Vertical Beamwidth: 27°

  • Horizonal Beamwidth: 24°

  • Front to Back Radio: >18dB

  • Radiation: Directional

  • Maximum Power: 100Watts


Mechanical/ Environment Specifications


  • Contruction: Fully welded aluminium, alodined finish

  • Cable: Short 9302 Durathene tall

  • Connector: N Female

  • Wind Rating: 189km/hr


Included Components


  • 2x RFI YB820-81 16dBi Yagi Directional Antennas

  • 2x M-4528 Anti-Vibration Support Kits

  • 2x UNV Bracket for Large Yagi Antennas

  • 1x PHE82-81N Phasing Harness.



over-size item symbol sign

  • Special Delivery Information: This product is 2.4m in length and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box.

  • Please provide an address where someone will be present to sign for the package.


RFI wireless logo


Brand RFI
Shipping Weight 13.0000kg
Shipping Width 2.400m
Shipping Height 0.100m
Shipping Length 0.230m
Shipping Cubic 0.055200000m3
