Panorama MiMo 4G/5G Omni Antenna

Key Features

• 2x2 MiMo 4G/5G antenna solution

• Wall, rail, or mast mount

• Integrated coaxial cables

• Perfect for Urban 4G & 5G Installations

Additional Information

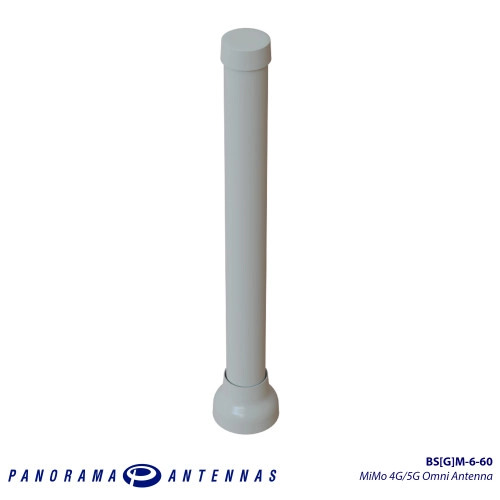

• The BSM-6-60-5SP antenna is a MiMo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.

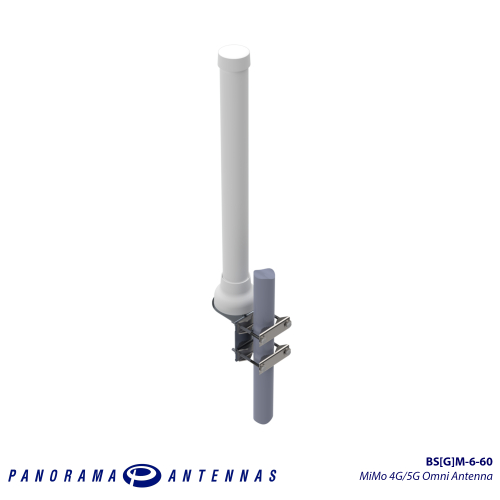

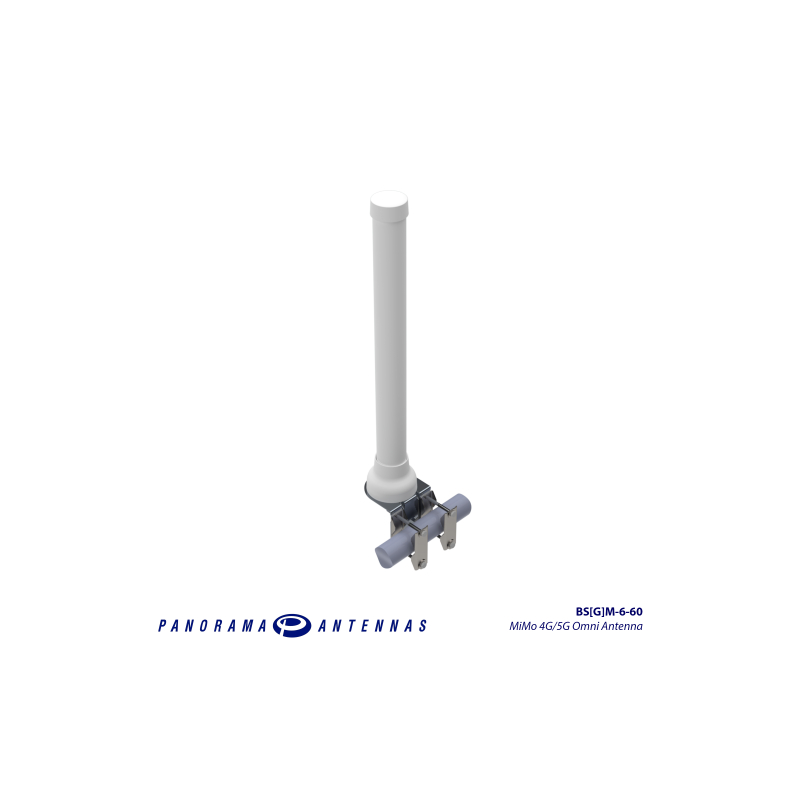

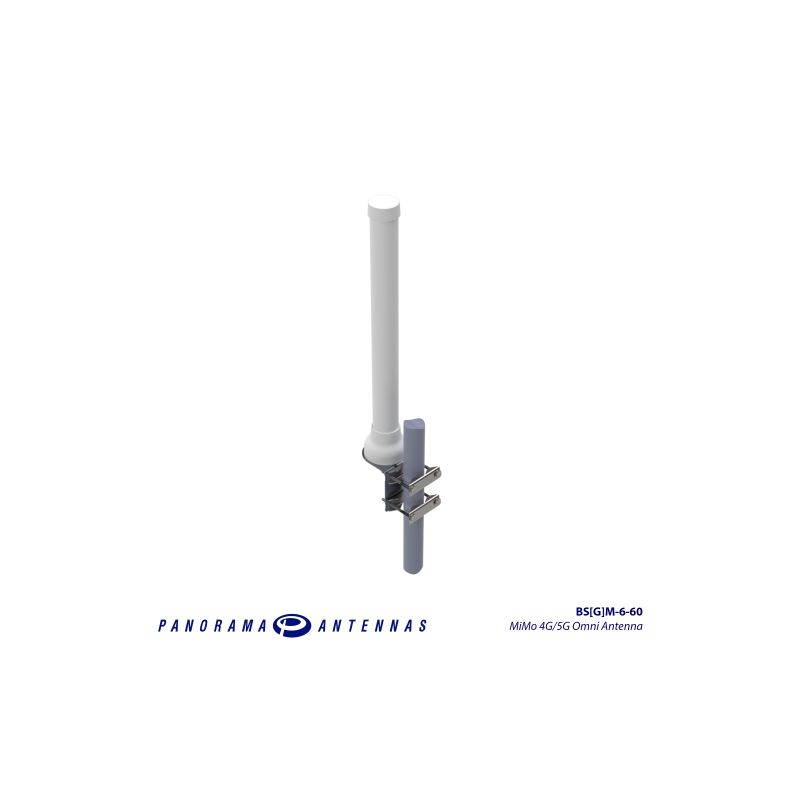

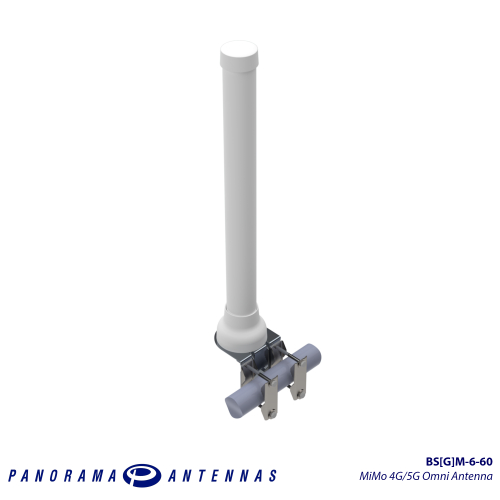

• The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.

• The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.

• This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion resistant design also makes the antenna suitable for certain marine and costal applications.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		3 dBi
Optus 4G+ (700 MHz)		3 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		3 dBi
Telstra Next-G™ (850 MHz)		3 dBi
Vodafone 4G+ (850 MHz)		3 dBi
Optus Regional 3G (900 MHz)		3 dBi
Vodafone Regional 3G (900 MHz)		3 dBi
Telstra/Optus/Voda 4G (1800 MHz)		6 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		6 dBi
LTE Bands 1, 33, 34 (2100 MHz)		6 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		6 dBi
Optus 4G TDD (2300 MHz)		6 dBi
LTE-TDD Bands 40 (2300 MHz)		6 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		6 dBi
LTE Band 41 (2500 MHz)		6 dBi
LTE Bands 7, 38 (2600 MHz)		6 dBi
Telstra 4GX Band 7 (2600 MHz)		6 dBi
All Carriers - 5G (3500MHz)		5 dBi

Electrical Specifications

• Frequency Range: 698-960MHz / 1427-6000MHz

• Input Impedance: 50 Ω

• VSWR: ≤2.5:1

• Polarisation: V + V

• Isolation: ≥25dB

• Vertical Beamwidth: 80° (± 5°) / 70° (± 5°) / 60° (± 5°)

• Radiation: Omnidirectional

• Maximum Power: 10 Watts

Mechanical/Environmental Specifications

• Cable: Nil

• Connector: 2 x SMA Male 5m Cables

• Radome Material: UPVC

• Radome Colour: White Natural

• Temperature: -40°C to +85 °C

• Weight: 1.5 kg

• Dimensions: 540 x 86 mm (L x Ø)

• Mounting: Wall, Mast, Rail or Pole

• Max Mast/Rail Diameter: 50mm
