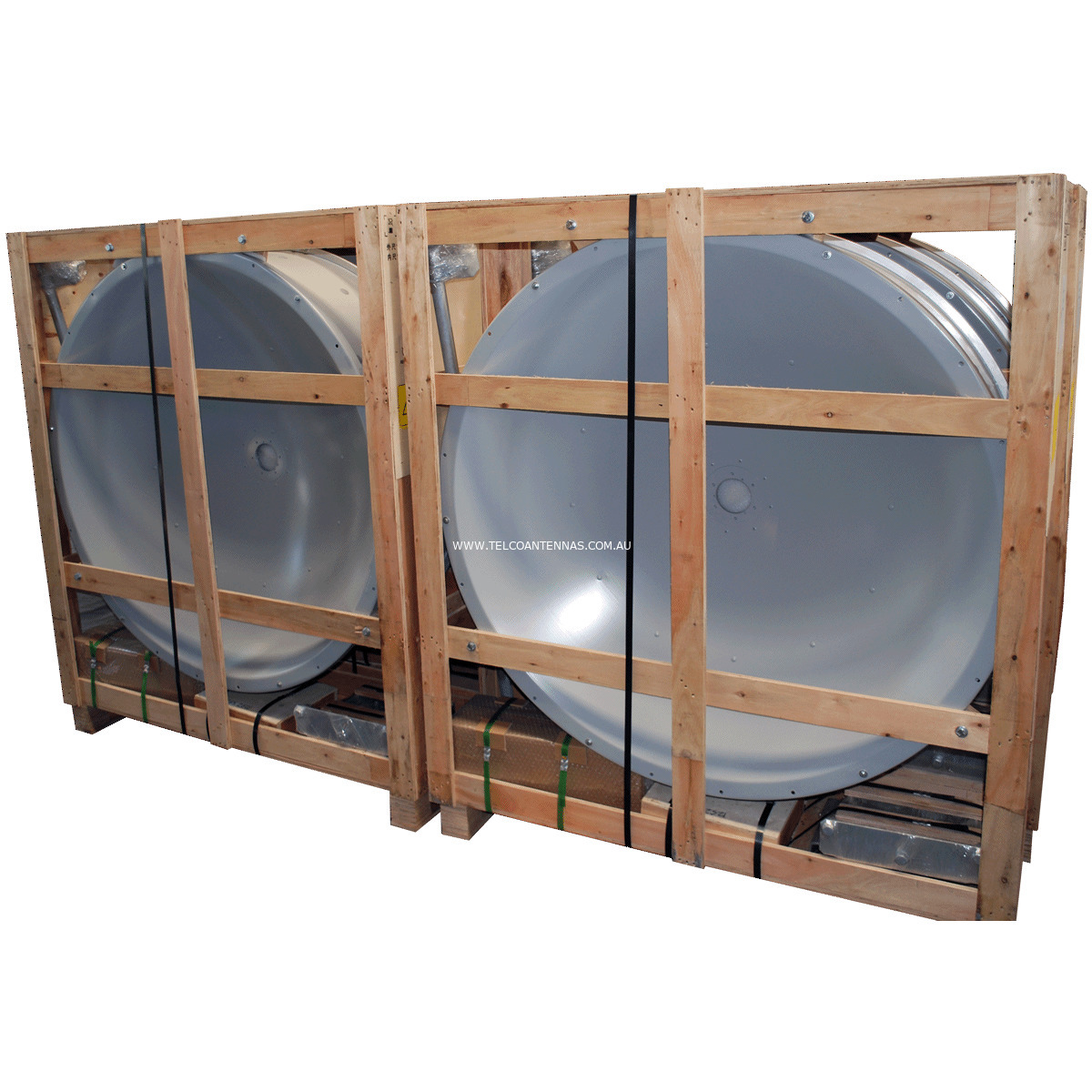

Telco XFIRE 32-33dBi Ultra High Performance Solid Dish - 5.25-5.85GHz



Key Features



  • Dual-polarised antenna feed w/ high XPD

  • ETSI Range 2 Class 2

  • Carrier grade aluminium alloy construction

  • Industrial 1.2m (4ft) single reflector dish

  • Extended drum radome

  • 10° fine az/el adjustment

  • Extreme 54dB F/B ratio

  • Critical backbone/backhaul

  • Ideal for high noise metropolitan medium range, and remote long range links

  • 5GHz PtP operation.



Usage



  • This is an ultra high performance 1.2m (4ft) 5GHz microwave dish, designed for high capacity fixed radio systems requiring ETSI Class 2 (high interference potential) compliance

  • Having an ultra tight V&H beamwidth and an unparalleled >54dB F/B ratio gives this antenna an incredible degree of noise immunity from nearby hostile interferers and collocated transmitters

  • This very high gain dish is designed for long range links (25-70km), and medium-long range links operating in high interference potential environments such as across metropolitan areas.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
UNII-2 5.25GHz - 5.35GHz
compatible
32.4dBi
UNII-2e 5.47GHz - 5.725GHz
compatible
32.8dBi
UNII-3 5.725GHz - 5.85GHz
compatible
33.2dBi



Electrical Specifications



  • Frequency Range: 5250-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (14dB RL)

  • Vertical Beamwidth: 2.9° (± 0.5°)

  • Horizontal Beamwidth: 2.9° (± 0.5°)

  • Front to Back Ratio: >54dB

  • Cross Polar Discrimination: >30dB

  • Port Isolation: >35dB

  • Compliance: ETSI EN 302 217 Range 2 Class 2



Mechanical/Environmental Specifications



  • Construction: One-piece aluminium reflector, ABS radome

  • Cable: None

  • Connector: 2x N-Type Female (white bronze low PIM)

  • Wind Rating (Operational): 198km/hr

  • Wind Rating (Survival): 250km/hr

  • Ice Load: 25.4mm

  • Temperature: -45°C +70°C

  • Weight: 43kg

  • Dimensions: 1283.25 x 1283.25 x 766.34mm (L x H x D) – Incl Strut - 2138.34mm

  • Mounting: 114mm (dia) pole

  • Compliance: ETSI EN 302 217 Range 2 Class 2



Read More





telco networks logo brand

(XFIRE-32DP-5800)

SKU XFIRE-32DP-5800
Brand Telco Antennas
Shipping Weight 0.0450kg
Shipping Width 1.630m
Shipping Height 0.050m
Shipping Length 1.380m
Shipping Cubic 0.112470000m3
