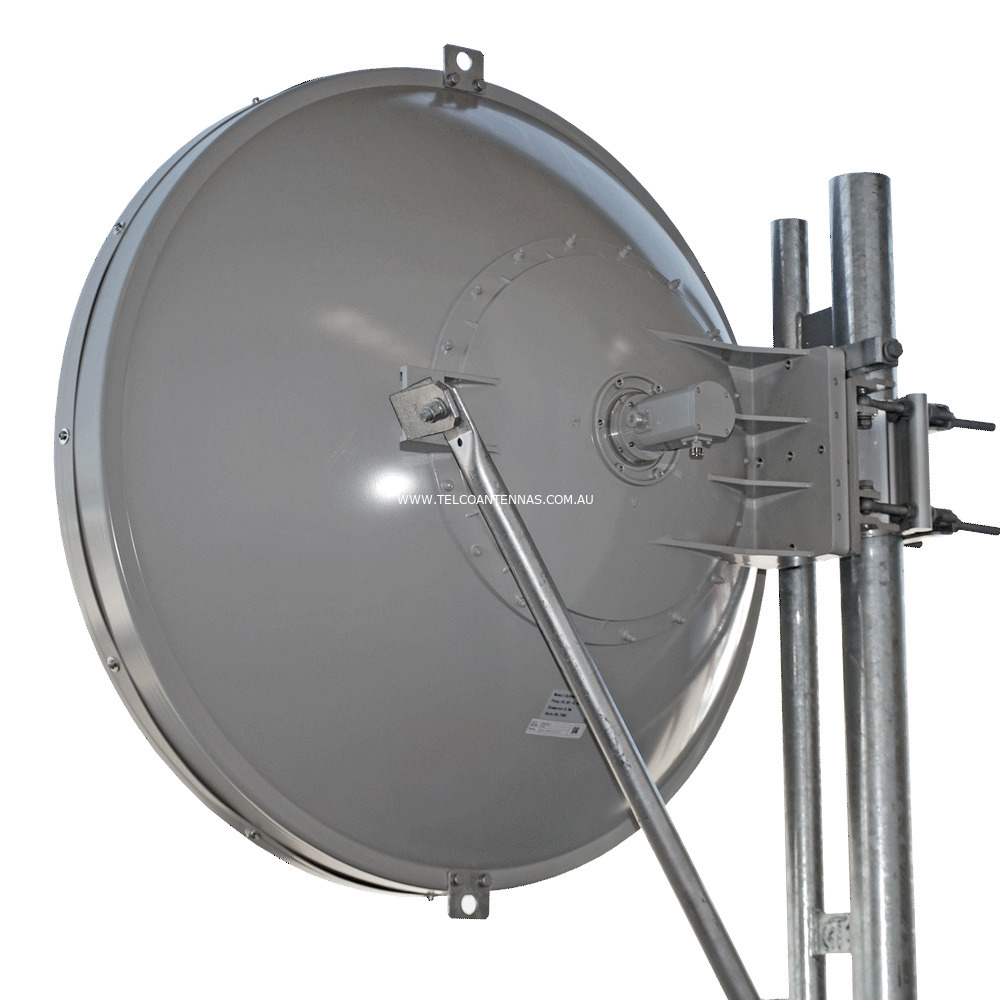

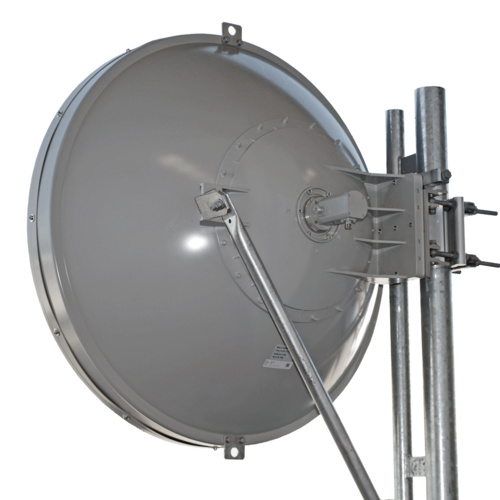

Telco XFIRE 30-31dBi Ultra High Performance Solid Dish - 5.25-5.85GHz


Key Features


  • Dual-polarised antenna feed w/ high XPD

  • ETSI Range 1 Class 2

  • Carrier grade aluminium alloy construction

  • Industrial 0.9m (3ft) single reflector dish

  • Inbuilt ABS radome

  • 15° fine az/el adjustment

  • Extreme 52dB F/B ratio

  • Critical backbone/backhaul

  • Ideal for high noise metro and urban medium range, and remote long range links

  • 5GHz PtP operation.




  • This is an ultra high performance 0.9m (3ft) 5GHz microwave dish, designed for high capacity fixed radio systems requiring ETSI Class 2 (high interference potential) compliance

  • Having an ultra tight V&H beamwidth and an unparalleled >52dB F/B ratio gives this antenna an incredible degree of noise immunity from nearby hostile interferers and collocated transmitters

  • This very high gain dish is designed for long range links (15-60km), and medium range links operating in high interference potential environments such as across urban and suburban areas.


Specifications / Frequency


Network Compatibility
UNII-2 5.25GHz - 5.35GHz
UNII-2e 5.47GHz - 5.725GHz
UNII-3 5.725GHz - 5.85GHz


Electrical Specifications


  • Frequency Range: 5250-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (14dB RL)

  • Vertical Beamwidth: 4.1°

  • Horisontal Beamwidth: 4.1°

  • Front to Back Ratio: >52dB

  • Cross Polar Discrimination: >30dB

  • Port Isolation: >35dB

  • Compliance: ETSI EN 302 217 Range 1 Class 2


Mechanical/Environmental Specifications


  • Construction: One-piece aluminium reflector, ABS radome

  • Cable: None

  • Connector: 2x N-Type Female (white bronze low PIM)

  • Wind Rating (Operational): 162km/hr

  • Wind Rating (Survival): 250km/hr

  • Ice Load: 25.4mm Temperature: -45°C +75°C

  • Weight: 24.9kg

  • Dimensions: 948mm (dia)

  • Mounting: 51-114mm (dia) pole

  • Compliance: ETSI EN 302 217 Range 1 Class 2


Read More



telco networks logo brand


Brand Telco Antennas
Shipping Weight 42.0000kg
Shipping Width 1.630m
Shipping Height 0.650m
Shipping Length 1.380m
Shipping Cubic 1.462110000m3
