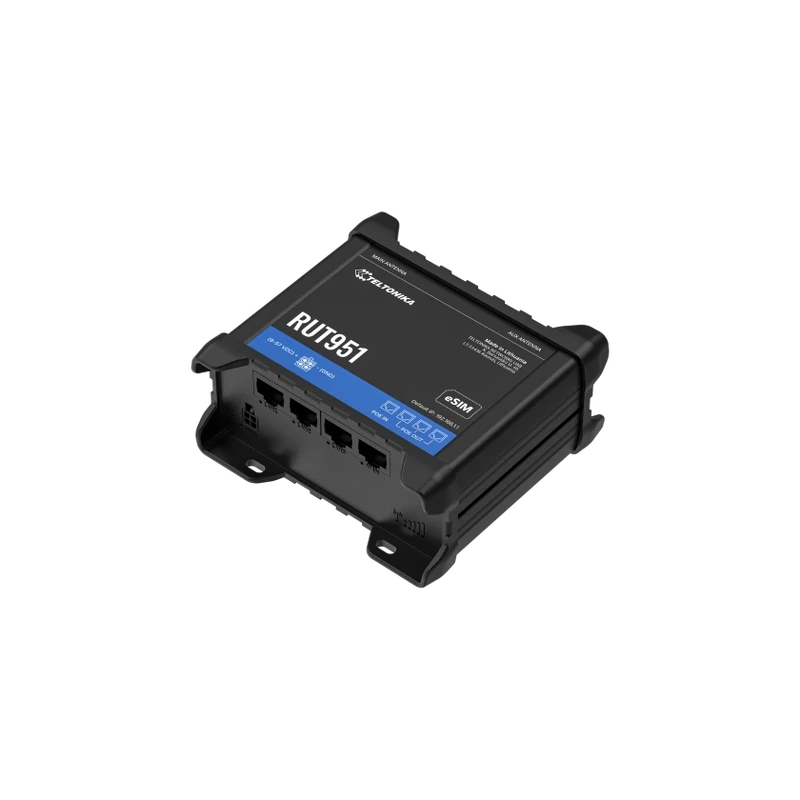

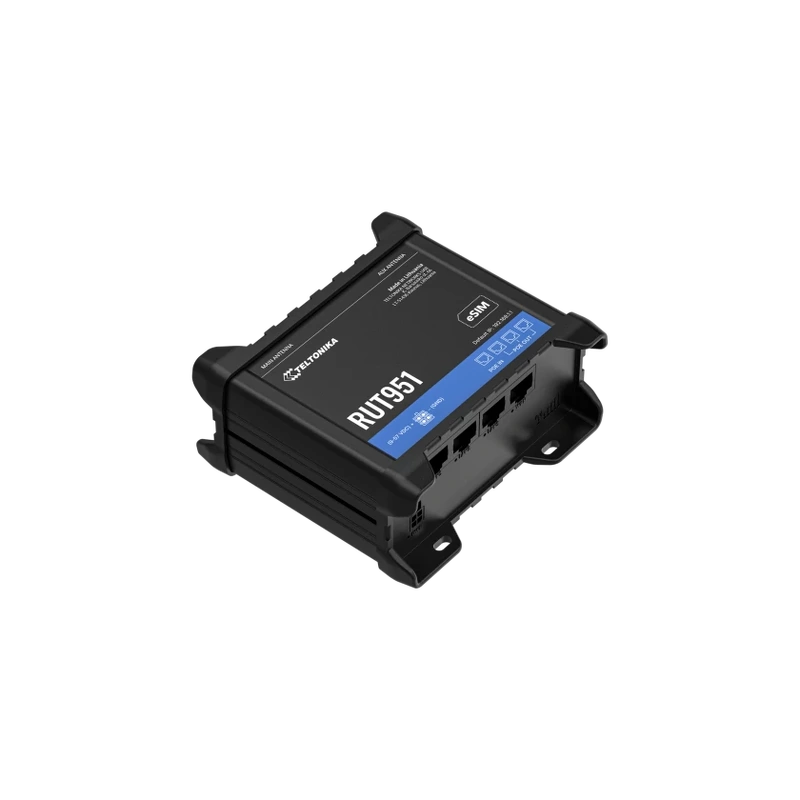

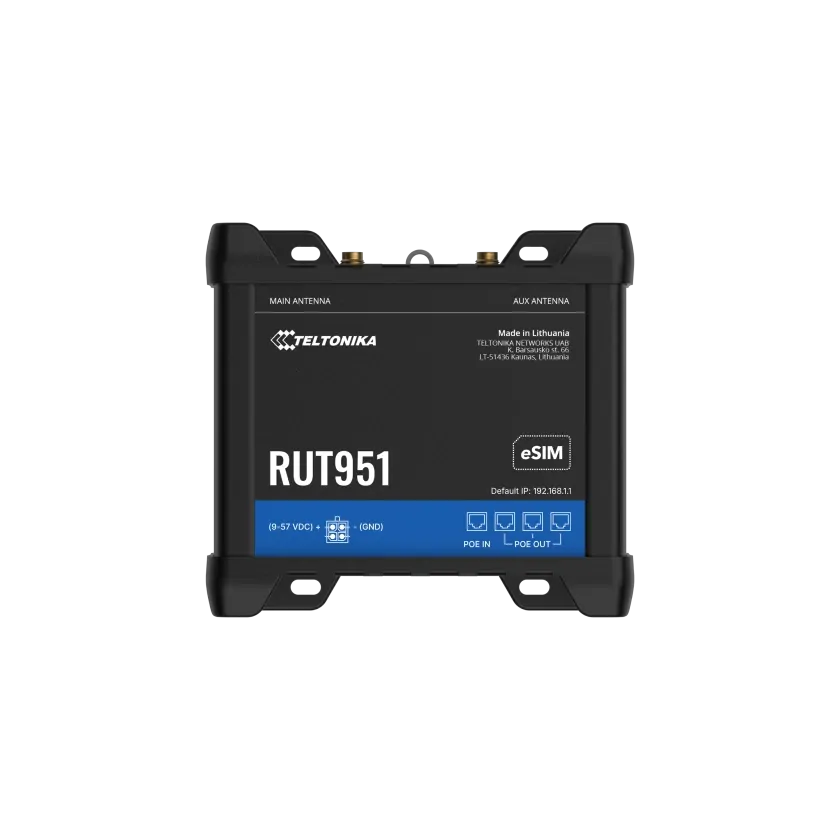

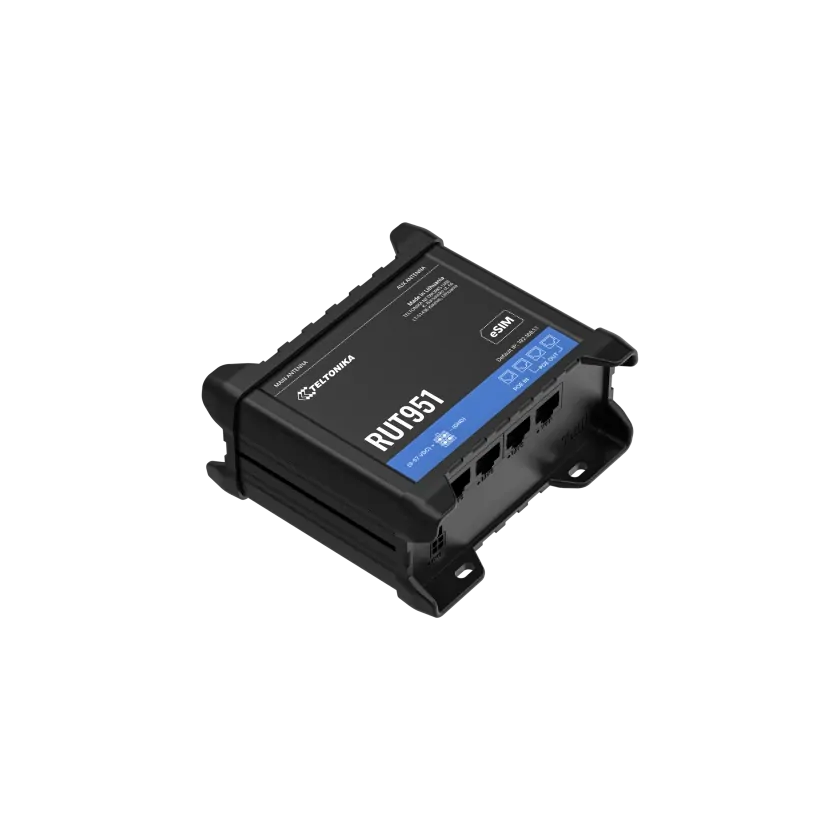

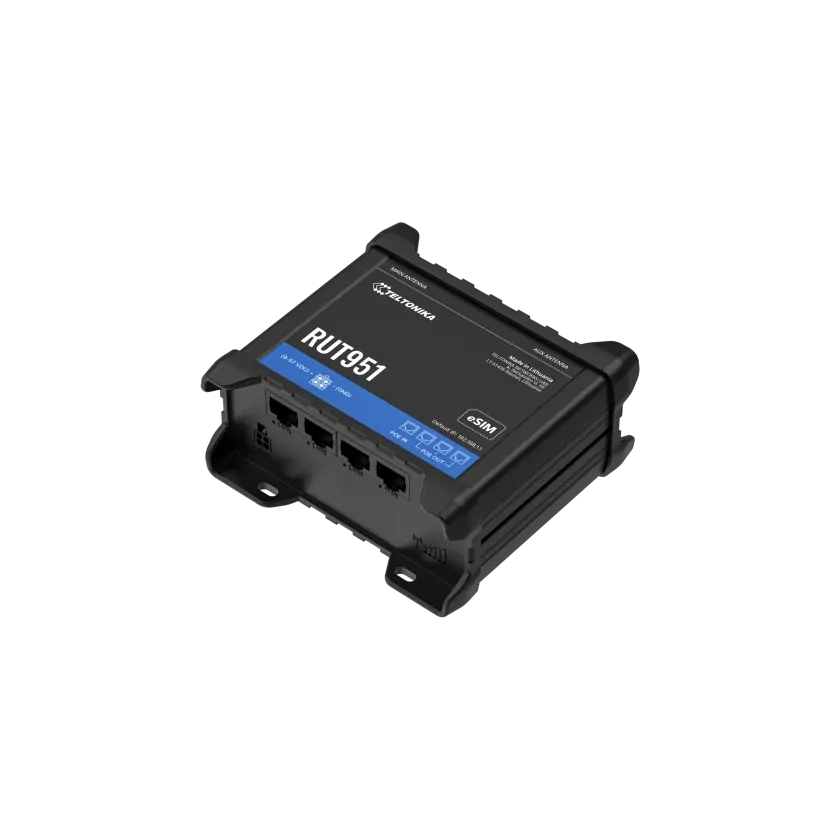

Teltonika RUT951 Industrial CAT4 4G Modem Router with PoE+ & eSIM

Key Features

• 4G LTE Cat4

• Dual Sim & eSim with Auto Failover, Backup Wan & other Switching Scenarios

• POE+ with a total Power Budget of 90W

• Powered by RutOS that offers customization options for professional use, automation features, and top-level security for your solution.

• Compatible with the Teltonika Networks Remote Management System (RMS) enables secure remote management to save time and expenses.

• Dynamic DNS, DHCP Relay, Web filters

• 2x Removable Cellular Antennas, 2x WiFi antennas

• SMS Config & Ping reboot

• Telstra.Corp and Private APNs fully functional

• 4G (LTE) - Cat 4 Up to 150 Mbps (but limited to 100Mbps by ethernet port)

• 3G – Up to 42 Mbps

• 2G – Up to 236.8 kbps

Usage

• Building upon the achievements of our top-selling 4G router, this upgraded model now includes versatile Power over Ethernet (PoE+) functionality.
• This durable router is equipped with dual SIM and eSIM, dependable Wi-Fi, and four PoE+ Ethernet ports.
• Driven by RutOS and tailored for various IoT applications, the RUT951 PoE+ guarantees uninterrupted data transmission and streamlines power management for your interconnected IoT solutions.

Standard Package

• Router RUT951 PoE+
• 2x Mobile antennas (swivel, SMA male)
• 2x Wi-Fi antennas (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box

Specifications

Mobile

• Mobile module

  4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

• 3GPP Release

  Release 10/11 depending on the hardware version

• SIM switch

  2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

• eSIM

  Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

• Status

  IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS

  SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD

  Supports sending and reading Unstructured Supplementary Service Data messages

• Block/Allow list

  Operator block/allow list (by country or separate operators)

• Multiple PDN

  Possibility to use different PDNs for multiple network access and services

• Band management

  Band lock, Used band status display

• SIM PIN code management

  SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

• APN

  Auto APN

• Bridge

  Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough

  Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode

  802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

• Wi-Fi security

  WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID

  SSID stealth mode and access control based on MAC address

• Wi-Fi users

  Up to 100 simultaneous connections

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

  Allowlist, blocklist

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information

• TravelMate

  Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

• WAN

  1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

• LAN

  3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing

  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules, TTL target customisation

• Firewall status page

  View all your Firewall statistics, rules, and rule counters

• Port management

  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

  Visual representation of your network, showing which devices are connected to which other devices

• Hotspot

  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• DHCP

  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >77 service providers, others can be configured manually

• DNS over HTTPS

  DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Network backup

  Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

  Balance Internet traffic over multiple WAN connections

• SSHFS

  Possibility to mount remote file system via SSH protocol

• Traffic Management

  Real-time monitoring, wireless signal charts, traffic usage history

• Port Mirroring

  Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall

  Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• Mobile quota control

  Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of SSH, Web interface, CLI and Telnet

• SSL certificate generation

  Let's Encrypt and SCEP certificate generation methods

VPN

• OpenVPN

  Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

  BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

  XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

  GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

  Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

• SSTP

  SSTP client instance support

• ZeroTier

  ZeroTier VPN client support

• WireGuard

  WireGuard VPN client and server support

• Tinc

  Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

• Supported modes

  Client, Server

• Supported connection types

  TCP

MODBUS

• Supported modes

  Server, Client

• Supported connection types

  TCP

• Custom registers

  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

• Protocol

  HTTP(S), MQTT, Azure MQTT

• Data to server

  Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

• Modbus MQTT Gateway

  Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

• Supported modes

  Station, Outstation

• Supported connection

  TCP

DLMS/COSEM

• DLMS Support

  DLMS - standard protocol for utility meter data exchange

• Supported modes

  Client

• Supported connection types

  TCP

API

• Teltonika Networks Web API (beta) support

  Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

• WEB UI

  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

• FOTA

  Firmware update from server, automatic notification

• SSH

  SSH (v1, v2)

• SMS

  SMS status, SMS configuration

• Call

  Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

• TR-069

  OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT

  MQTT Broker, MQTT publisher

• SNMP

  SNMP (v1, v2, v3), SNMP Trap, Brute force protection

• JSON-RPC

  Management API over HTTP/HTTPS

• RMS

  Teltonika Remote Management System (RMS)

IoT Platforms

• ThingWorx

  Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity - Cloud of Things

  Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

• Azure IoT Hub

  Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

• AWS IoT Core

  Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

• CPU

  Mediatek, 580 MHz, MIPS 24KEc

• RAM

  128 MB, DDR2

• FLASH storage

  16 MB, SPI Flash

Firmware / Configuration

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

• Factory settings reset

  A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating system

  RutOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

• GPL customization

  You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

• Package Manager

  The Package Manager is a service used to install additional software on the device

POE IN

• PoE+ ports

  Port 1 (LAN1)

• PoE standards

  IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PD port (LAN1)

POE OUT

• PoE+ ports

  Port 2 - 4 (LAN2, LAN3, WAN)

• PoE standards

  IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PSE ports (LAN2, LAN3, WAN)

• PoE Max Power per Port (at PSE)

  30 W Max

• PoE Power Budget (at PSE)

  90 W

Power

• Connector

  4-pin industrial DC power socket

• Input voltage range

  9 – 57 VDC, reverse polarity protection, surge protection >58 VDC 10us max

• Input voltage range for PoE

  48 – 57 VDC

• Power consumption

  Idle: < 5 W, Max: < 6.5 W, PoE Max: 100 W

Physical Interfaces

• Ethernet

  4 x RJ45 ports, 10/100 Mbps

• I/O’s

  1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs

  1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

• SIM

  2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

• Antennas

  2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors

• Reset

  Reboot/User default reset/Factory reset button

Physical Specification

• Casing material

  Aluminium housing, plastic panels

• Dimensions (W x H x D)

  110 x 50 x 100 mm

• Weight

  287 g

• Mounting options

  DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, UCRF, EAC, UKCA, RCM, WEEE

EMC Emissions & Immunity

• Standards

  EN 55032:2015 + A11:2020

  EN 55035:2017 + A11:2020

  EN IEC 61000-3-2:2019 + A1:2021

  EN 61000-3-3:2013 + A1:2019

  EN 301 489-1 V2.2.3

  EN 301 489-17 V3.2.4

  EN 301 489-52 V1.2.1

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN 61000-4-11:2020

RF

• Standards

  EN 300 328 V2.2.2

  EN 301 511 V12.5.1

  EN 301 908-1 V15.2.1

  EN 301 908-2 V13.1.1

  EN 301 908-13 V13.2.1

Safety

• Standards

  CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

  RCM: AS/NZS 62368.1:2022

  CB: IEC 62368-1:2018
