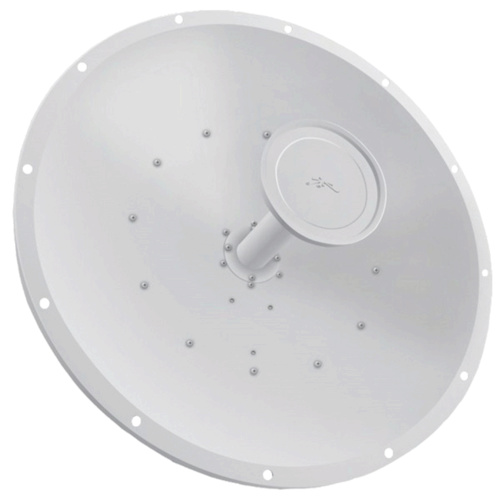

Ubiquiti airMAX 2.4GHz (M2) 24dBi Rocket Dish Antenna


Key Features


  • Integrated Rocket mount

  • 2x2 MIMO 2.4GHz

  • Designed specifically for airMAX Rocket M2.




  • AirMAX RocketDish is a Carrier Class 2x2 Dual Polarity 2.4GHz MIMO Antenna that was designed to seamlessly integrate with Rocket M2 radios

  • Pair a Rocket M2 radio with the airMAX RocketDish reach to create an extremely powerful directional PtP link

  • This type of setup is often deployed in critical communications infrastructure, such as backbone or backhaul links

  • Having an ultra tight V&H beamwidth and high F/B ratio gives this antenna a high degree of noise immunity from nearby hostile interferers and collocated transmitters

  • We regularly deploy the RocketDish M2s as the high bandwidth backbone between two critical sites regardless of distance. In shorter range communications smaller form-factor equipment can be deployed, but this can leave the link susceptible to interference and reduced throughput due to link adaptation

  • Another concern is causing channel pollution (observed as a rise in noisefloor at other APs/stations), particularly when the transmitter is tower or rooftop mounted.


 . remote internet using ubiquiti rocketdish m2 24dBi rooftop mounted rocket dish 24 M2 backhaul link


Specifications / Frequency


Network Compatibility
AirMAX M2 2x2 MIMO (2400MHz)


Electrical Specifications


  • Frequency Range: 2300-2700MHz

  • Input Impedance: 50Ω

  • VSWR: <1.4:1

  • Polarisation: Dual Linear (35dB isolation)

  • Horisontal Beamwidth: 6.6°

  • Vertical Beamwidth: 6.6°

  • Radiation: Highly Directional


Mechanical/Environmental Specifications


  • Cable: 2x SMA jumper cables included

  • Connector: 2x SMA Female

  • Wind Rating: 192km/hr

  • Weight: 9.8kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 648mm (OD) EN 302 326 DN2
