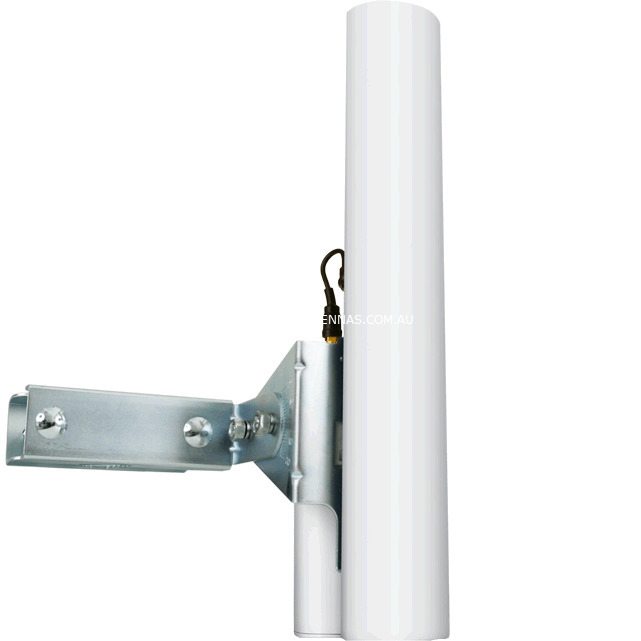

Ubiquiti airMAX M5 16dBi Sector Antenna



Key Features



  • Integrated mount for Rocket

  • Ideal for sectored base station deployment

  • 120 degree sector with 4 degree vertical beam

  • 2x2 MIMO 5.8GHz

  • Designed specifically for airMAX Rocket M5.



Usage



  • AirMAX Sector is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna that was designed to seamlessly integrate with Rocket M5 radios

  • Pair a Rocket M5 radio with an airMAX Sector reach to create a high powered PtMP base station, covering a 120 degree sector

  • 120 degree sectors are ideal for when deploying a conventional 3 sector airMAX node

  • The 4-degree vertical beam with high 16dBi gain is ideal for macro-cell base stations. When sectoring in this fashion it's important that each node is integrated with a Rocket M5 GPS in order to take advantage of airMAX's proprietary AirSync protocol

  • AirSync replaces the radio's conventional carrier-sense timing protocol with a inter-radio synchronised TDMA protocol. Instead of each radio polling for a quiet channel before transmitting (and potentially colliding), AirSync detects the GPS coordinates of each unit and synchronises transmissions into separate time slots

  • In addition to GPS synchronisation, multi-sector deployments will require additional antenna shielding - RF-deadening material and RF Armor are advised.



airmax-m5-16



Specifications / Frequency



Network Compatibility
Yes/No
Gain
AirMAX M5 2x2 MIMO (5800MHz)
compatible
16dBi



Electrical Specifications



  • Frequency Range: 5100-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Dual Linear (V & H)

  • Cross-Pol Isolation: >22dB

  • H-Pol Beamwidth: 137° (6dB)

  • V-Pol Beamwidth: 118° (6dB)

  • Vertical Beamwidth: 8°

  • Electrical Downtilt: 4°

  • Radiation: Sector



Mechanical/Environmental Specifications



  • Cable: 2x RP-SMA jumper cables included

  • Connector: 2x RP-SMA Female

  • Wind Rating: 200km/hr

  • Weight: 1.1kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 367 x 63 x 41mm (L x W x H)

  • EN 302 326 DN2



Read More





(AM-5G16-120)

SKU AM-5G16-120
Brand Ubiquiti
Shipping Weight 0.0450kg
Shipping Width 0.230m
Shipping Height 0.170m
Shipping Length 0.750m
Shipping Cubic 0.029325000m3
