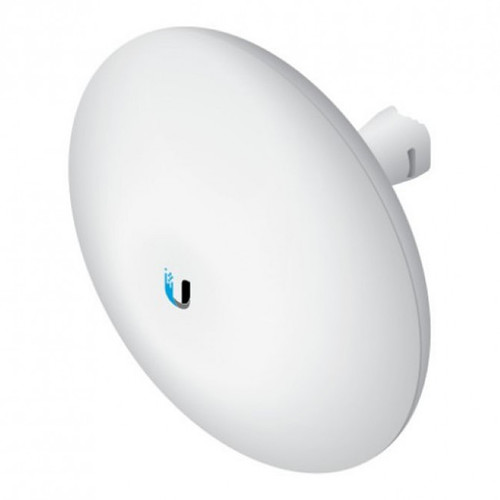

Ubiquiti NanoBeam 5AC Gen2 Wireless Bridge


Key Features


  • Connect remote locations on one network

  • Share Internet connection between buildings, remote sites, etc.

  • Indistinguishable from Ethernet cable

  • 200mW output power, 2x2 MIMO operation

  • Gigabit Ethernet interface

  • 8W (max) power consumption

  • Discrete, compact 190mm form factor

  • Two units required for wireless bridge

  • Includes POE injector and Australian 240V AC adaptor.


New Model


  • The new NanoBeam 5AC Gen2 incorporates 802.11ac technology - providing 256QAM modulation resulting in data rates as high as 450Mbps @ >65dBm, gigabit Ethernet, and AirMax packet prioritisation technology for superior latency reduction in your multi-point environment

  • Previous PowerBeam and NanoBeam models were based on 802.11n technology which provided up to 64QAM (270Mbps, but often limited by their 10/100Eth interface to 100Mbps).


Recommended Usage


  • NanoBeam AC 19 Gen2 are most commonly deployed to provide a very high speed wireless bridge between adjacent buildings

  • The units moderate 19dBi gain makes it ideal for short range high capacity network sharing, with a typical suggested range of 100-600m

  • Due to the small dish size, these units are best for locations isolated from competing 5GHz networks.


Improved Noise Immunity


  • The NanoBeam AC Gen2 directs RF energy in a tighter beamwidth

  • With the focus in one direction, the PowerBeam AC blocks or spatially filters out noise, so noise immunity is improved

  • This feature is especially important in an area crowded with other RF signals of the same or similar frequency.


ubiquiti nanobridge m5 setup instructions installation diagram


  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

  • Management of the Ubiquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.


Ready to Install


  • This unit has all networking hardware and surge protection integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment

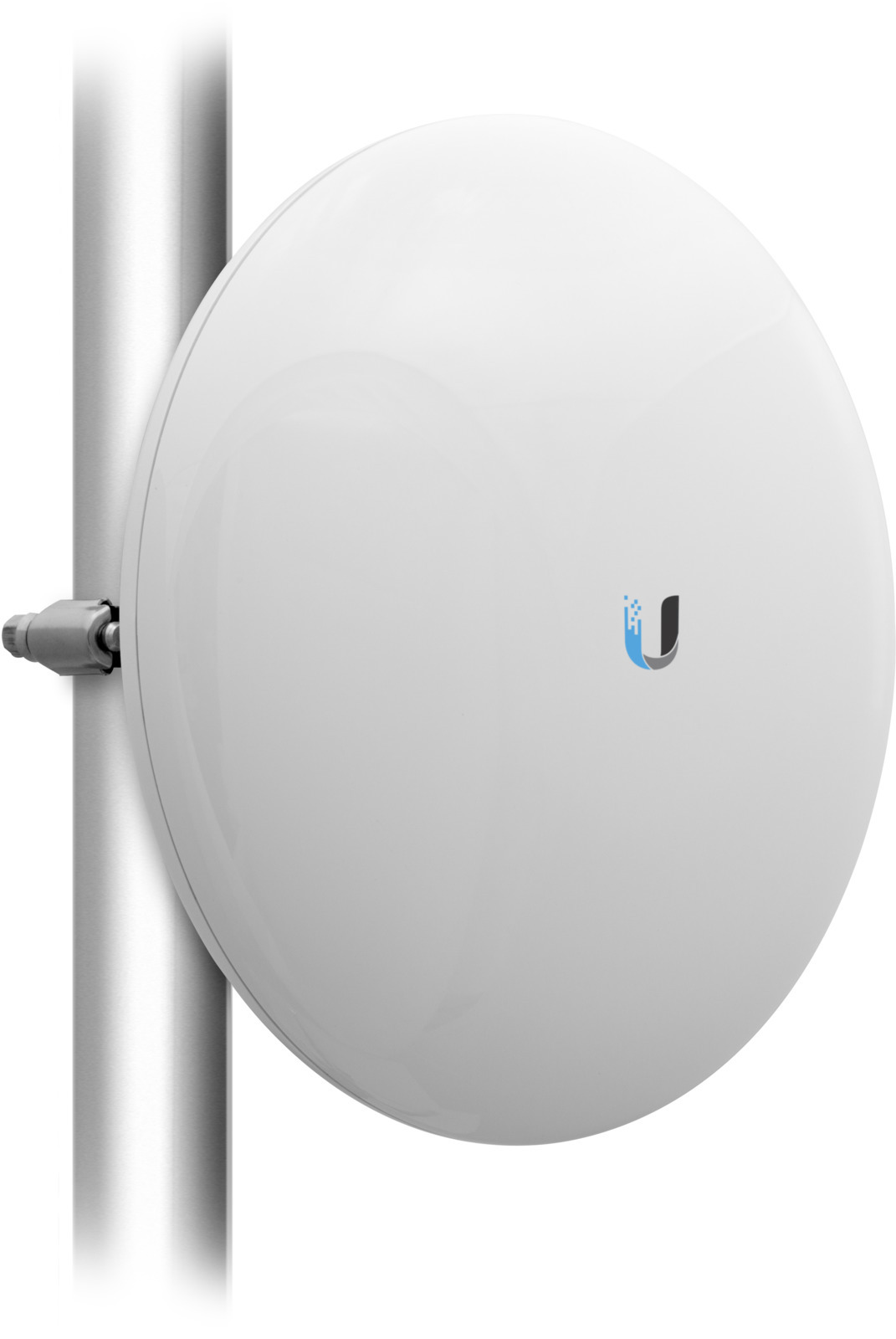

  • For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

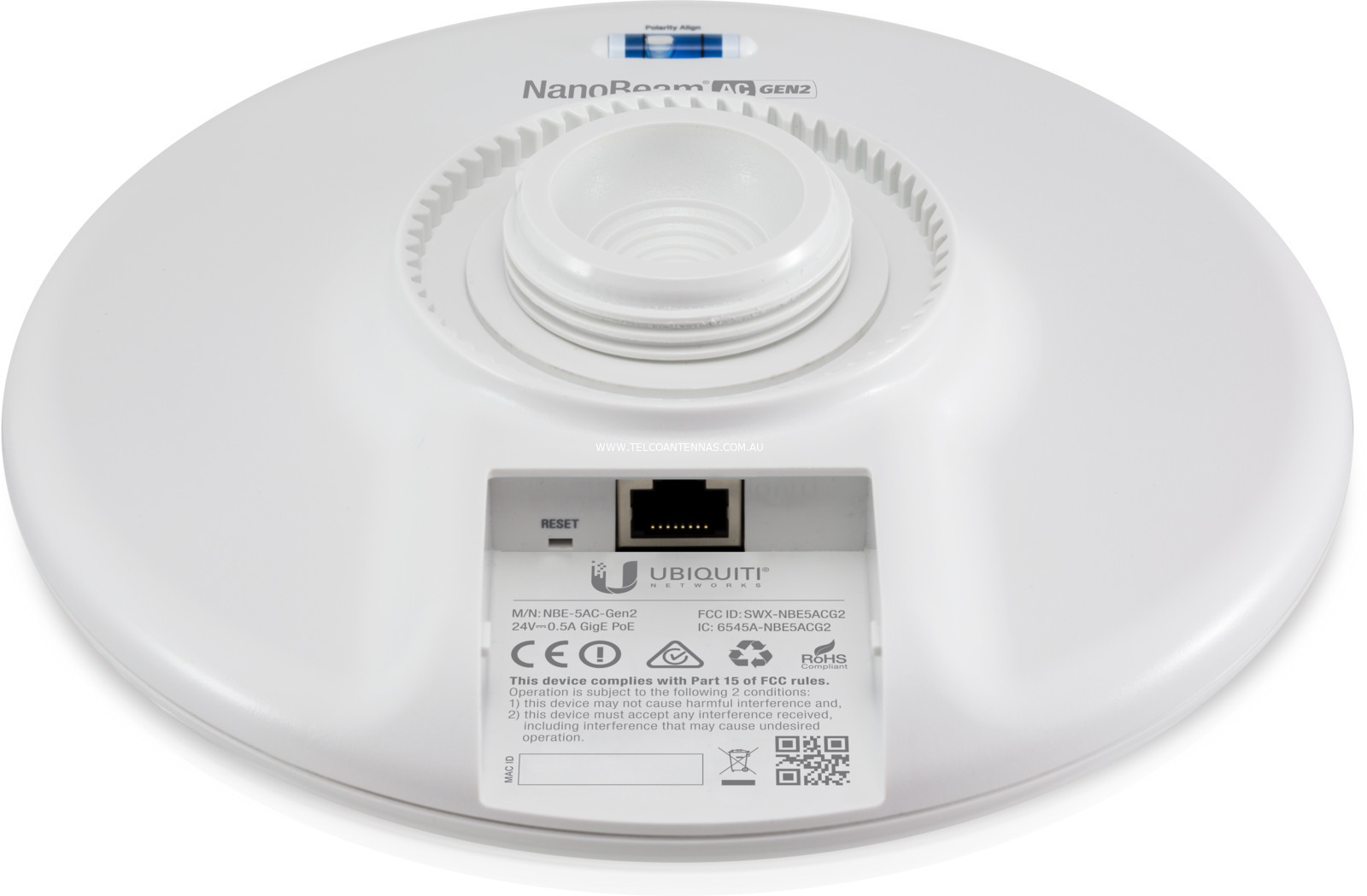

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the NanoBeam, and the other into the PoE Injector (which is plugged into AC power)

  • This allows one cable to both power the unit and also carry network traffic

  • We recommend using Cat6 Outdoor UV Shielded Cable with this unit.


Read More



Setup Guides (click on image)


direct point to point wireless bridge ubiquiti nanostation m2 m5point to multipoint wireless bridge ubiquiti nano station access point WDS
