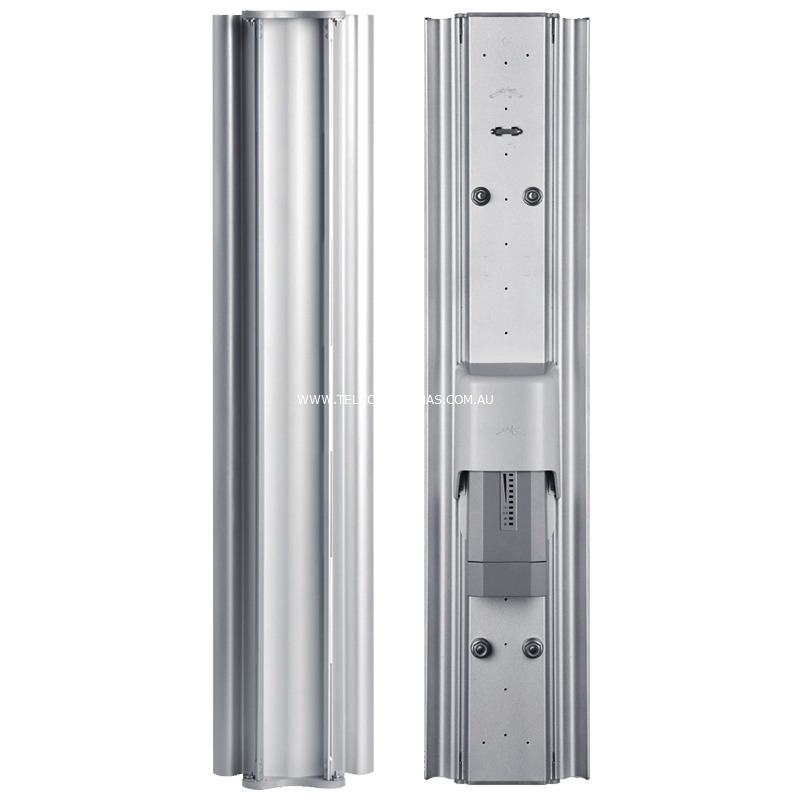

Ubiquiti airMAX M5 Titanium Variable Beamwidth Sector Antenna



Key Features



  • 19-21dBi variable gain

  • 60-120° variable beamwidth

  • Ideal for high noise sectored base station deployment

  • 2x2 MIMO 5.8GHz

  • Designed specifically for airMAX Rocket M5 Titanium.



Usage



  • AirMAX Sector Titanium is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna that was designed to seamlessly integrate with Rocket M5 radios

  • Pair a Rocket M5 Titanium radio with an airMAX Sector reach to create a high powered PtMP base station

  • Providing adjustable beamwidth from 60 to 120 degrees combined with great isolation performance, the new titanium sectors provide additional scalability and noise immunity performance in hi-noise environments and co-location deployments

  • When sectoring a PtMP network in this fashion it's important that each node is integrated with a Rocket M5 GPS in order to take advantage of airMAX's proprietary AirSync protocol. AirSync replaces the radio's conventional carrier-sense timing protocol with a inter-radio synchronised TDMA protocol

  • Instead of each radio polling for a quiet channel before transmitting (and potentially colliding), AirSync detects the GPS coordinates of each unit and synchronises transmissions into separate time slots.



Specifcations / Frequency



Network Compatibility
Yes/No
Gain
AirMAX M2 2x2 MIMO (5800MHz)
compatible
19-21dBi



Electrical Specifications



  • Frequency Range: 5450-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Dual Linear (25dB isolation)

  • Horizontal Beamwidth: 60-120° (variable)

  • Vertical Beamwidth: variable

  • Electrical Beamwidth: 4°

  • Electrical Downtilt: 2°

  • Radiation: Sector



Mechanical/Environmental Specifications



  • Cable: 2x RP-SMA jumper cables included

  • Connector: 2x RP-SMA Female

  • Wind Rating: 200km/hr

  • Weight: 3.72kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 729 x 149.1 x 75.7mm (L x W x H)

  • EN 302 326 DN2



Read More







(AM-V5G-Ti)

SKU AM-V5G-Ti
Brand Ubiquiti
Shipping Weight 6.5000kg
Shipping Width 0.220m
Shipping Height 0.220m
Shipping Length 0.850m
Shipping Cubic 0.041140000m3
