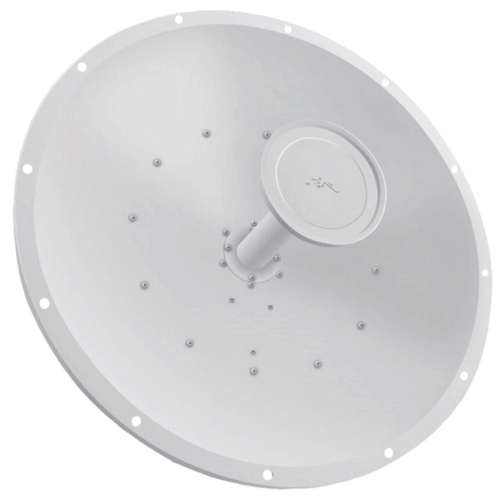

Ubiquiti airMAX 5.8GHz (M5) 30dBi Rocket Dish Antenna



Key Features



  • Integrated mount for Rocket

  • Long range Ubiquiti links (>4km)

  • Approx. 27dBi real world gain

  • 2x2 MIMO 5.8GHz

  • Designed specifically for airMAX Rocket M5.



Usage



  • AirMAX RocketDish is a Carrier Class 2x2 Dual Polarity MIMO Antenna that was designed to seamlessly integrate with Rocket M5 radios

  • Pair a Rocket M5 radio with the airMAX RocketDish reach to create an extremely powerful directional PtP link. This type of setup is often deployed in critical communications infrastructure, such as backbone or backhaul links

  • Having an ultra tight V&H beamwidth and high F/B ratio gives this antenna a high degree of noise immunity from nearby hostile interferers and collocated transmitters

  • We regularly deploy RocketDish M5's by Telco as the high bandwidth backbone between two sites, typically out to 15km (rLOS)

  • In shorter range communications smaller form-factor equipment can be deployed, but this can leave the link susceptible to interference and reduced throughput due to link adaptation

  • Another concern is causing channel pollution (observed as a rise in noisefloor at other APs/stations), particularly when the transmitter is tower or rooftop mounted

  • While Ubiquiti spec this antenna at 30dBi, in real world terms open face 0.6m dishes have around 27dBi gain. If your link requires ~30dBi gain antennas, please check out our 0.9m antennas:



Specifications / Frequency



Network Compatibility
Yes/No
Gain
AirMAX M5 2x2 MIMO (5800MHz)
compatible
30dBi



Electrical Specifications



  • Frequency Range: 5450-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.4:1

  • Polarisation: Dual Linear V & H

  • Cross Pol Isolation: >35dB F/B

  • Ratio: >34dB

  • Horizontal Beamwidth: 5°

  • Vertical Beamwidth: 5°

  • Radiation: Highly Directional



Mechanical/Environmental Specifications



  • Cable: 2x RP-SMA jumper cables included

  • Connector: 2x RP-SMA Female

  • Wind Rating: 192km/hr

  • Weight: 9.8kg

  • Mounting: Pole mounting bracket included (30-75mm)

  • Dimensions: 648mm (OD) EN 302 326 DN2



Read More





(RD-5G30)

SKU RD-5G30
Brand Ubiquiti
Shipping Weight 0.0450kg
Shipping Width 0.450m
Shipping Height 0.900m
Shipping Length 0.450m
Shipping Cubic 0.182250000m3
