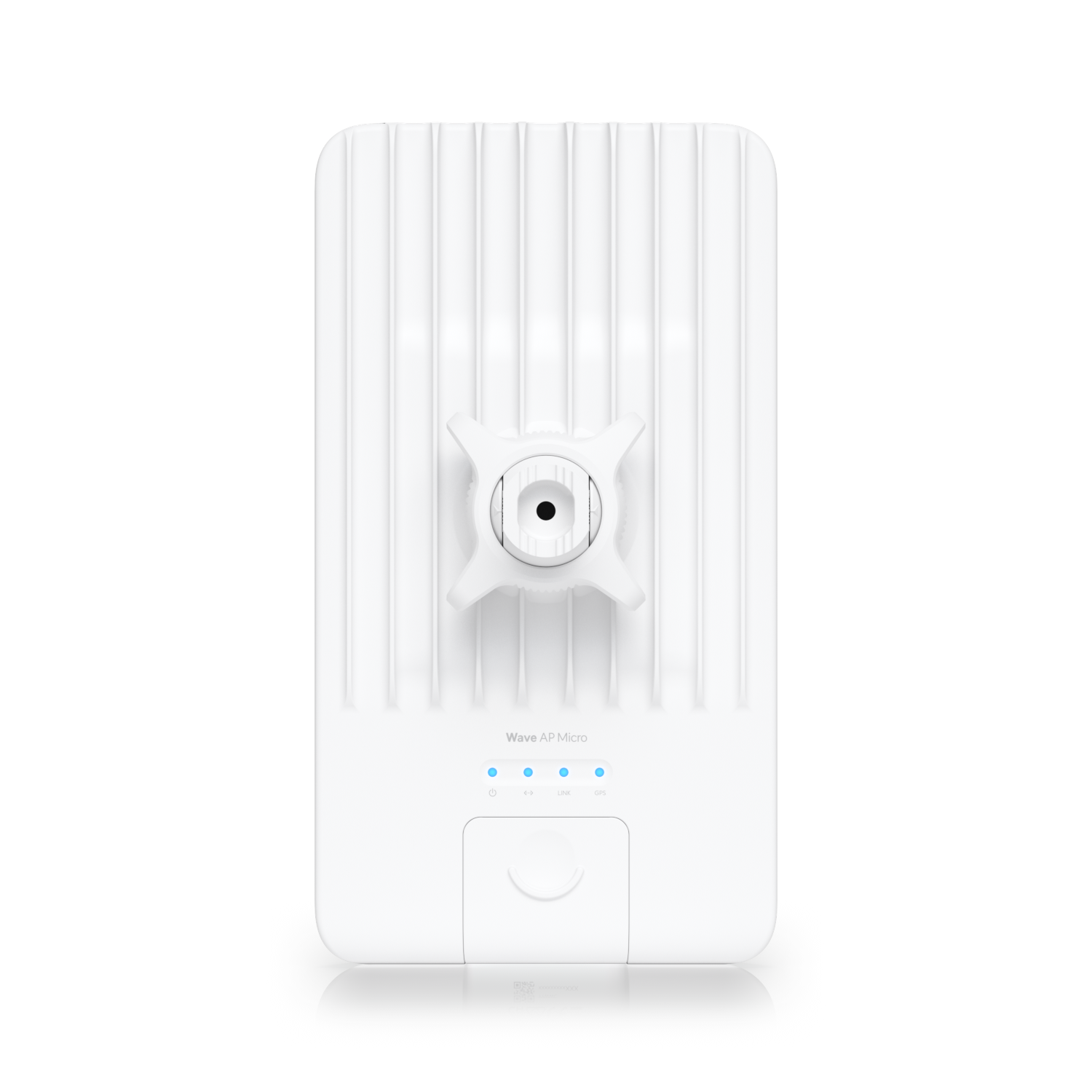

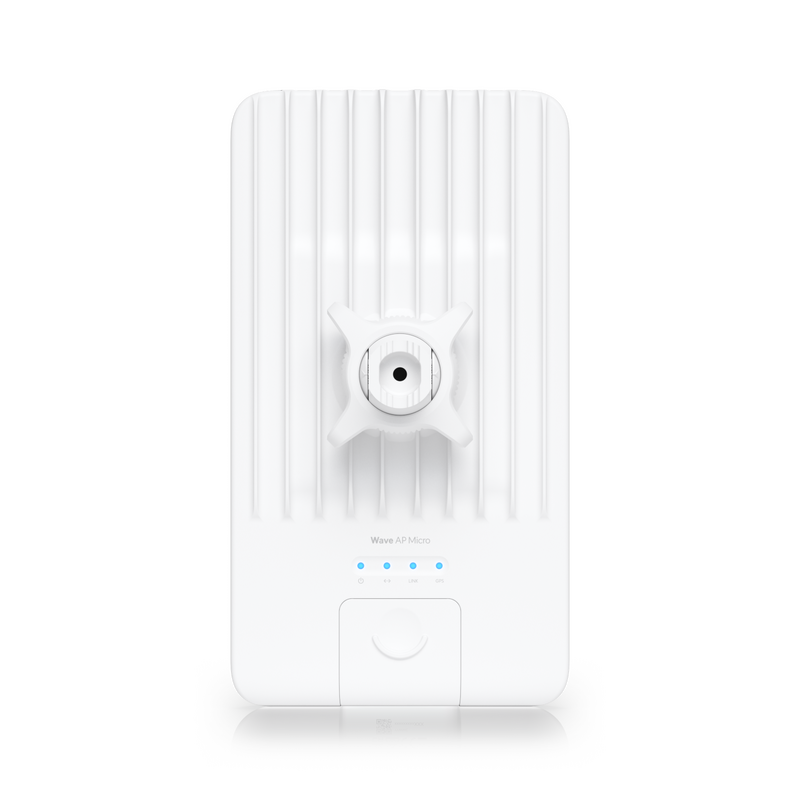

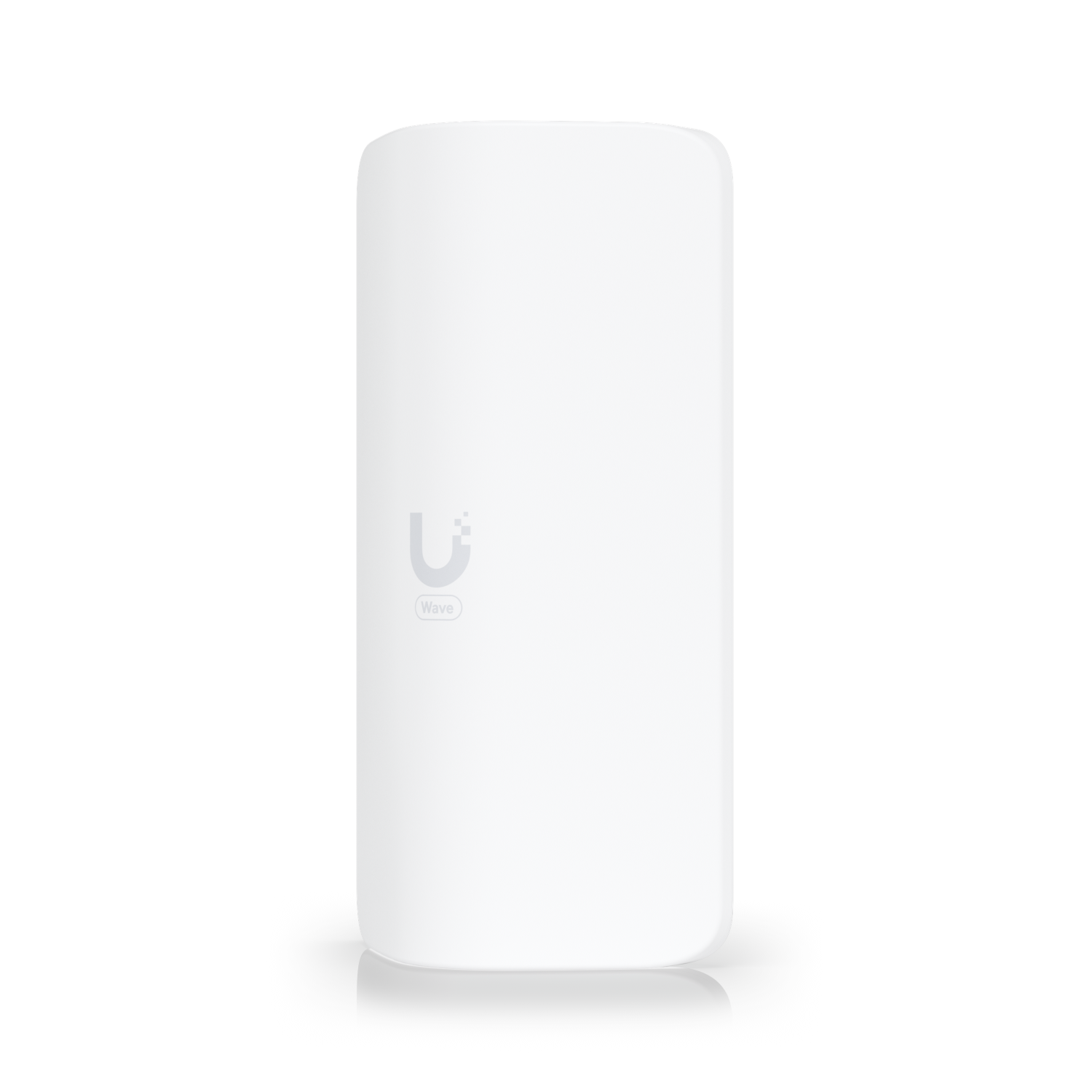

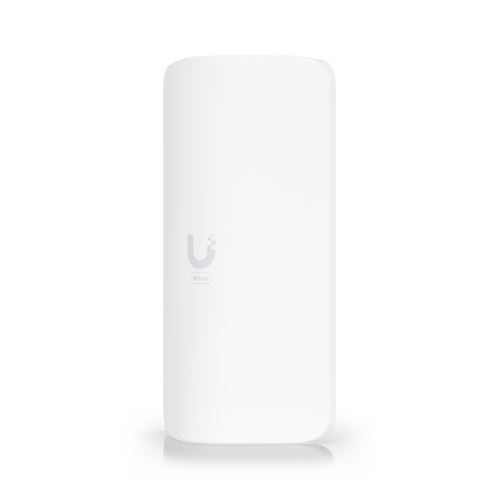

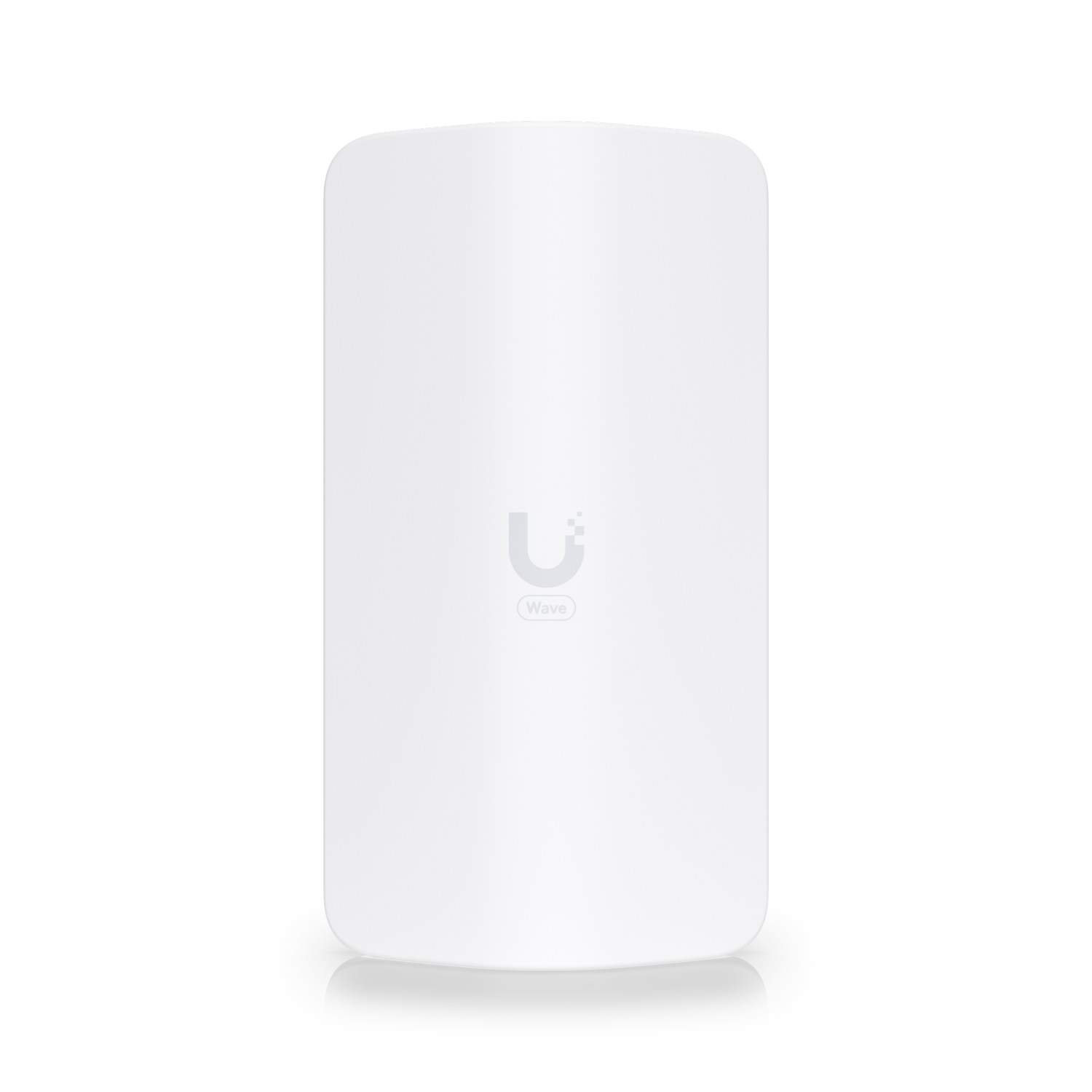

Ubiquiti Wave Access Point (Wave-AP) - 60GHz  + 5GHz PTMP Access Point

Key Features

• 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput

•  5 GHz 800+ Mbps weather-resistant backup radio

•  30° sector coverage

•  1x 2.5 GbE & 1x 10G SFP+ Port

• 31 client capacity:

  • Wave Long-Range (8 km link range)

  • Wave Nano (5 km link range)

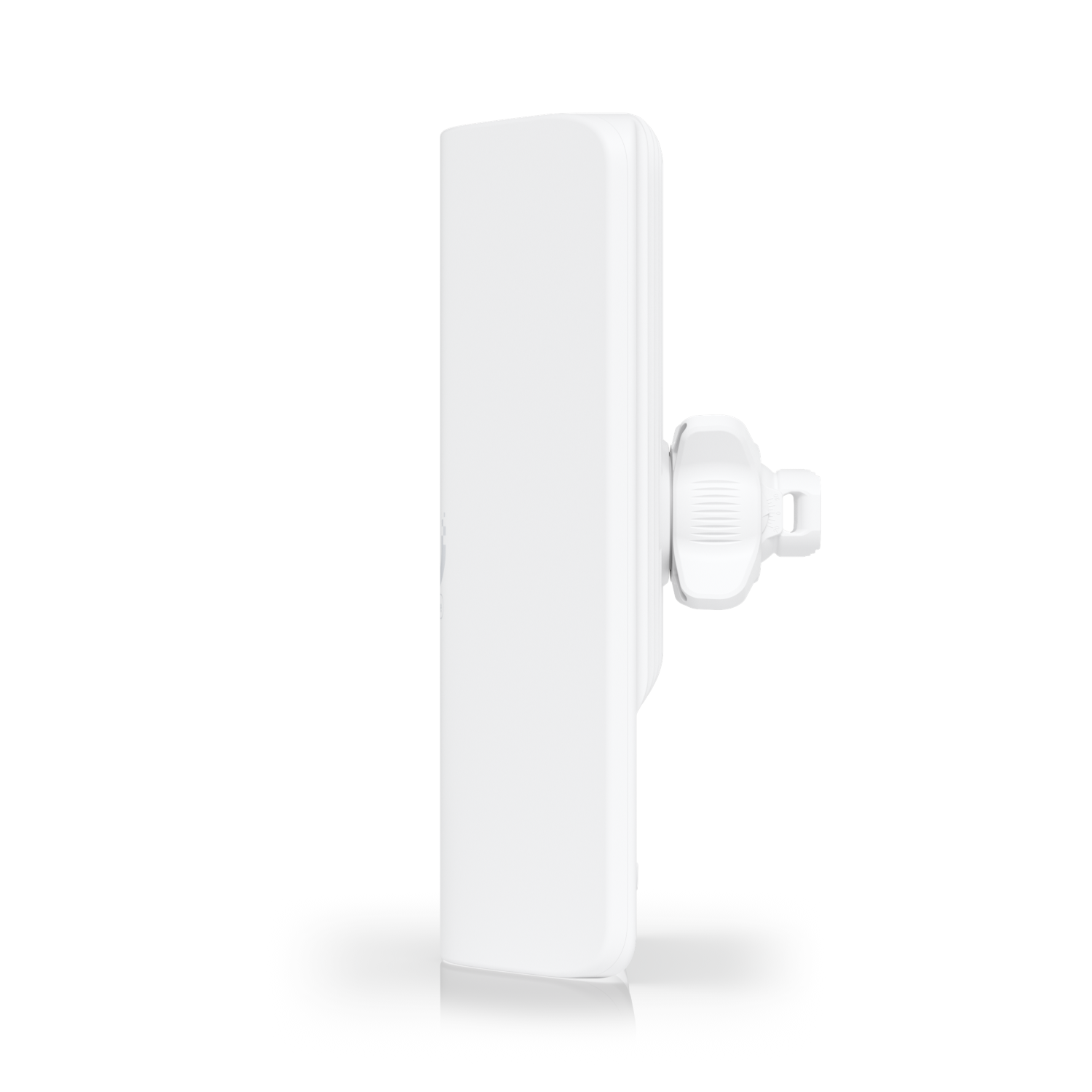

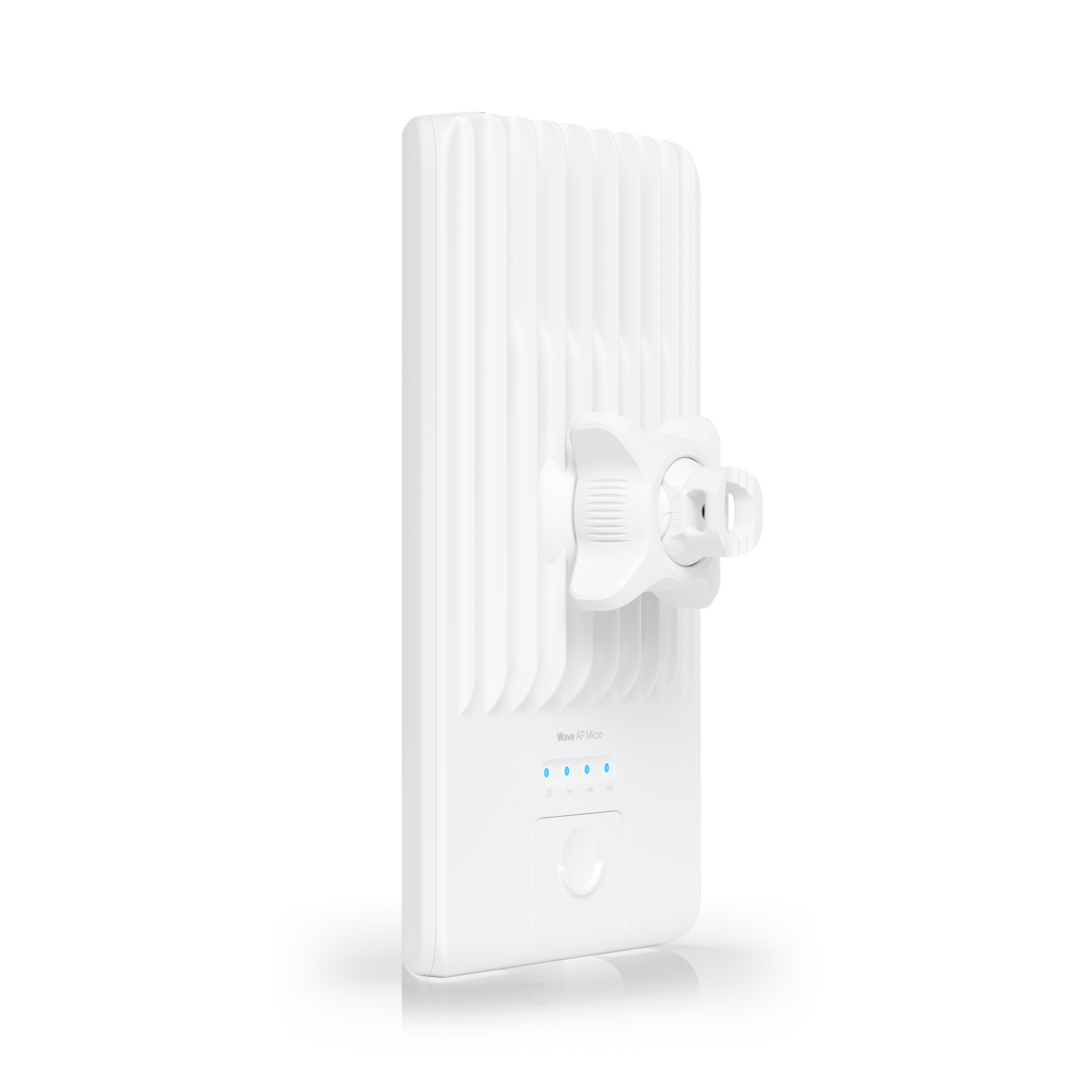

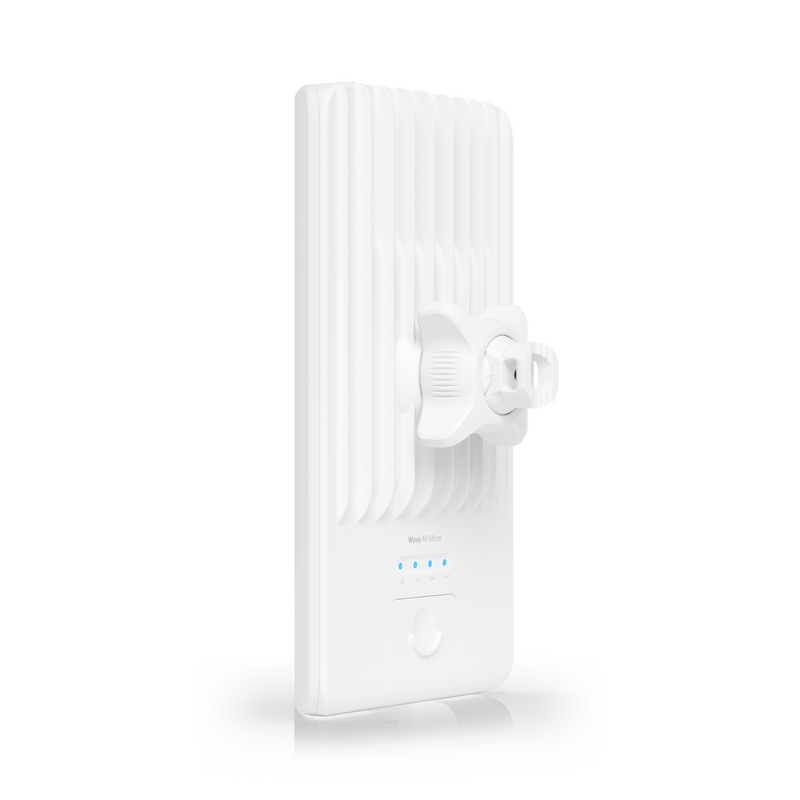

• Precision alignment mount

• Integrated GPS & Bluetooth

Usage

•

  Transform your WISP network with the Ubiquiti UISP Wave-AP. This state-of-the-art 60 GHz Point-to-MultiPoint (PtMP) Access Point is designed to provide dependable, fiber-like speeds wirelessly, significantly enhancing the capacity and performance of your service area.

• Built on Ubiquiti's exclusive Wave Technology, the Wave-AP serves as the essential infrastructure required to deliver the next generation of multi-gigabit internet access to your subscribers.

• The Wave-AP is capable of achieving a total aggregated throughput of up to 5.4 Gbps (2.7 Gbps Duplex) utilizing the 60 GHz band, exceeding the capabilities of conventional WISP equipment.

• The Wave-AP  incorporates an integrated 5 GHz Wi-Fi 6 (802.11ax) radio that functions as an automatic, weather-redundant link. This guarantees uninterrupted service and maximum uptime, even in the event of heavy rain fade.

• The Wave-AP allows for up to 15 concurrent clients (expandable to 31 with future firmware) across a 30° sector coverage area with its built-in 24 dBi high-gain antenna.

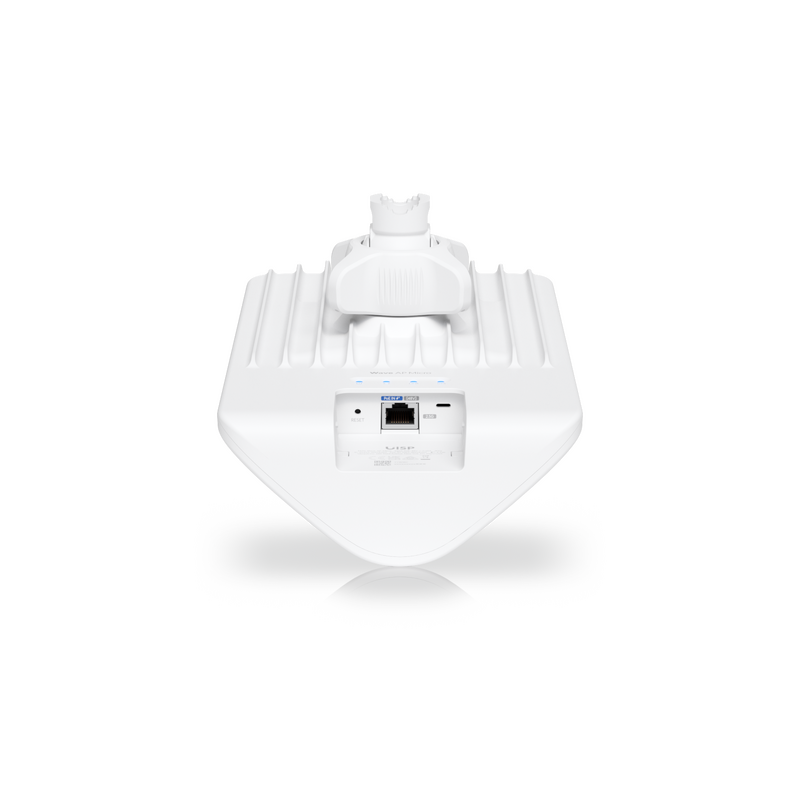

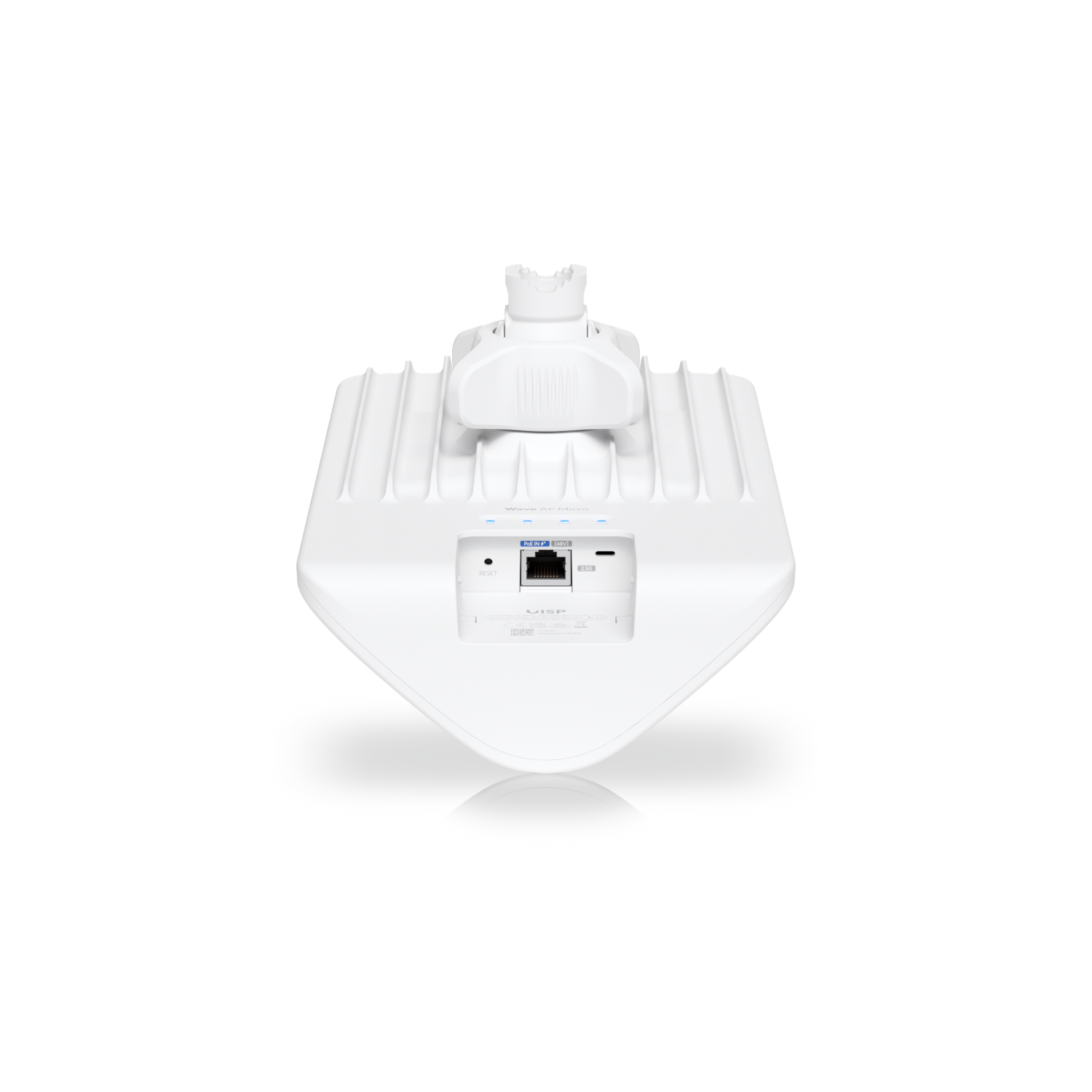

• The Wave-AP is equipped with a 10G SFP+ port and a 2.5GbE RJ45 port, prepared to meet the extreme throughput requirements of the device and your expanding network.

• Integrated GPS supports location tracking and link planning within the UISP dashboard.
