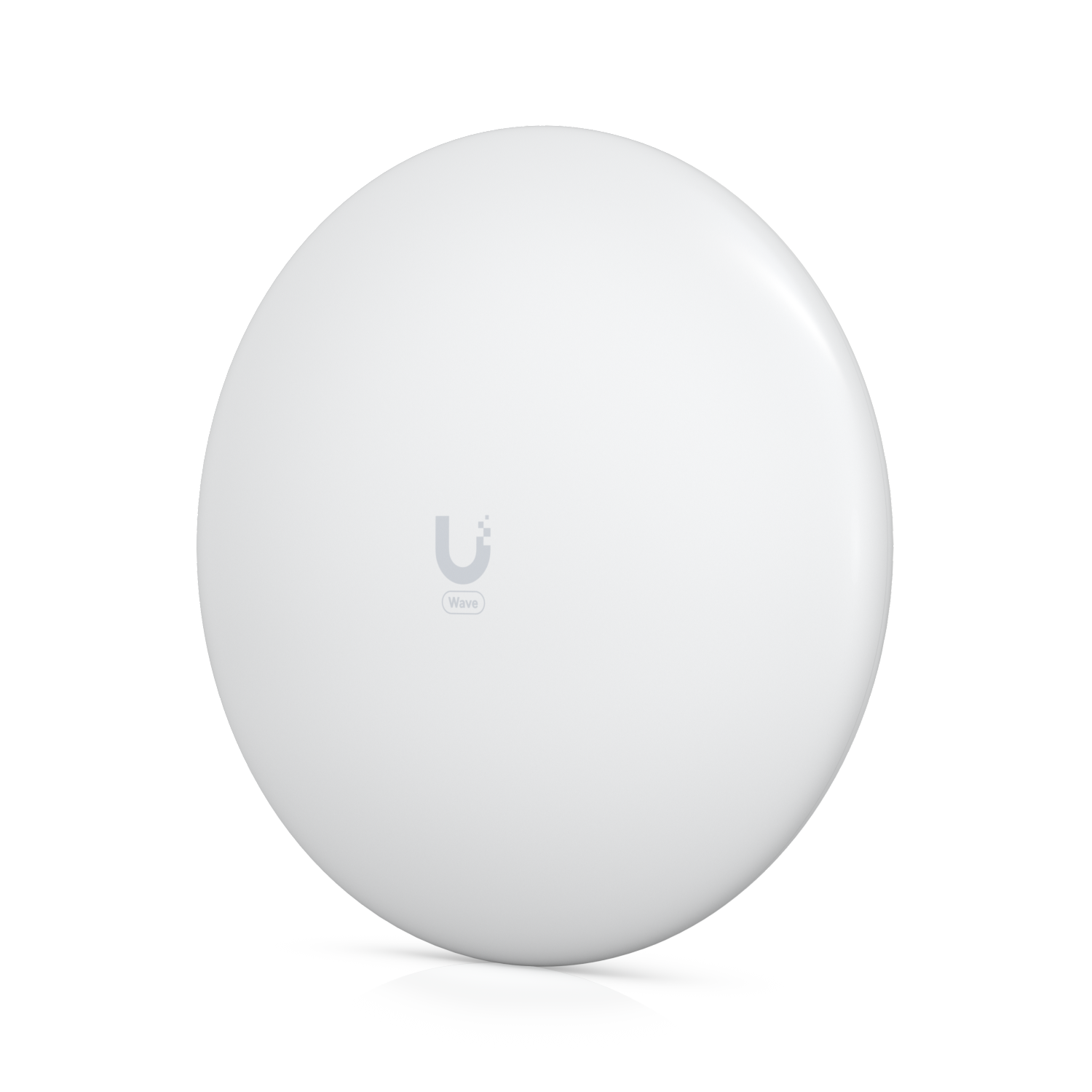

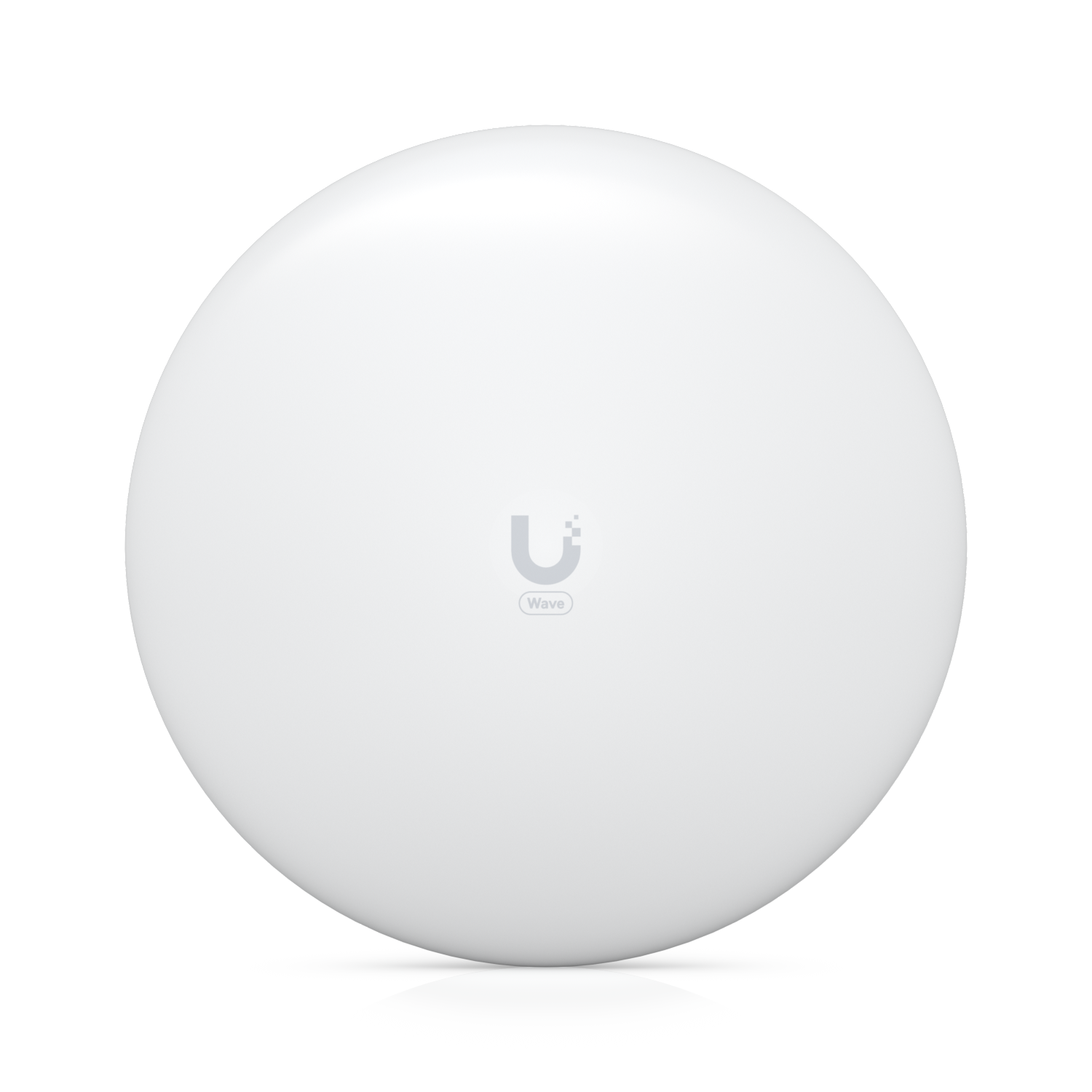

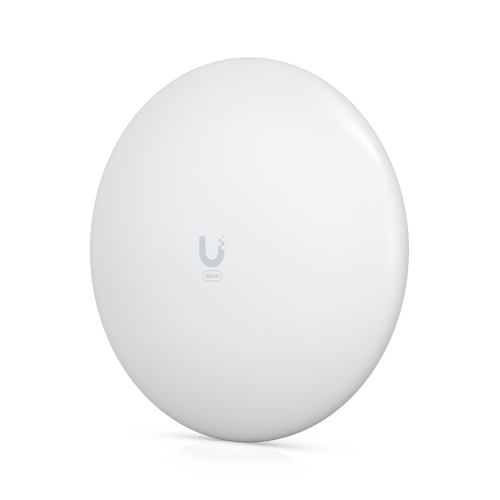

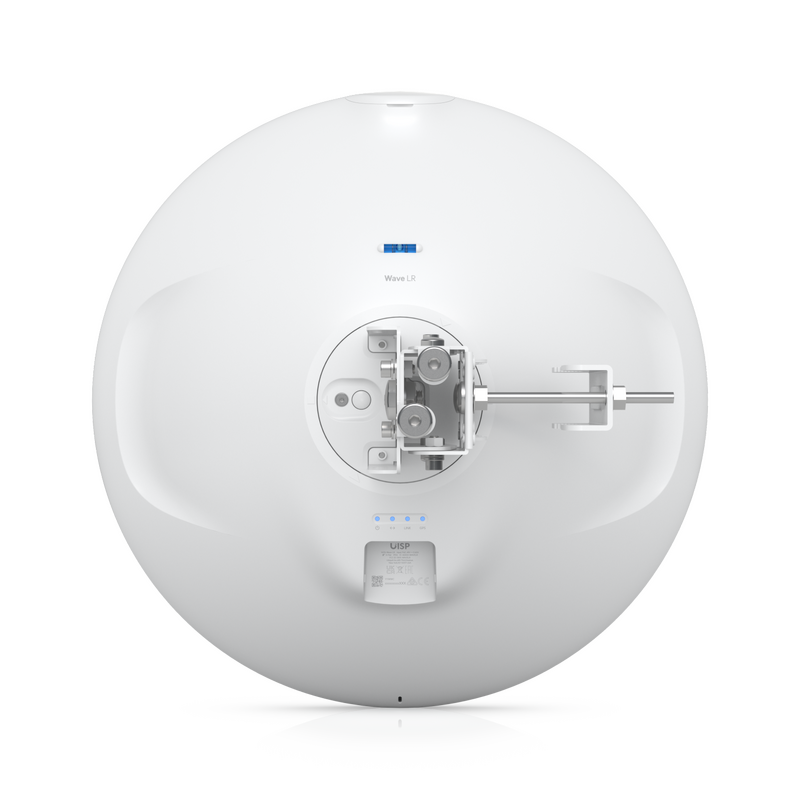

Ubiquiti Wave Long Range (Wave-LR) - 60GHz  + 5GHz PTMP & PTP Station



Key Features

  • Up to 8km link range

  •  5GHz Back Up Radio

  • 2 Gbps max. throughput

  • (1) GbE Port

  • Adjustable Pole Mount Included

  • Integrated GPS Antenna



Usage

  • The Ubiquiti Wave-LR  is an advanced 60 GHz station specifically engineered for Wireless Internet Service Providers (WISPs).

  • The Wave-LR serves as a robust Customer Premises Equipment (CPE) device within a Point-to-Multipoint (PtMP) configuration, linking client sites to a central Wave Access Point across extensive distances. By leveraging the 60 GHz millimeter-wave spectrum, the Wave-LR avoids the crowded 5 GHz frequency bands typically utilized by conventional Wi-Fi, enabling fiber-like speeds wirelessly.

  •

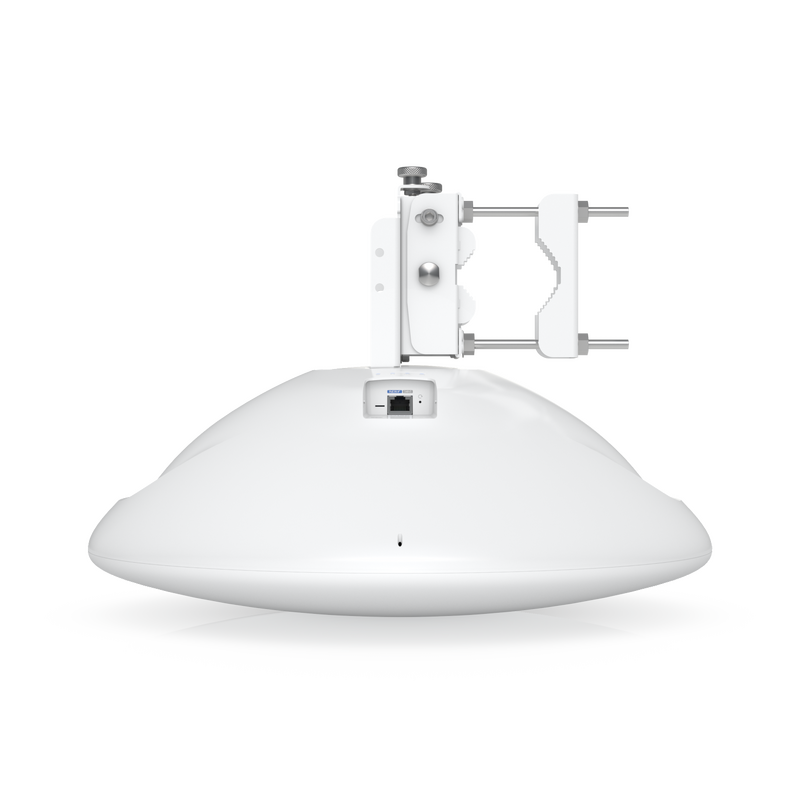

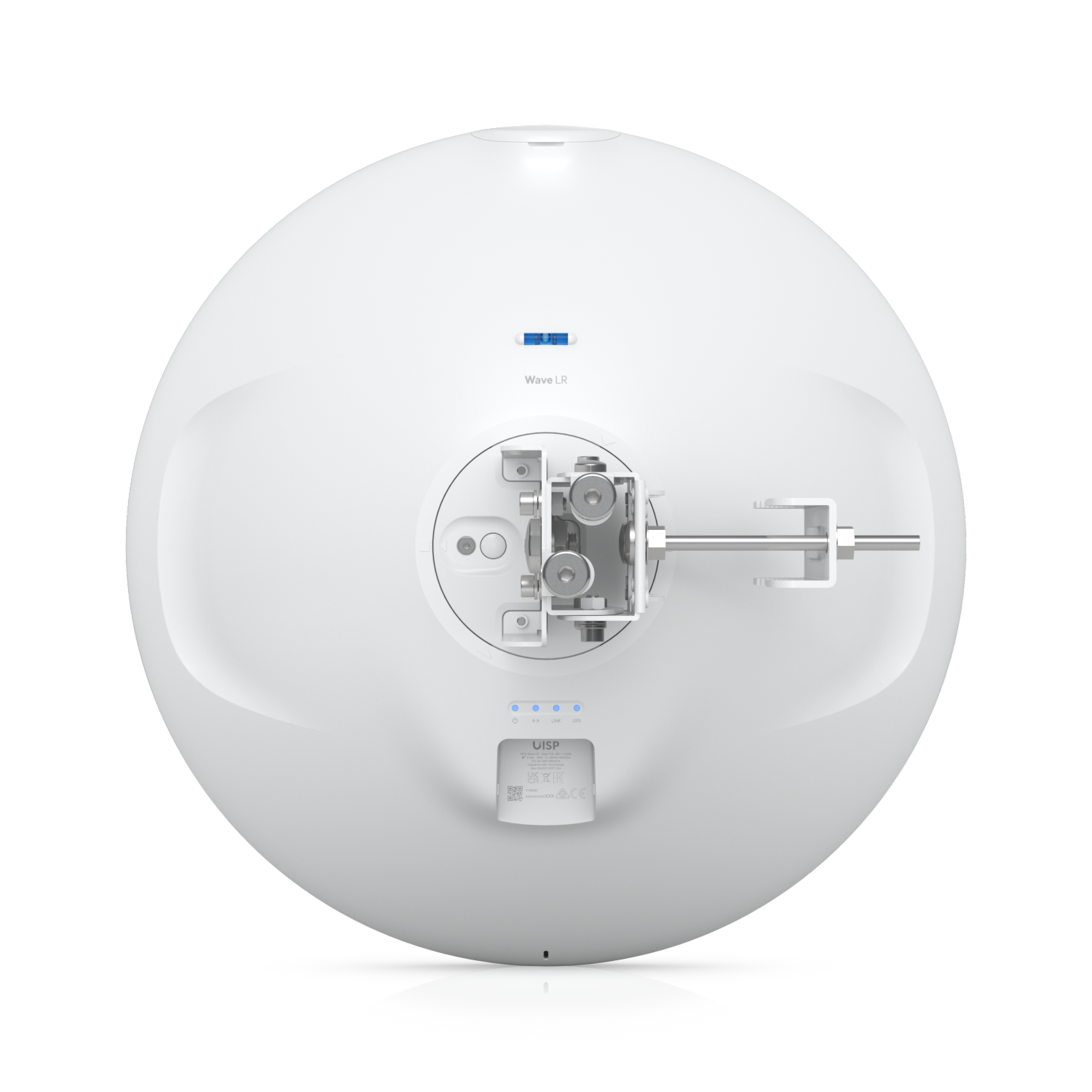

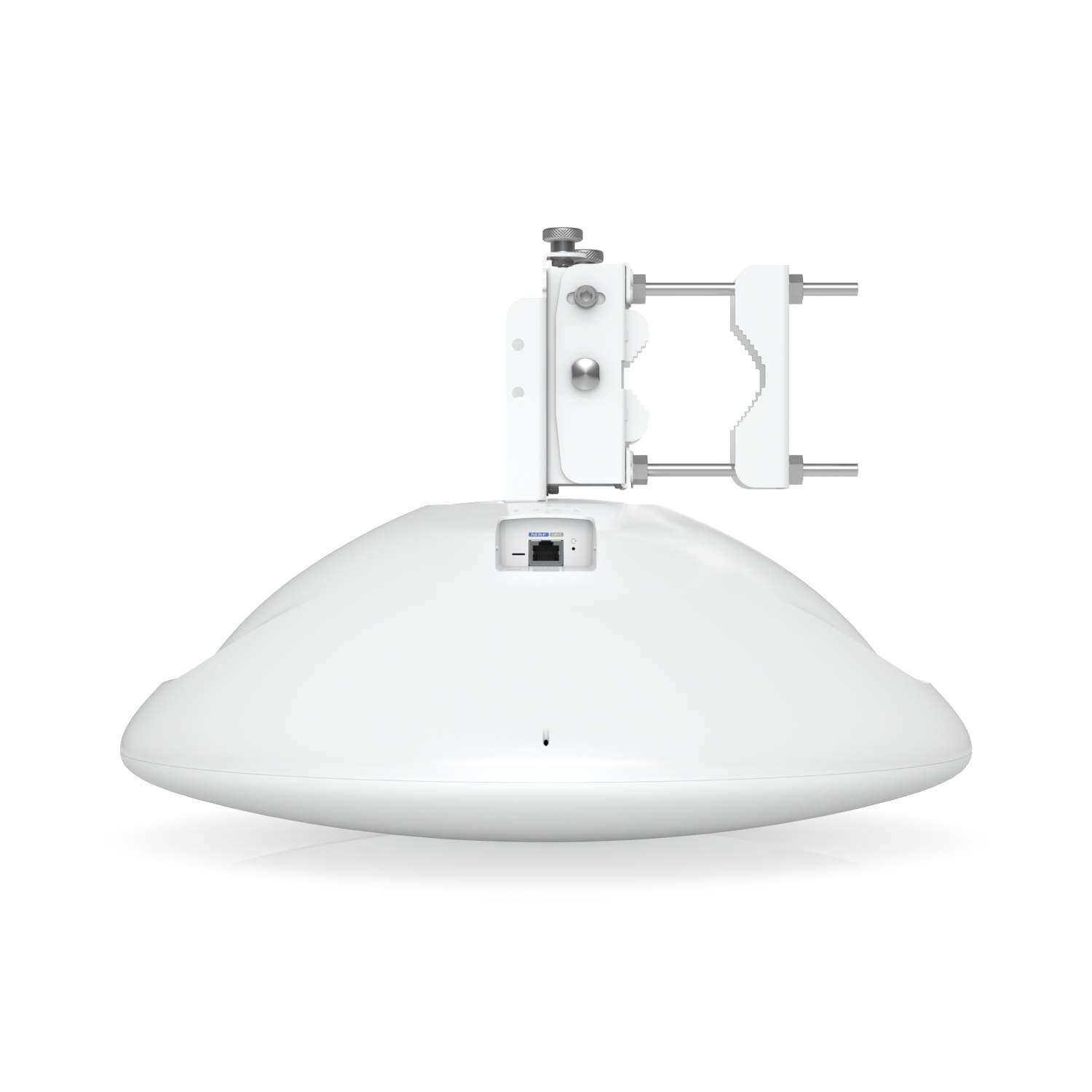

    Given that 60 GHz beams are exceptionally narrow (similar to lasers), precise aiming is essential. The Wave-LR is equipped with a precision alignment mount that enables installers to adjust the azimuth and elevation for optimal signal quality.

  • The Wave-LR features a high-precision GPS for tracking location and mapping within the UISP dashboard. The built-in Bluetooth radio facilitates straightforward setup and configuration directly from a smartphone via the UISP Mobile app.

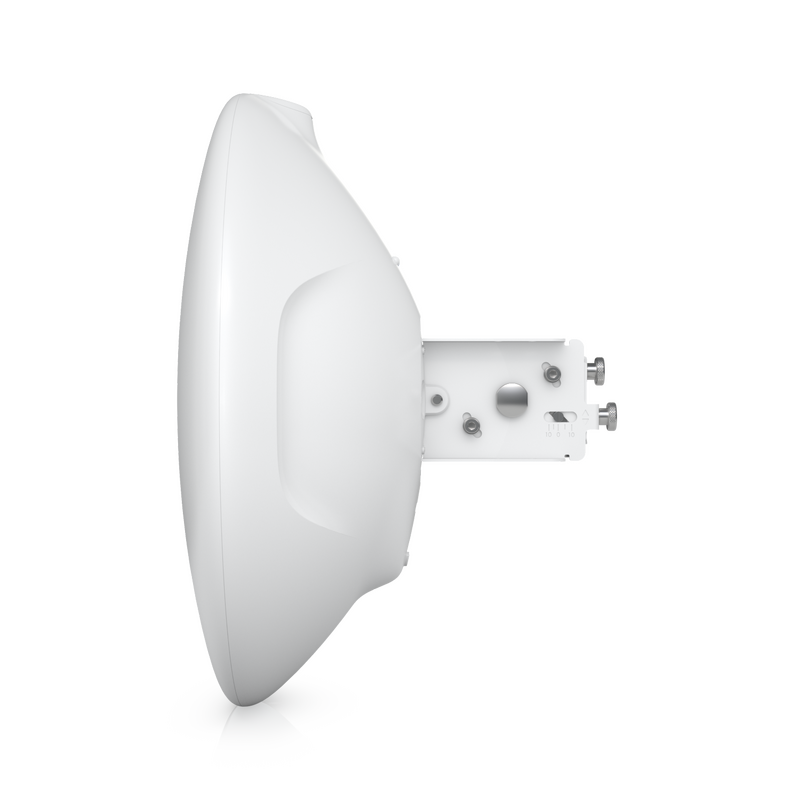

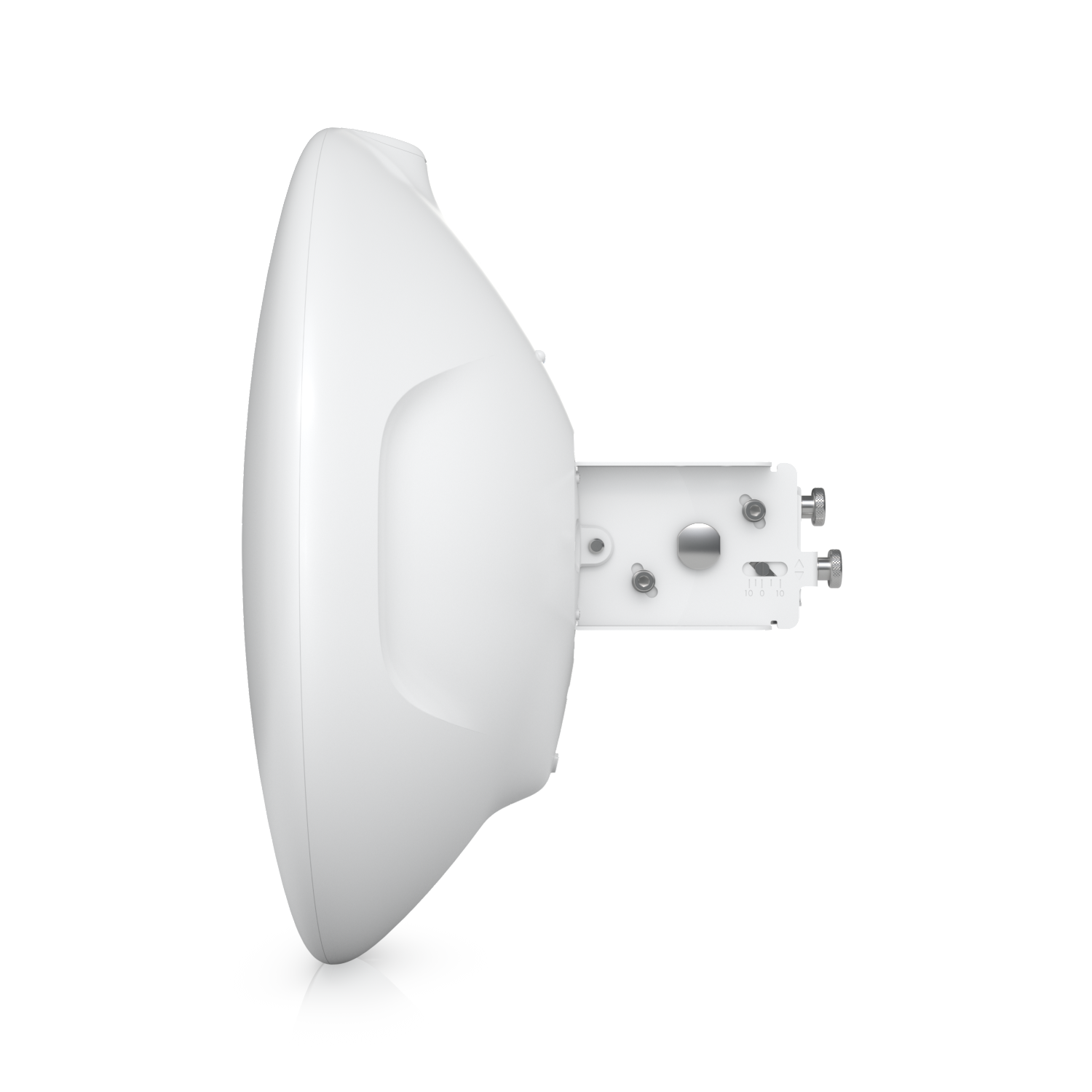

  • The Wave-LR device is encased in UV-stabilized plastic and comes with a galvanized steel mount, engineered to endure wind loads of up to 286 N at a speed of 200 km/h.



Read More



(Wave-LR)

SKU Wave-LR
Brand Ubiquiti
Shipping Weight 19.0000kg
Shipping Width 0.950m
Shipping Height 0.550m
Shipping Length 0.630m
Shipping Cubic 0.329175000m3
