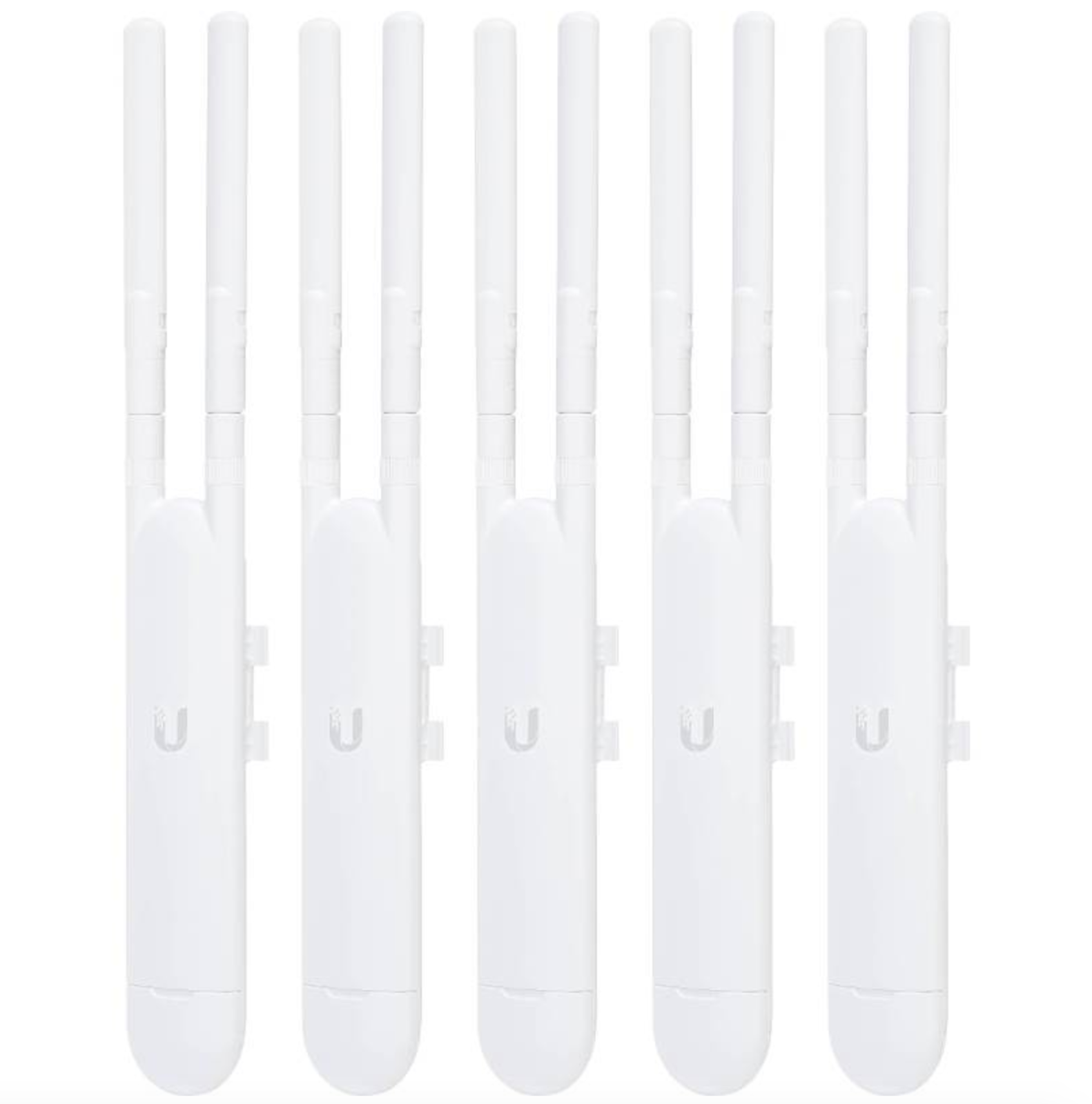

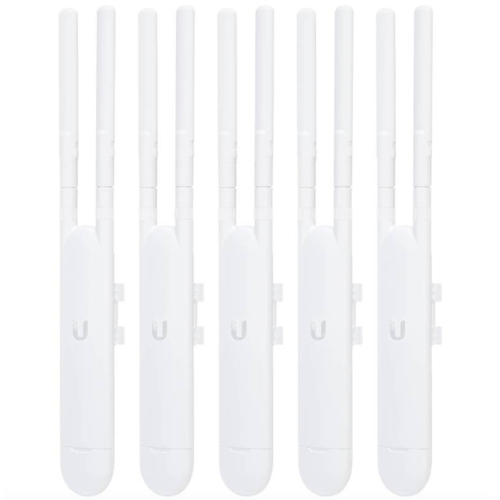

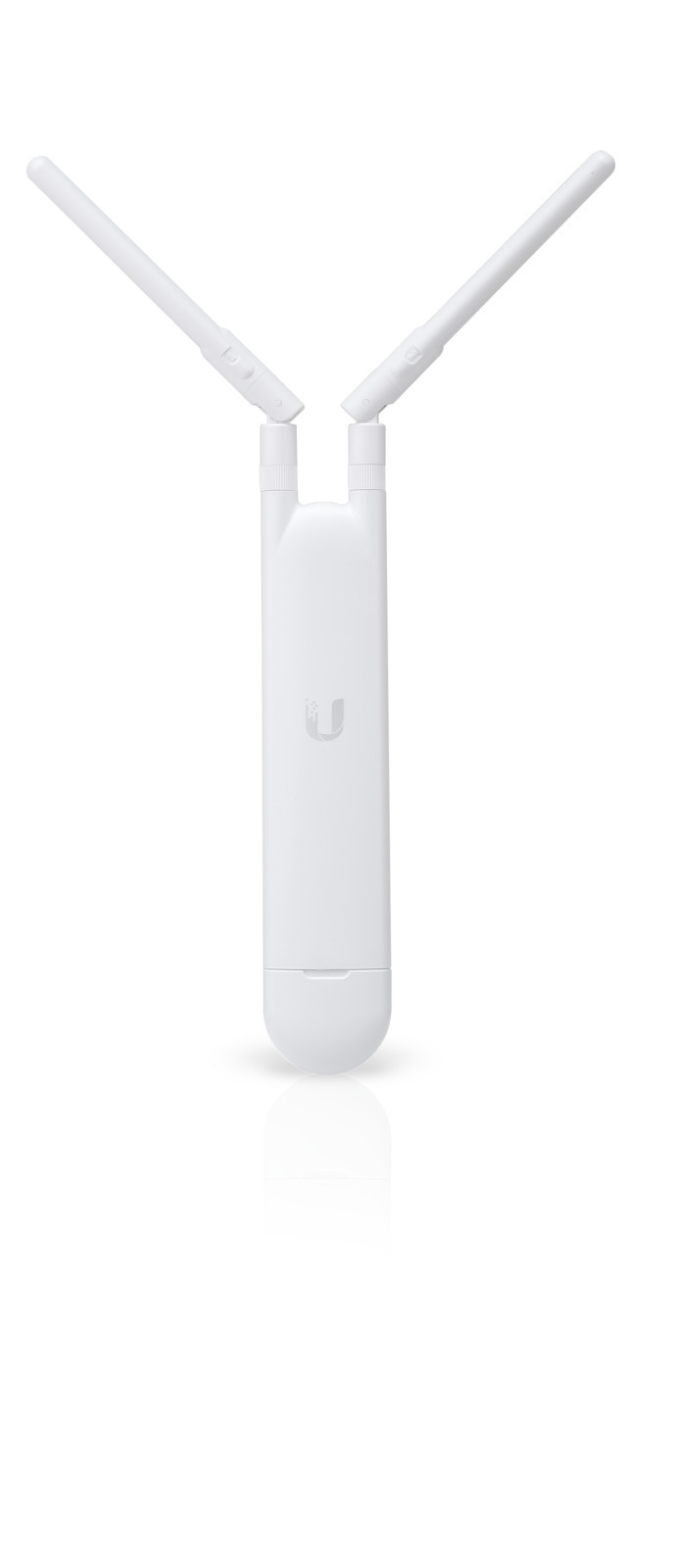

Ubiquiti 802.11 AC indoor/Outdoor AP with Plug & Play Mesh



Key Features



  • High-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point with Plug & Play Mesh

  • Fast mount pole/wall Kit

  • Simultanious 2x2 MIMO 2.4/5GHz

  • Designed specifically for UniFi Mesh.



Usage



  • The UniFi AC Mesh was designed to pair seamlessly with Ubiquiti UniFi networks to create high speed wide-area Wi-Fi coverage

  • The small form factor, just slightly larger than a pen, makes this device easy to deploy virtually anywhere

  • Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System

  • The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1167 Mbps

  • It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customised pattern shaping.

  • This 5-Pack does not contain Power Over Ethernet adaptors



Specifications / Frequency



Electrical Specifications



  • Power Method:

    • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

    • 802.3af Alternative A (Pairs 1,2+; 3,6 Return)

  • Power Supply: 24V, 0.5A Gigabit PoE Adaptor (Not Included)

  • Supported Voltage Range: 44 to 57VDC

  • Power Save: Supported

  • Max. Power Consumption: 8.5W

  • Max. TX Power:

    • 2.4 GHz 20dBm

    • 5 GHz 20dBm

  • Throughput Speeds:

    • 2.4 GHz 300Mbps

    • 5 GHz 866.7 Mbps

  • Range: 183m (600 ft) Antennas: (2) External Dual-Band Omni Antennas Antenna Gain:

    • 2.4 GHz: 3dBi

    • 5 GHz: 4dBi

  • Wi-Fi Standards: 802.11a/b/g/n/ac

  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

  • BSSID: Up to Four per Radio

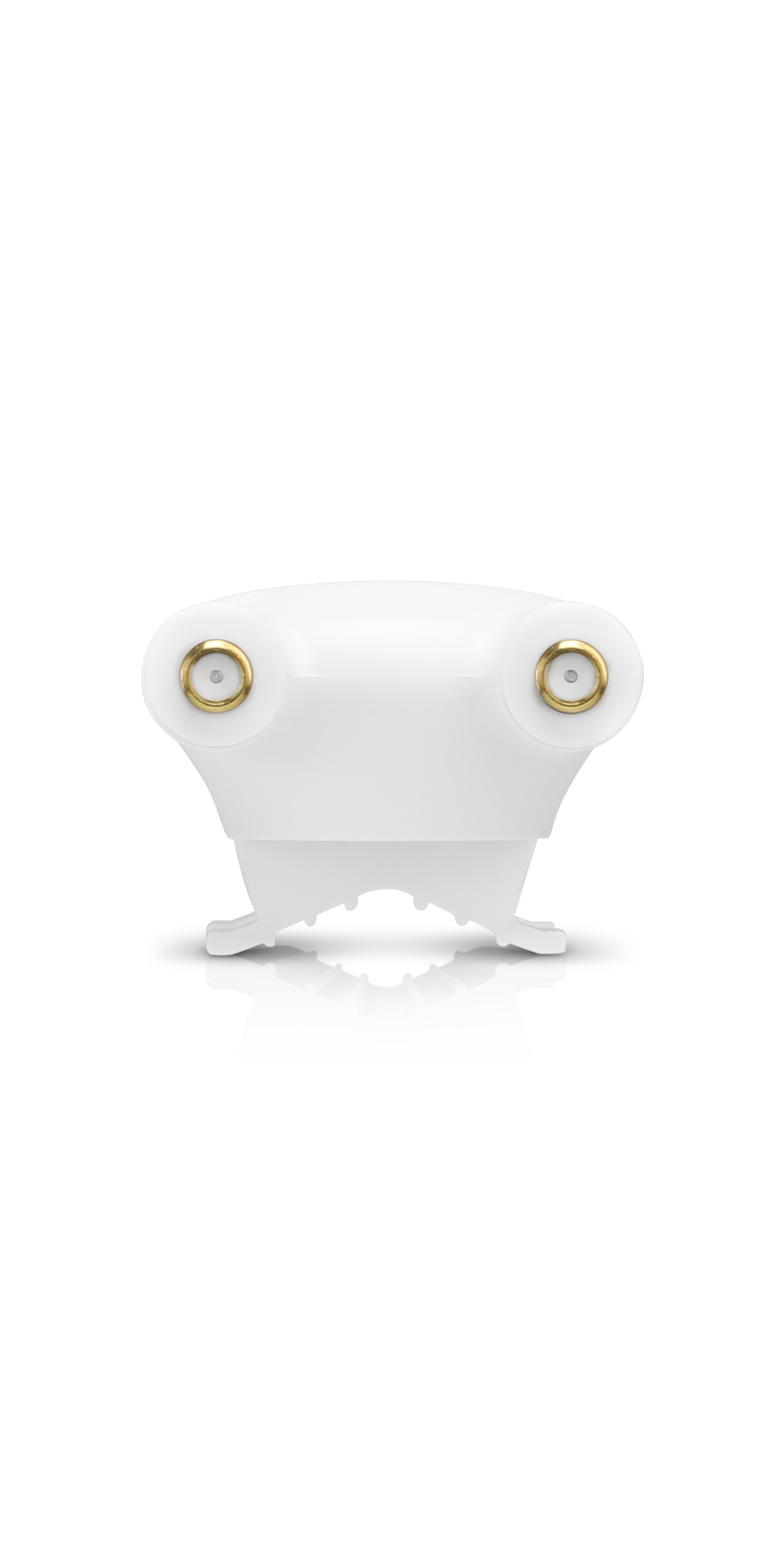

  • Antenna Connectors: RP-SMA



Mechanical/Environmental Specifications



  • Dimensions: 353 x 46 x 34.4 mm

  • Weight: 152 g

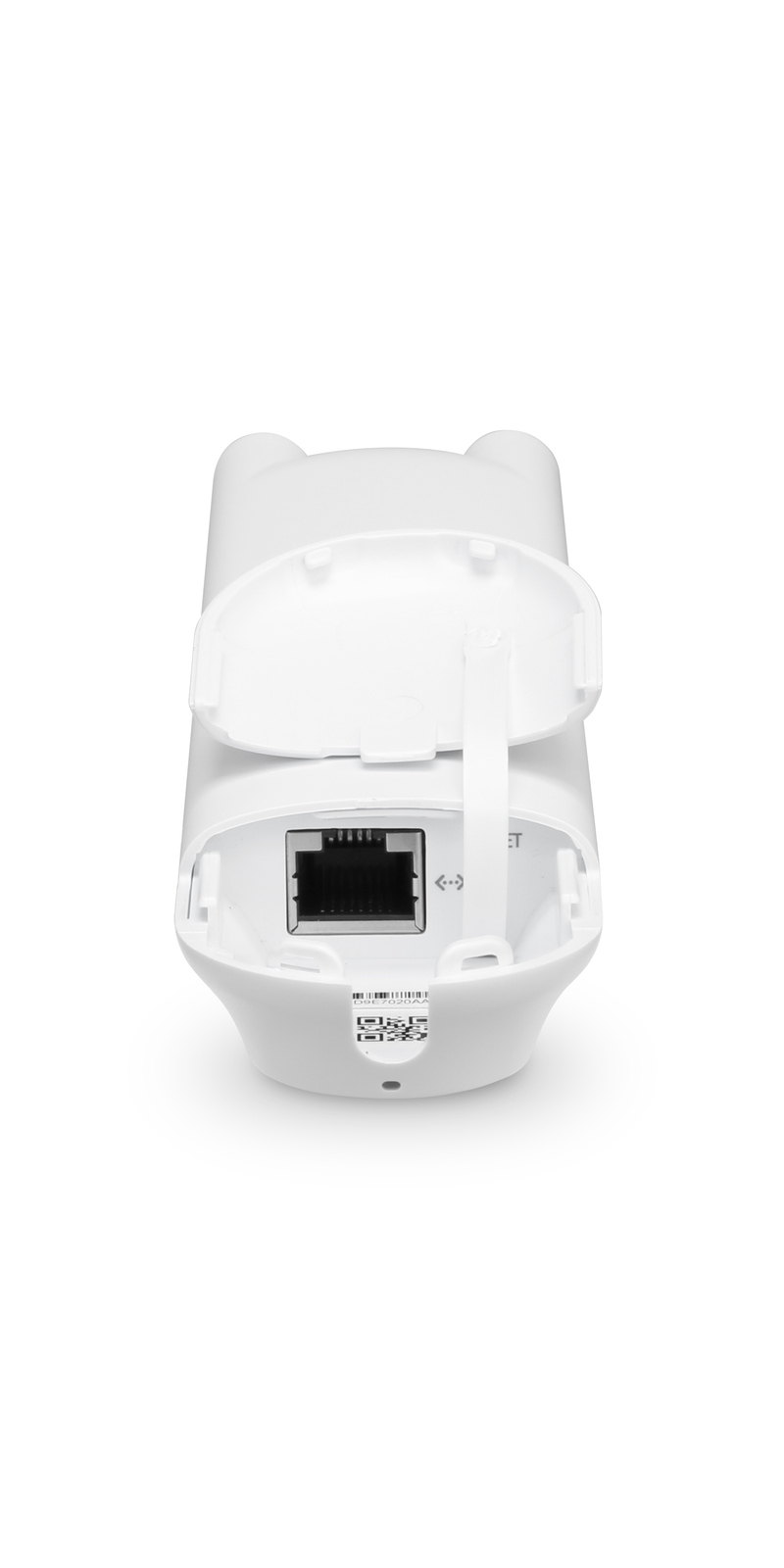

  • Networking Interface (1) 10/100/1000

  • Ethernet Port Buttons: Reset

  • Mounting: Wall/Pole/Fast-Mount (Kits Included)

  • Operating Temperature: -30 to 70 degrees Celsius

  • Operating Humidity: 5-95% Non-condensing

  • Certifications: CE, FCC, IC



Read More



(UAP-AC-M-5)

SKU UAP-AC-M-5
Brand Ubiquiti
Shipping Weight 2.3000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.005000000m3
