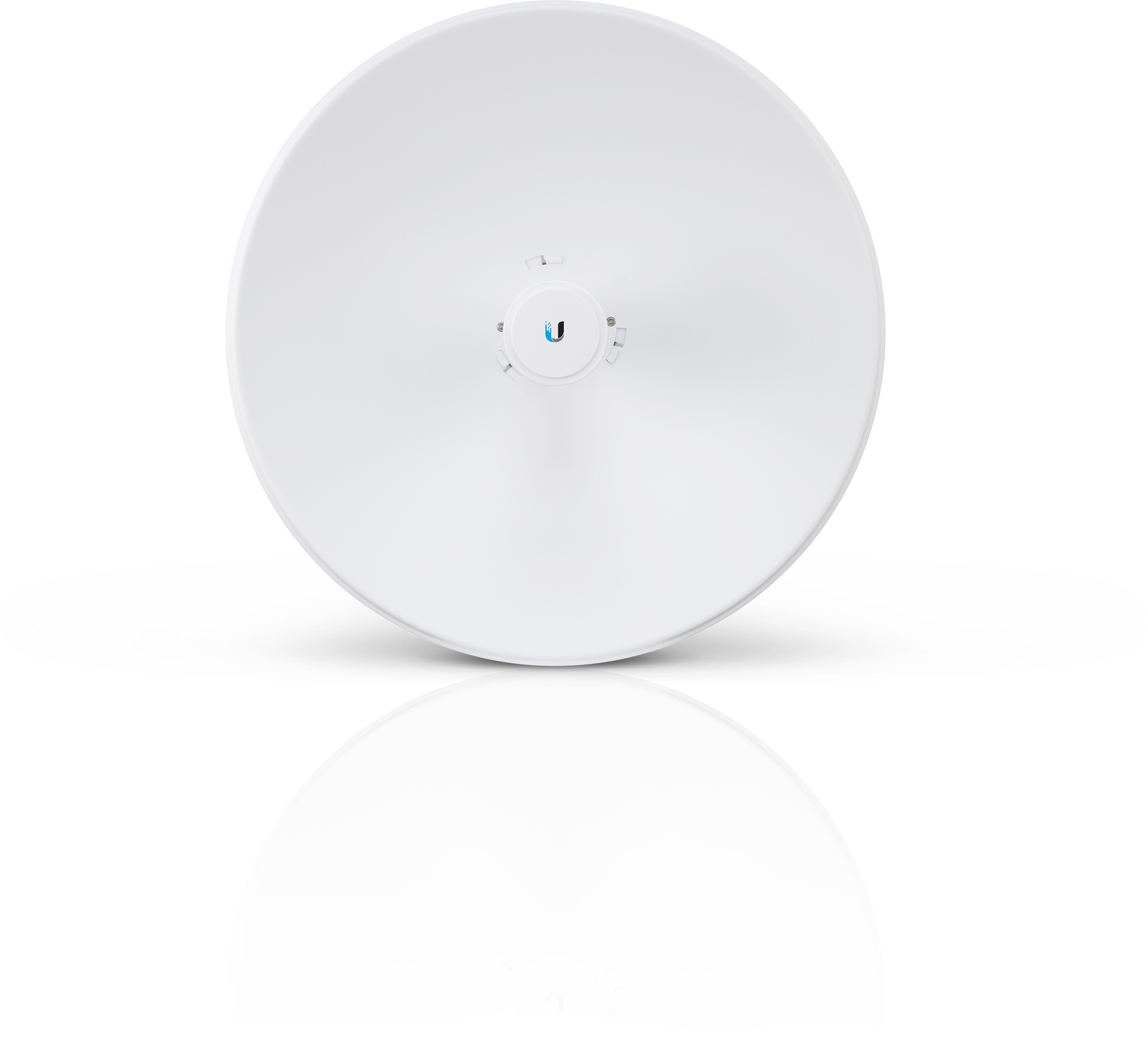

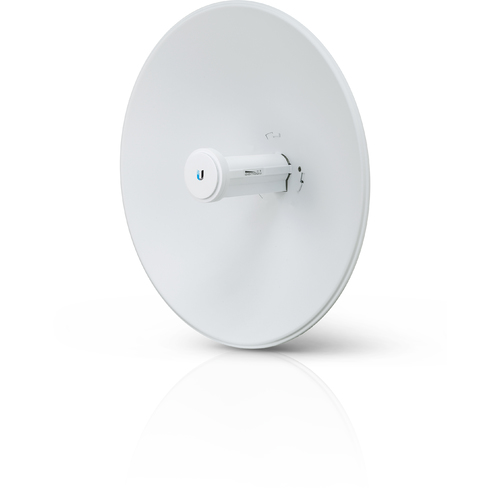

Ubiquiti PowerBeam AC M5 450Mbps Point-to-Point Wireless Bridge


Key Features


  • Connect remote locations on one network

  • Share Internet connection between buildings, remote sites, etc.

  • Indistinguishable from Ethernet cable

  • 200mW output power, 2x2 MIMO operation

  • Gigabit Ethernet interface

  • 25dBi antenna gain

  • Up to 40MHz channel width in PtMP, 80MHz channel with in PtP

  • Includes 24VDC POE injector and Australian 240V AC adaptor.


New Model


  • The new PowerBeam AC M5 Gen2 incoperates 802.11ac technology providing 256QAM modulation resulting in data rates as high as 450Mbps @ >65dBm, gigabit Ethernet, and AirMax packet prioritisation technology for superior latency reduction in your multi-point environment

  • Previous PowerBeam and NanoBeam models were based on 802.11n technology which provided up to 64QAM (270Mbps, but often limited by their 10/100Eth interface to 100Mbps).


Improved Noise Immunity


  • The PowerBeam AC Gen2 directs RF energy in a tighter beamwidth

  • With the focus in one direction, the PowerBeam AC blocks or spatially filters out noise, so noise immunity is improved

  • This feature is especially important in an area crowded with other RF signals of the same or similar frequency.


High Speed Network Sharing


  • The Ubiquiti PowerBeam is an ideal all-in-one solution for bridging networks or sharing broadband across a long distance (up to 25km)

  • To install, place the units at either end of the network and connect both to Ethernet cables - connect the first unit into your modem/router at location one, and the second into an Ethernet switch or WiFi access point at the second location

  • This equipment is ideal for sharing an Internet connection over long distances, perfect for farms and agricultural facilities.


ubiquiti nanobridge m5 setup instructions installation diagram


  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

  • Management of the Ubiquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.


Ready to Install


  • This unit has all networking hardware and surge protection integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment

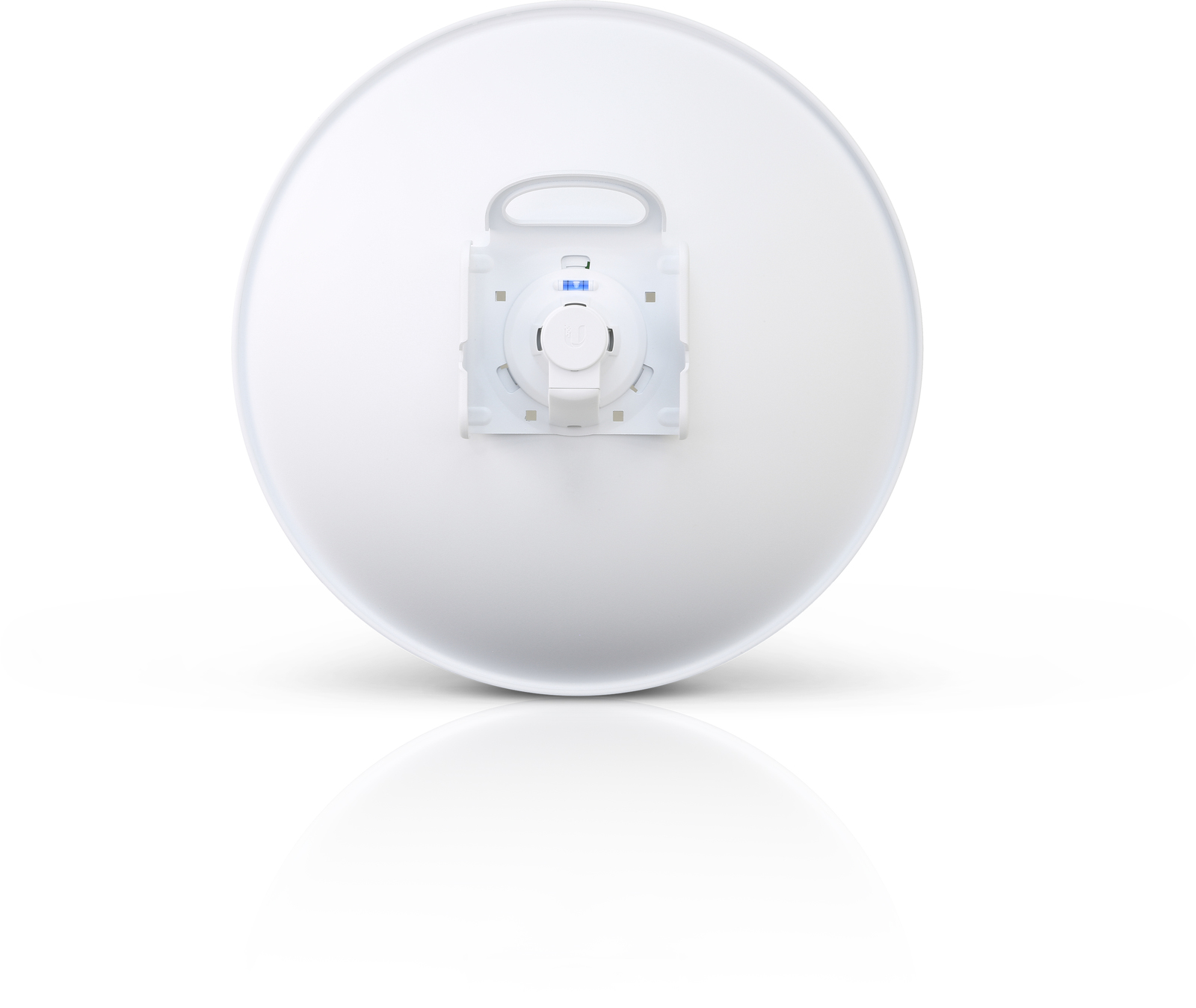

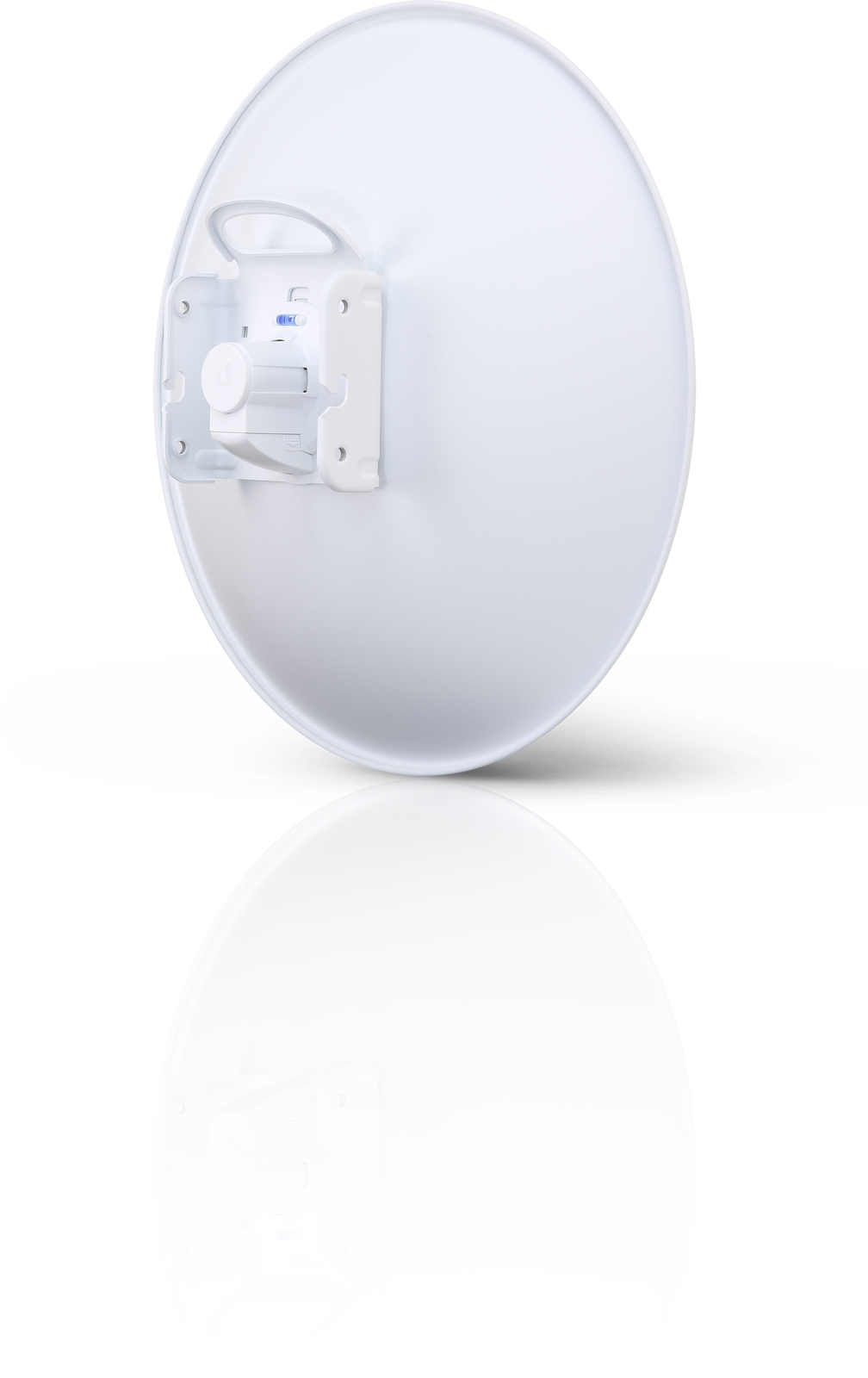

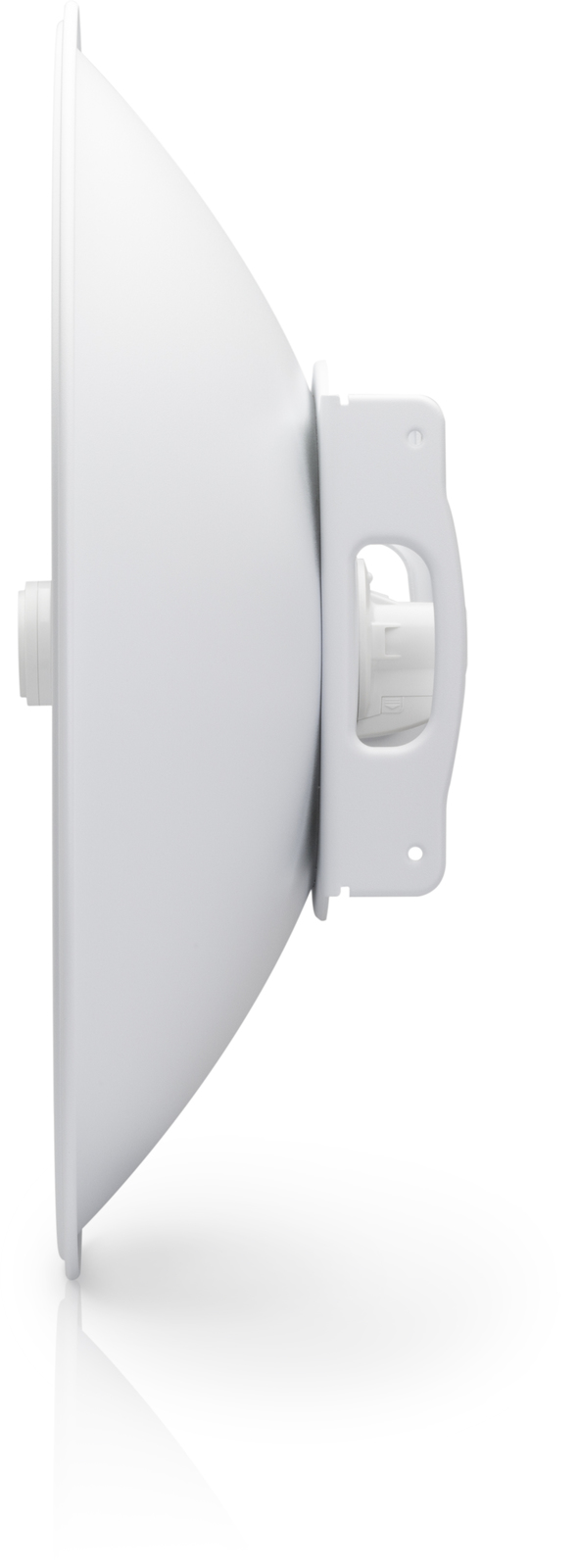

  • For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the PowerBeam, and the other into the PoE Injector (which is plugged into AC power)

  • This allows one cable to both power the unit and also carry network traffic

  • We recommend using Cat6 Outdoor UV Shielded Cable with this unit.


Read More



Setup Guides (Click Image)
long range wifi client using ubiquiti nano as antennawide area wifi access point setup ubiquiti
direct point to point wireless bridge ubiquiti nanostation m2 m5point to multipoint wireless bridge ubiquiti nano station access point WDS
point to point link with wifi access ubiquiti airos


Brand Ubiquiti
Shipping Weight 6.0000kg
Shipping Width 0.520m
Shipping Height 0.180m
Shipping Length 0.520m
Shipping Cubic 0.048672000m3
