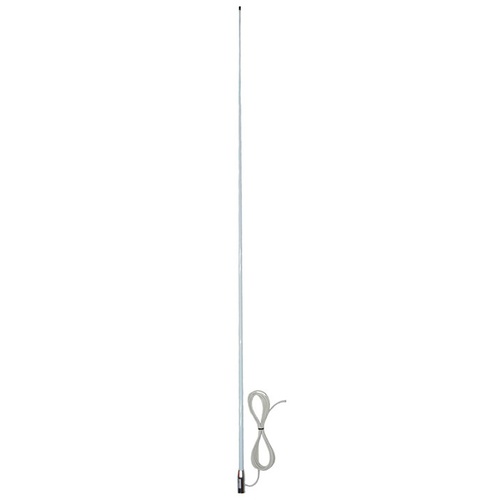

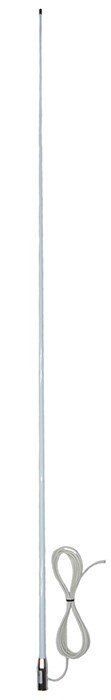

ZCG Scalar 8.1dBi Deck Mounted Marine Antenna - 2.4m - Suits Telstra 4Gx & Optus 4G+

Key Features

• 5m white RG58 cable with FME Female connector

• Full chromed brass ferrule

• Supplied with toughened plastic MM1 Marine Deck Mount

• All white fiberglass construction

• Australian made.

Usage

• Stay connected on the water by using this antenna with your mobile phone and wireless broadband modem

• With an 8.1 dBi gain, the ZM24-4Gx Optus & Telstra 4G marine antenna offer the maximum gain and reception range practical in a broadband cellular mobile phone antenna

• The single piece white fibreglass radome stands 2.4 metres tall, identical to other models in the marine range

• These antenna are matched internally by a unique transforming printed circuit board

• All components used are of the highest quality to ensure long term survival in the harsh marine environment

• These antennas will deliver reliable performance for many years

• The MM1 folding deck mount supplied as standard is constructed from toughened plastic

• This base folds down in two directions and also swivels in the opposite plane by loosening the stainless steel pivot bolt

• This versatility allows the antenna to be mounted in a variety of positions on any flat surface and at any angle using four screws or bolts.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4Gx™ (700MHz)		8.1dBi
Optus 4G+™ (700MHz)		8.1dBi

Electrical Specifications

• Frequency Range: 700-788MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 30Watts

• Vertical Beamwidth: 13°

Mechanical/Environmental Specifications

• Construction: White fibreglass radome, chrome brass ferrule

• Cable: 5m white RG58 coaxial cable

• Connector: FME Female

• Temperature: -40°C +70°C

• Weight: 650g

• Height: 2.4m

• Mounting: MM1 deck mount (supplied).
