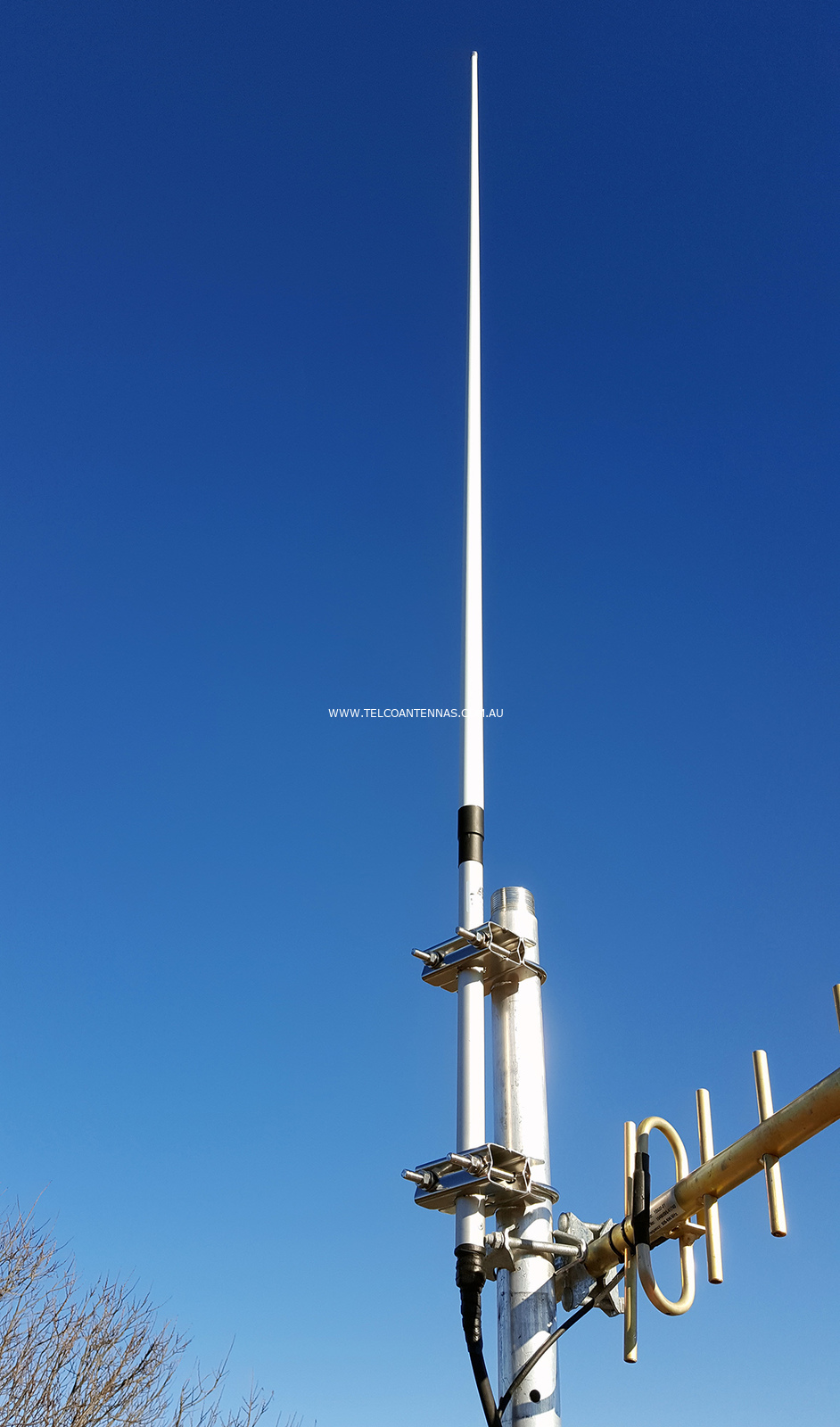

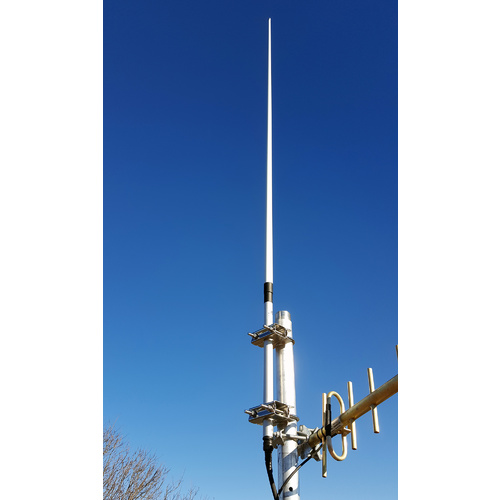

ZCG Scalar CM1600AM 8.1dBi Mast Mounted Marine & Base Station Antenna


Key Features


  • All white fibreglass construction

  • Tuned to 850 MHz Telstra Next-G

  • Stainless steel mount tube

  • Integrated N Female connector

  • Australian made.




  • Stay connected on the water by using this antenna with your mobile phone and wireless broadband modem

  • With 8.1 dBi gain, these mast mount models offer the maximum gain and reception range practical in a broadband omnidirectional cellular mobile phone base station antenna

  • The white fibreglass radome and stainless steel mount tube stands 2.4 metres tall

  • The antenna is matched internally by a unique transforming printed circuit board

  • The N-Female connector located at the base of the mount tube is rated for up to 20 Watts input power

  • This antenna is also often used as a fixed base-station antenna on machinery, temporary work sites, mining accommodation, and more

  • All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments

  • These antennas will deliver reliable performance for many years.


Specifications / Frequency


Network Compatibility
Telstra Next-G™ (850 MHz)
8.1 dBi


Electrical Specifications


  • Frequency Range: 825 to 890 MHz

  • Input Impedance: 50 Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 20 Watts

  • Vertical Beamwidth: 13°


Mechanical/Environmental Specifications


  • Construction: White fibreglass radome, stainless steel mount tube

  • Cable: None supplied

  • Connector: Integrated N Female

  • Temperature: -40°C +70°C

  • Weight: 0.7kg

  • Height: 2.4m

  • Mounting: 2 parallel clamps (not supplied)




N Flange panel mount connector


N Female Connector [pictured]


  • This antenna has an integrated N Female connector at the base of the mounting tube. There is no cable supplied.

A heads up!


over-size item symbol sign


  • This product is over 2m in length and must be sent by specialist freight companies

  • Understandably a 2m long cardboard tube can be easily damaged so this product is shipped in a custom made PVC enclosure

  • Due to the costs incurred shipping of this item is expensive, irrespective of whether we're shipping it to Sydney metro, or to Canada.
